Transaxle Center Bracket

Removal Procedure
1. Remove the center member from the vehicle.

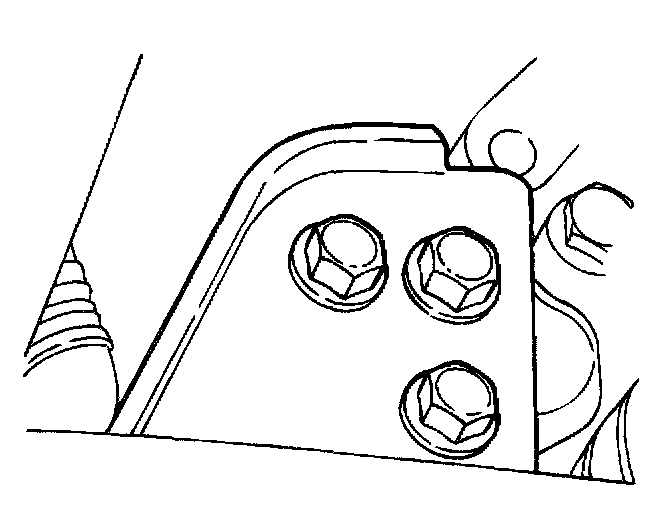

2. Remove the bolts that connect the transaxle center bracket to the transaxle.
3. Remove the transaxle center bracket.

Installation Procedure

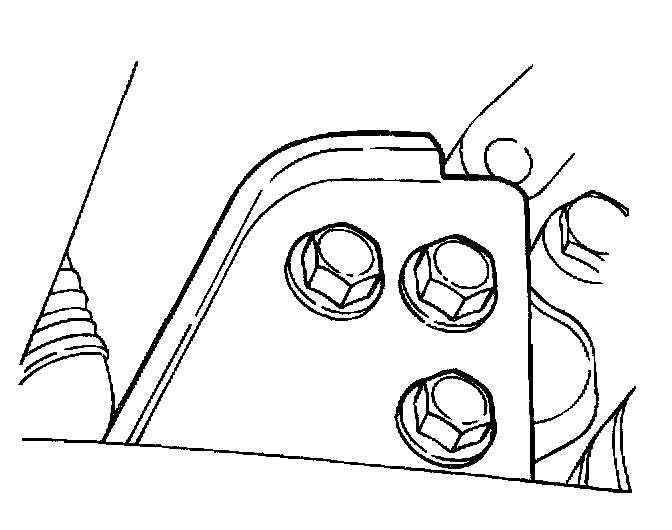

1. Install the transaxle center bracket to the transaxle with the bolts.





- Tighten the transaxle center bracket-to-transaxle bolts to 35 ft. lbs. (48 Nm).
2. Install the center member into the vehicle.
