Home >> Daewoo >> 2001 >> Leganza CDX L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Locations >> Harness Locations

Harness Locations

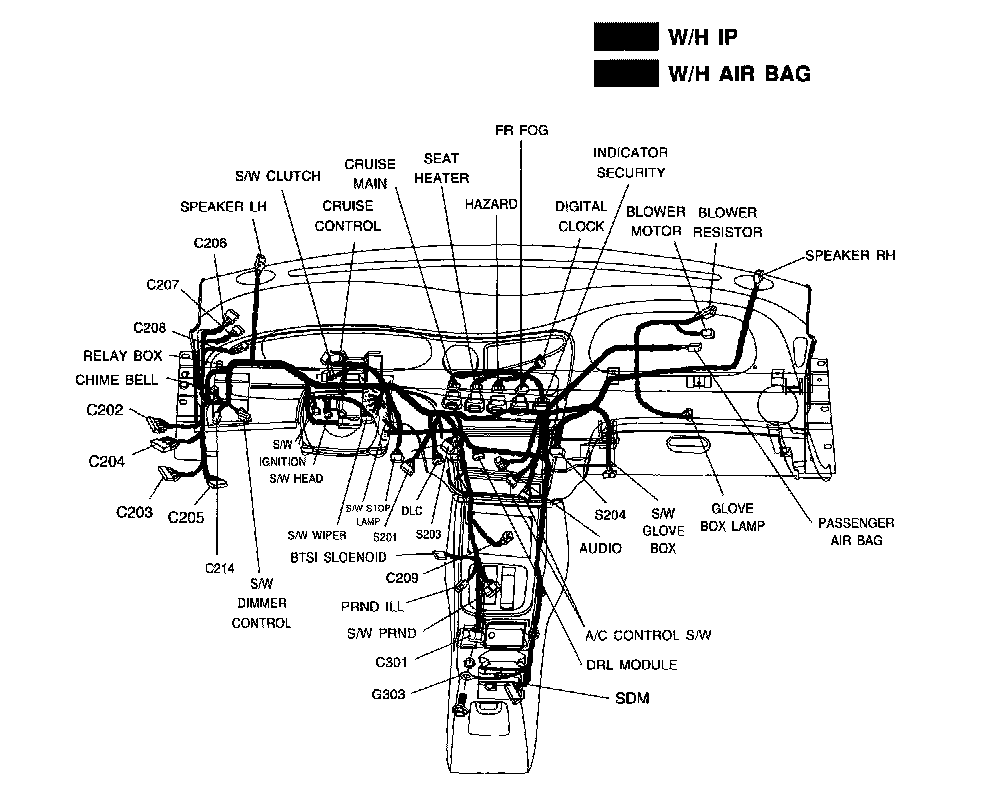

Position Of Connectors And Grounds (W/H Instrument Panel):

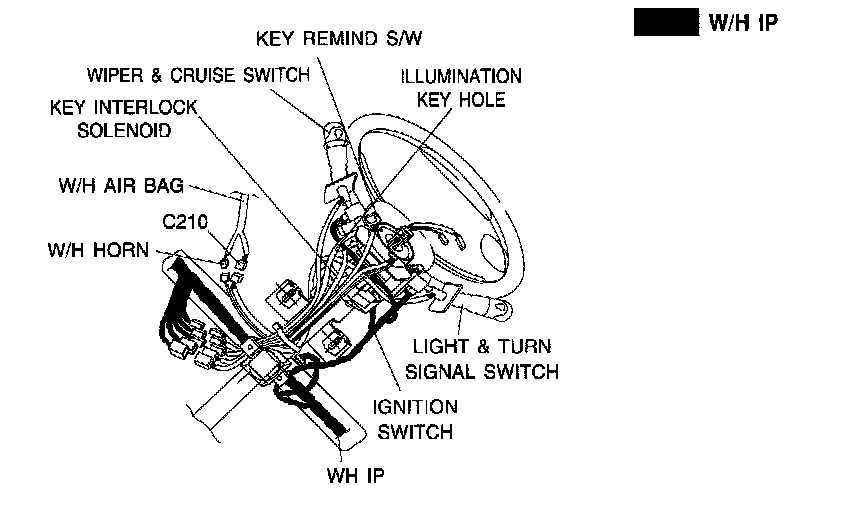

Position Of Connectors And Grounds (W/H Instrument In Detail):
