Home >> Daewoo >> 2001 >> Leganza CDX L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Indicator - A/T >> Testing and Inspection

Shift Indicator - A/T: Testing and Inspection

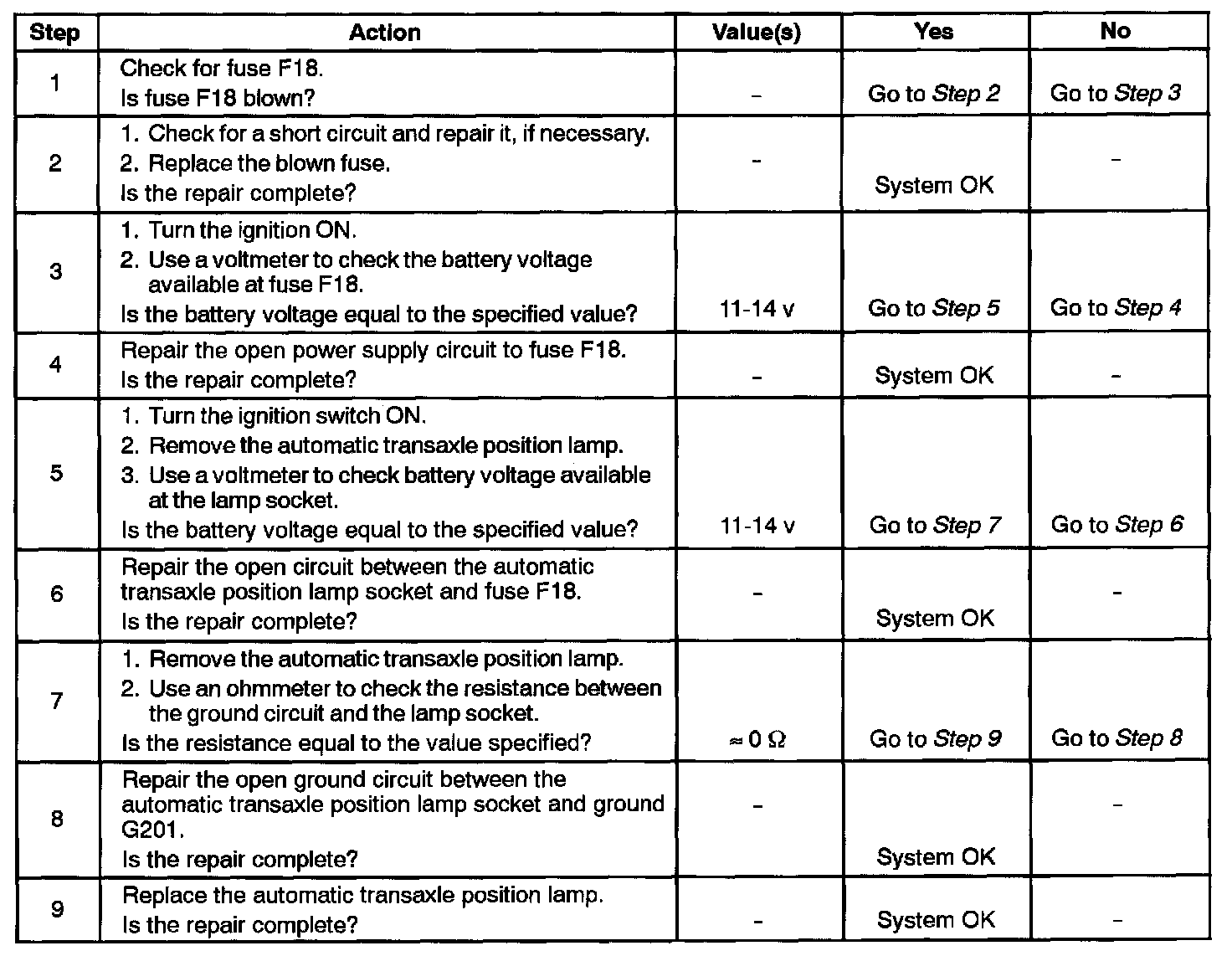

Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Instrument Lamps OK Step 1 - 9:



Wiring Diagram:
