Upper Valve Body

Disassembly Procedure

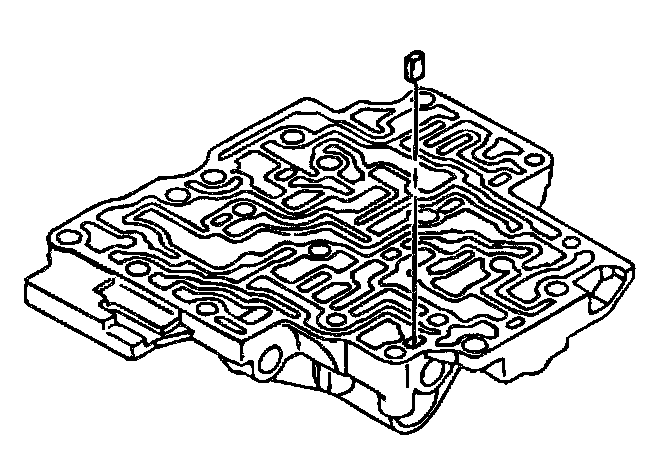

1. Remove the key

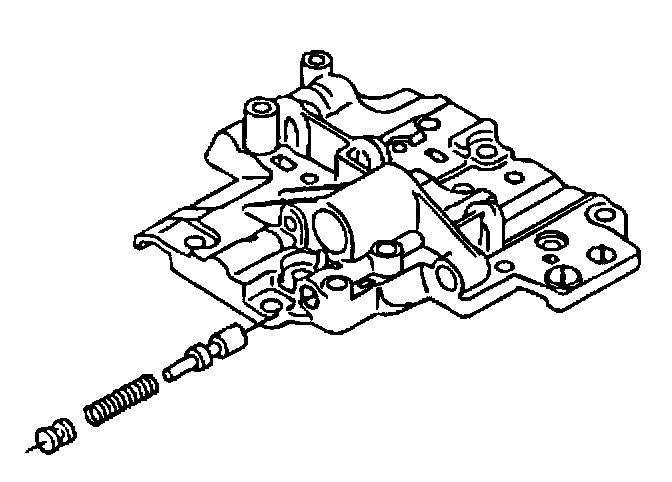

2. Remove the retainer, valve spring and the solenoid modulator valve.





3. Inspect the valve spring.

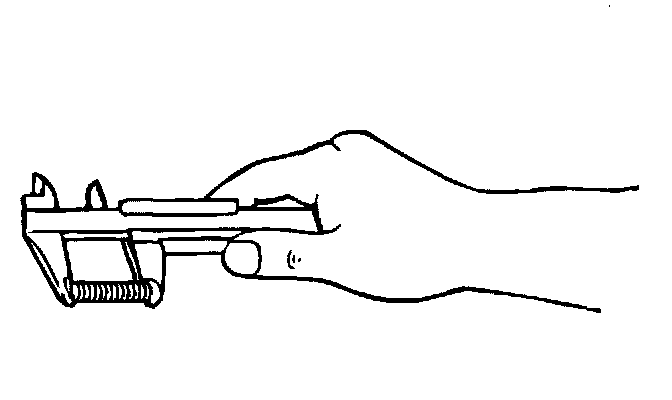

- Using vernier calipers, measure the free length and outer diameter of the spring. If it does not meet specifications, replace it.

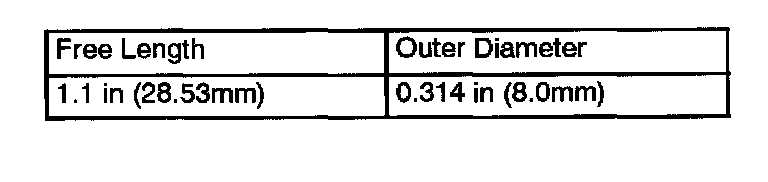

Valve Spring Table

Assembly Procedure

Notice: Inspect the valve for damage or wear, replace if necessary. The valve should fit snugly in the bore.

Notice: Coat the valve and spring with TOTAL FLUID HX prior to assembly.

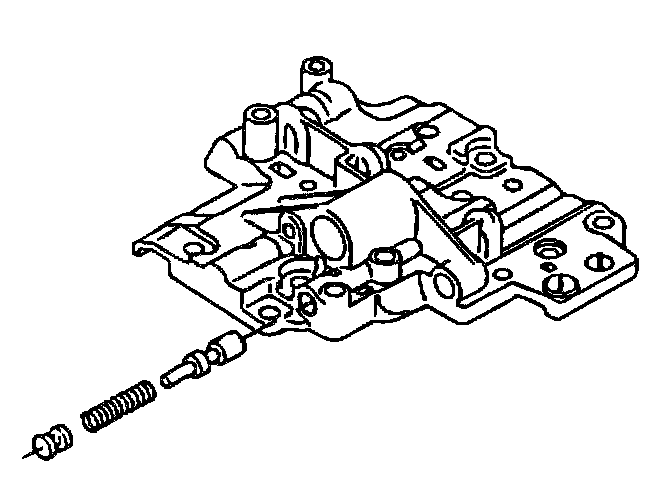

1. Install the solenoid modulator valve, valve spring and the valve retainer.

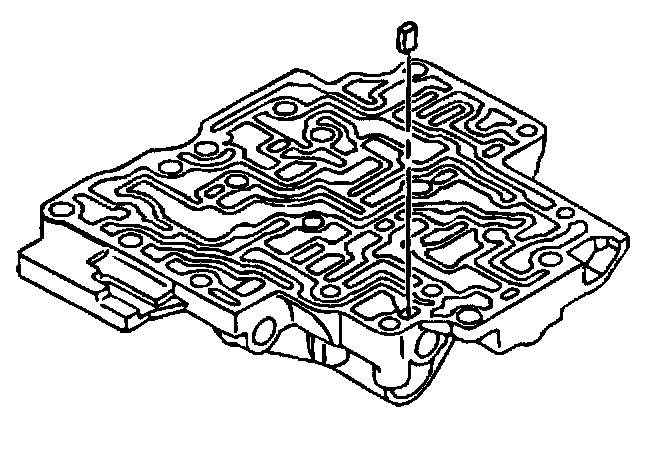

2. Install the key.
