Seals and Gaskets: Service and Repair

Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the wheels.
3. Disconnect the automatic transaxle drive axles from the automatic transaxle.

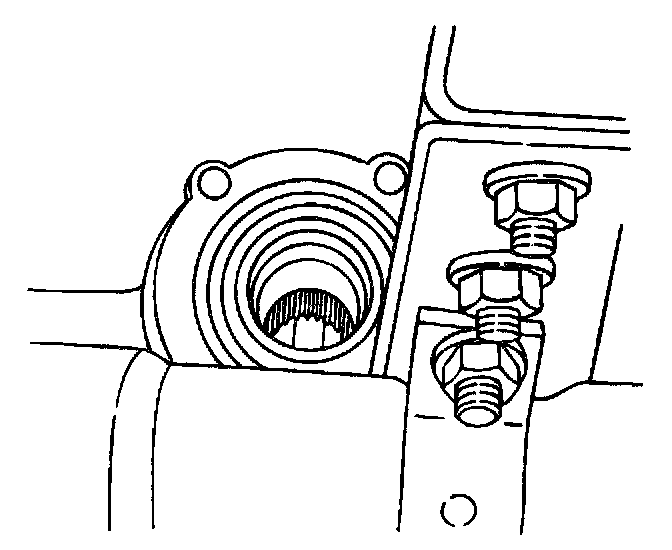

4. Remove the right side drive axle fluid seal.

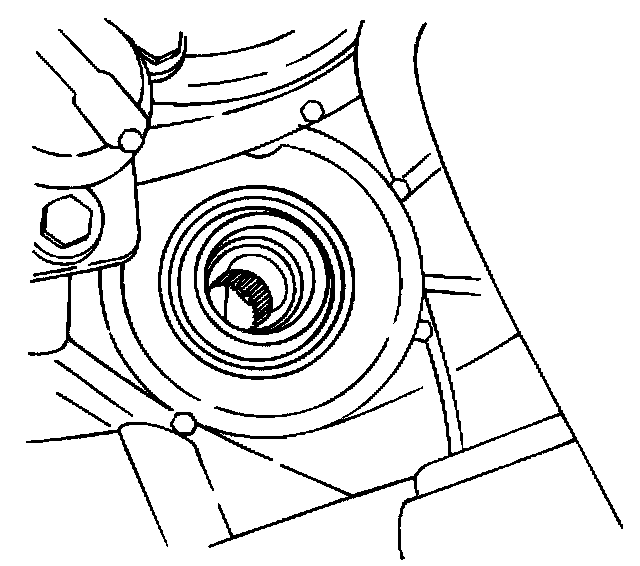

5. Remove the left side drive axle fluid seal.

Installation Procedure





1. Install the left side drive axle fluid seal.





2. Install the right side drive axle fluid seal.
3. Connect the automatic transaxle drive axles to the automatic transaxle.
4. Install the wheels.
5. Lower the vehicle.
