Steering Wheel Rotation Sensor

STEERING WHEEL ROTATION SENSOR
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the upper and the lower instrument trim panels.

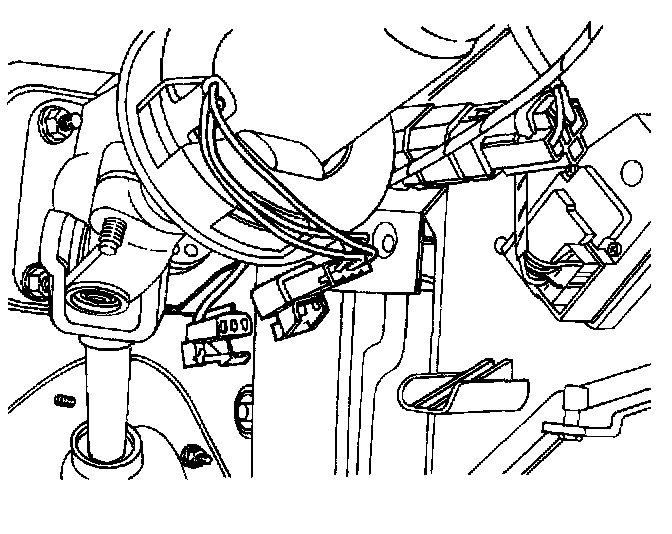

3. Disconnect the steering wheel rotation sensor electrical connector.





4. Remove the intermediate shaft from the steering column to allow removal of the steering wheel rotation sensor.

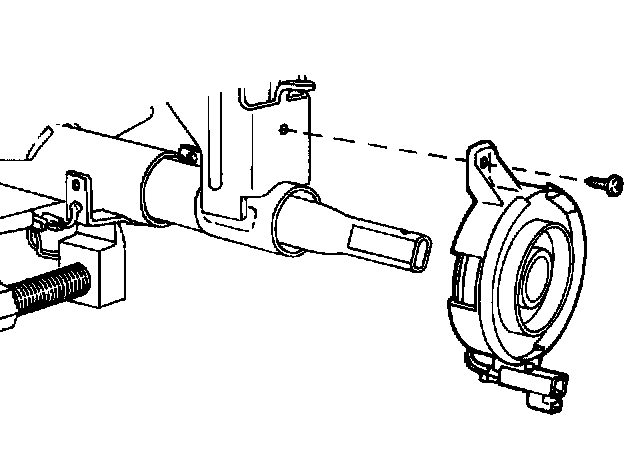

5. Remove the retaining screw from the steering wheel rotation sensor.
6. Remove the steering wheel rotation sensor.

Installation Procedure

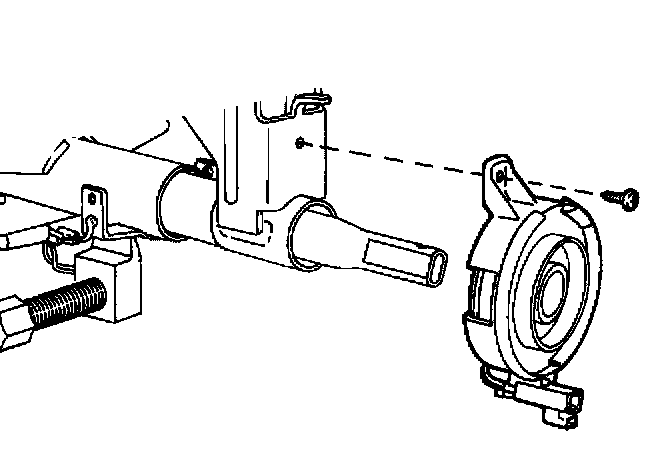

1. Install the steering wheel rotation sensor with the retaining screw.
Tighten the steering wheel rotation sensor retaining screw to 2 Nm (18 inch lbs.).
2. Install the intermediate shaft onto the steering column.

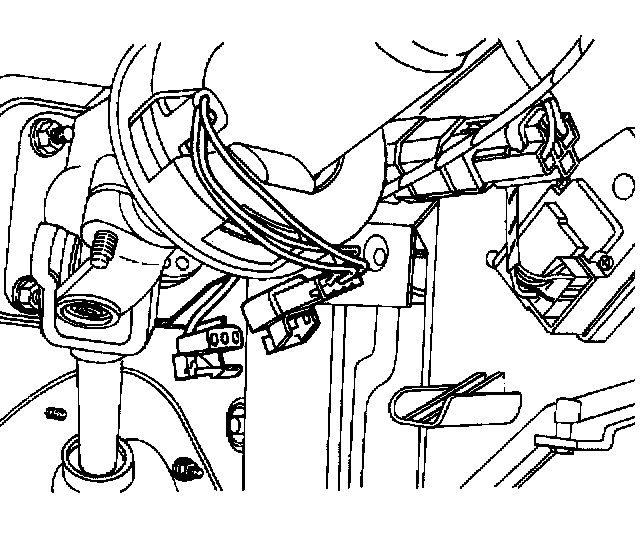

3. Connect the steering wheel rotation sensor electrical connector.
4. Install the upper and the lower instrument trim panels.
5. Connect the negative battery cable.
