Child Seat Tether Attachment: Service and Repair

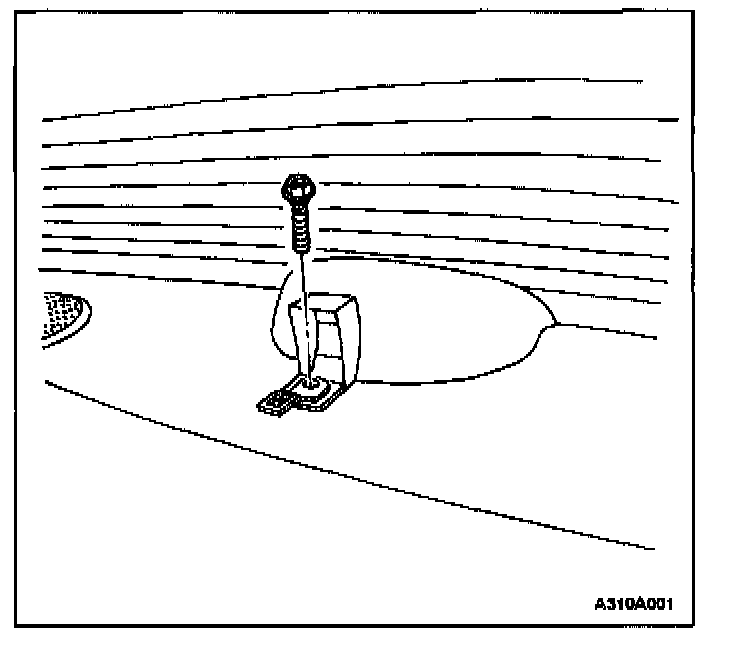

REMOVAL PROCEDURE




1. Open the tether anchor access cap.
2. Remove the bolt and the tether anchor.

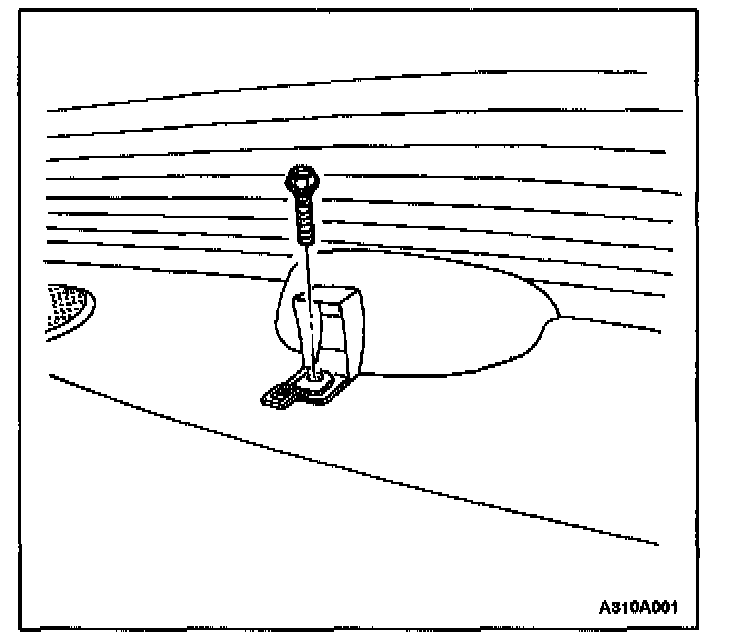

INSTALLATION PROCEDURE

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the tether anchor with the bolt.

Tighten
Tighten the child seat tether anchor bolt to 25 N.m (18 lb-ft).

2. Close the tether anchor access cap.
