Child Seat: Service and Repair

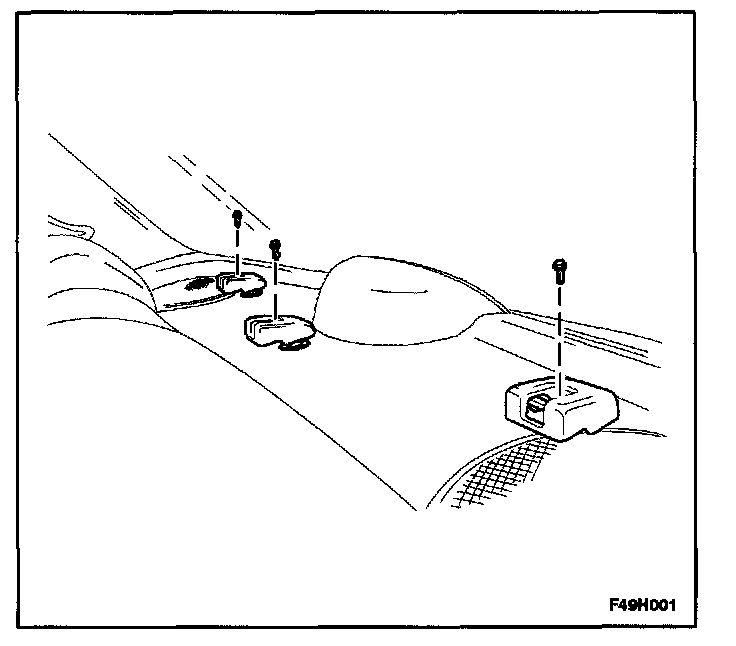

Child Seat Anchorage




Removal Procedure

1. Remove child seat anchorage cover.
2. Remove bolt and the child seat anchorage.

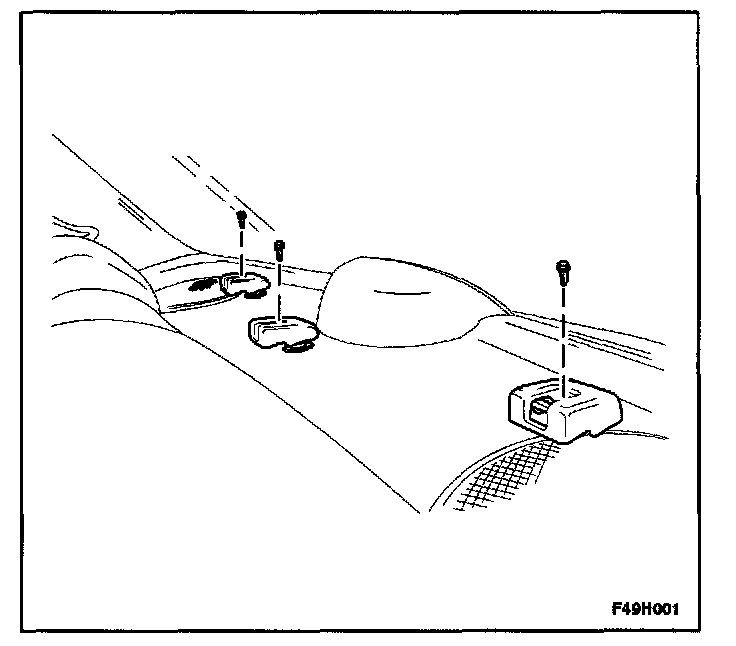

Install Procedure

1. Install the child seat anchorage with the bolt.

Tighten
Tighten the child seat anchorage bolt to 10 N.m (89 lb-in).

2. Install the child seat anchorage cover.
