Evaporative Emission Control Canister: Service and Repair




Removal Procedure

CAUTION: Canister and vacuum hoses contain fuel vapors. Do not smoke in the area or permit an open flame.

1. Remove the canister protective cover.

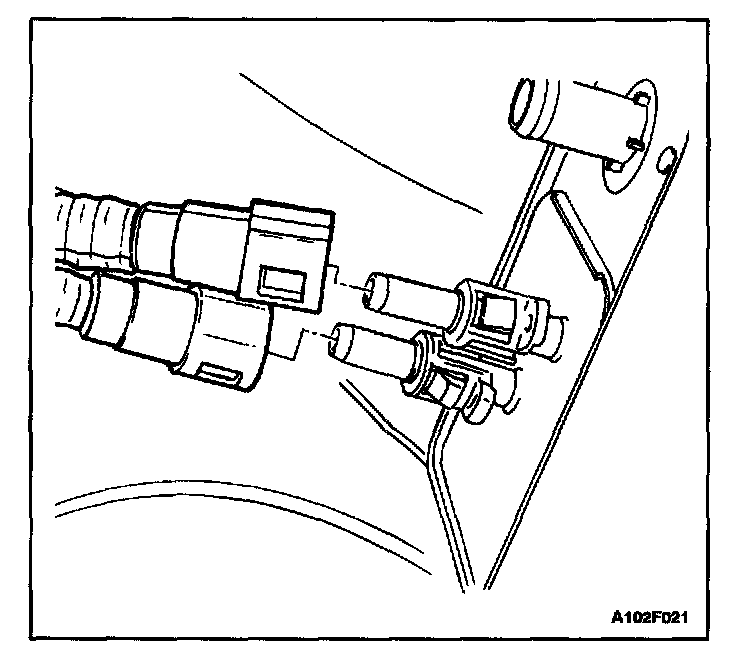

2. Disconnect the canister fuel vapor hoses.

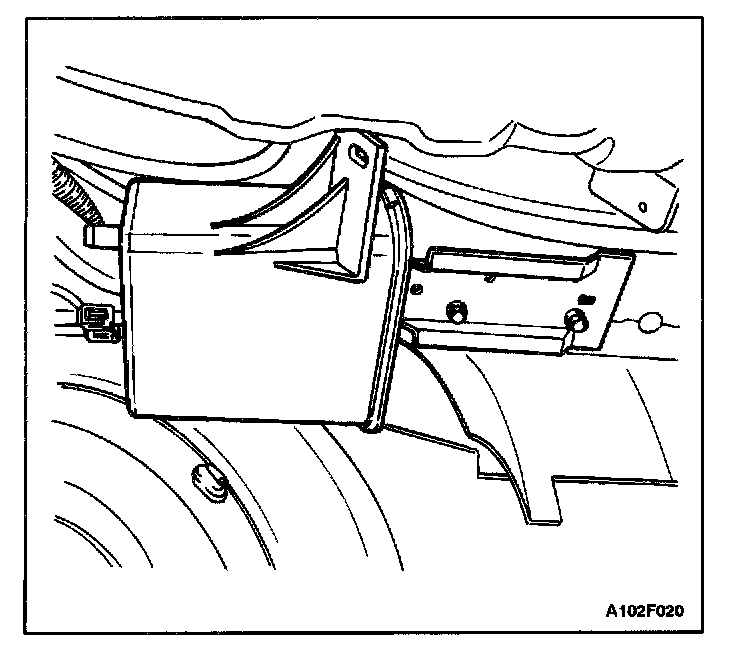

3. Remove the bolt that secures the canister flange to the vehicle.
4. Slide the canister out of the track holder.
5. Remove the canister.




Installation Procedure
1. Insert the canister into the track and slide it into position.
2. Install the canister flange bolt.

Tighten
Tighten the evaporative emission canister flange bolt to 4 N.m (35 lb-in).

3. Connect the canister fuel vapor hoses.
4. Install the canister protective cover.

Tighten
Tighten the evaporative emission canister protective cover to 71 lb-in (8 N.m).
