Front Fog Lamp (W/DRL)
Front Fog Lamp (W/DRL)

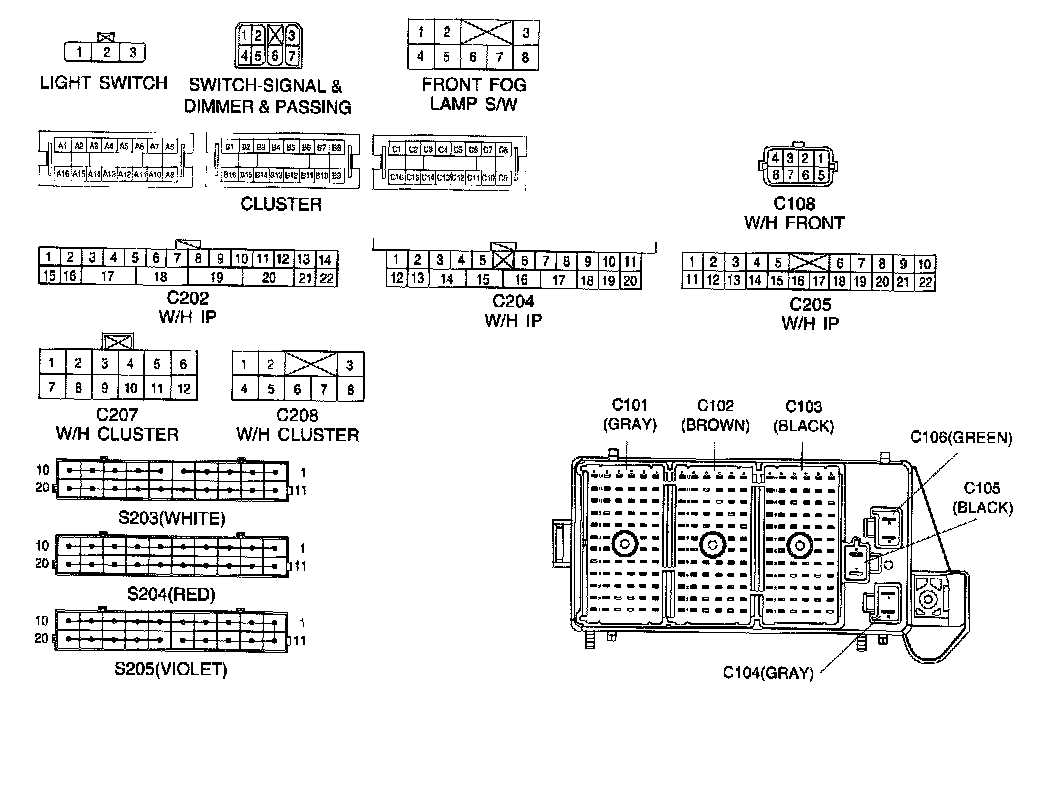

Connector Identification Symbol & Pin Number Position:

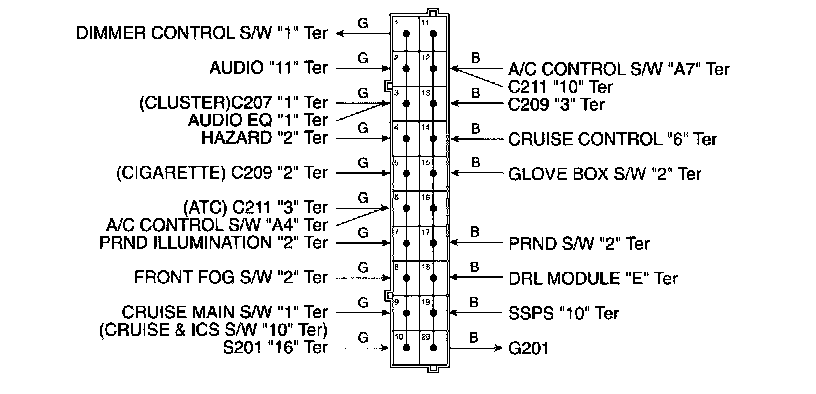

Splice Pack S203 (White):

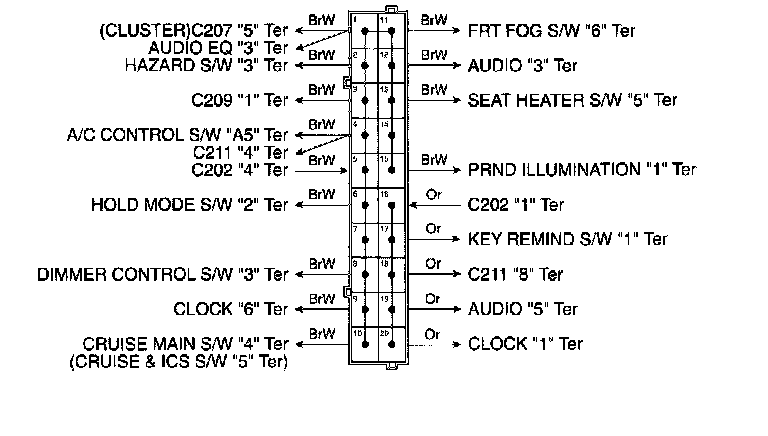

Splice Pack S204 (Red):

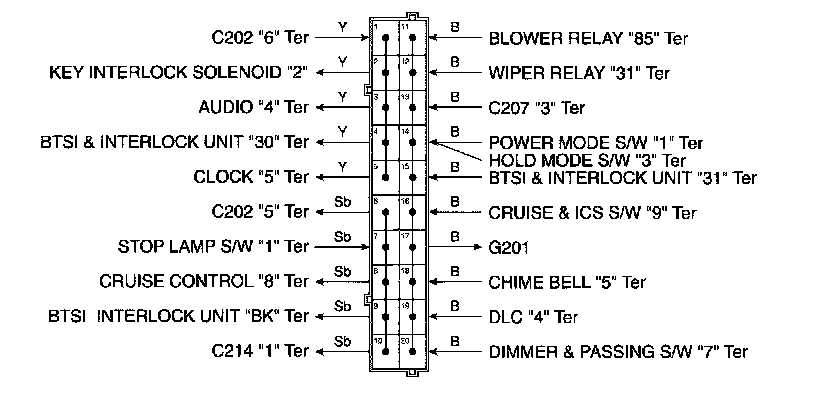

Splice S205 (Violet):
