Leganza CDX L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Connector Views
Connector Views

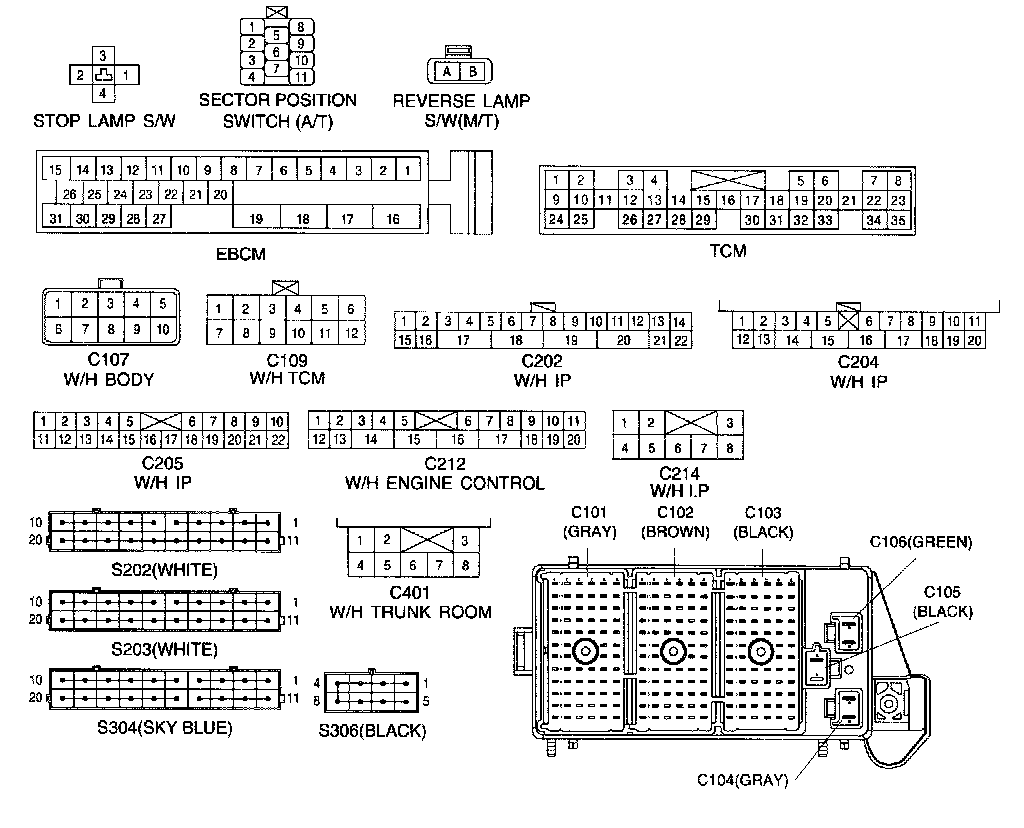

Connector Identification Symbol & Pin Number Position:

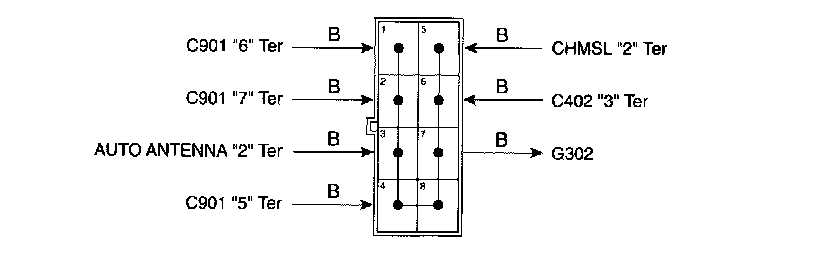

Splice Pack S202 (White):

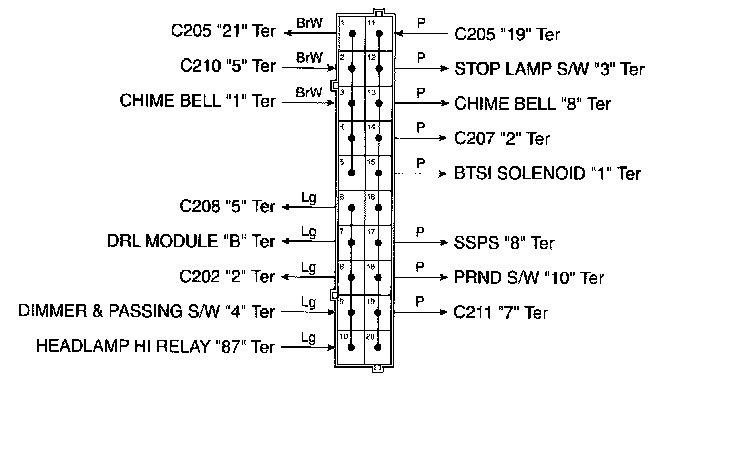

Splice Pack S203 (White):

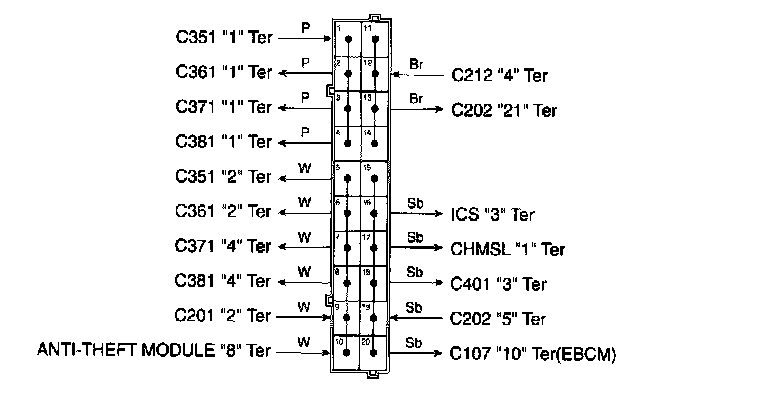

Splice Pack S304 (Sky Blue):

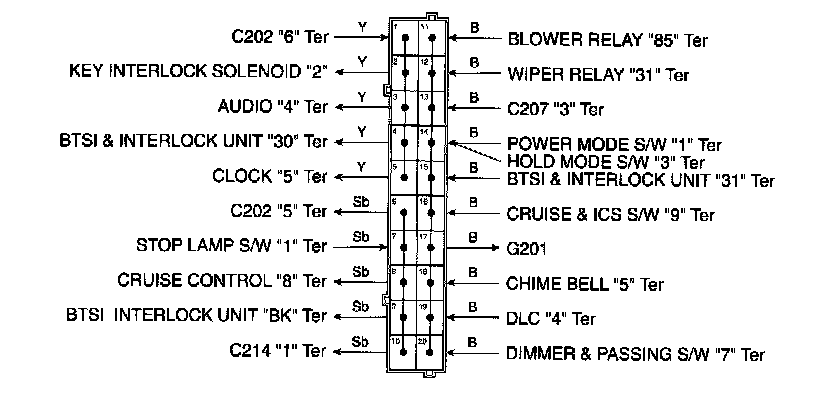

Splice Pack S306 (Black):
