Mode Controls Do Not Work

Refer to "A/C Blower and Motor Controls Diagram" for the electrical schematic diagram of the circuits described in this procedure.

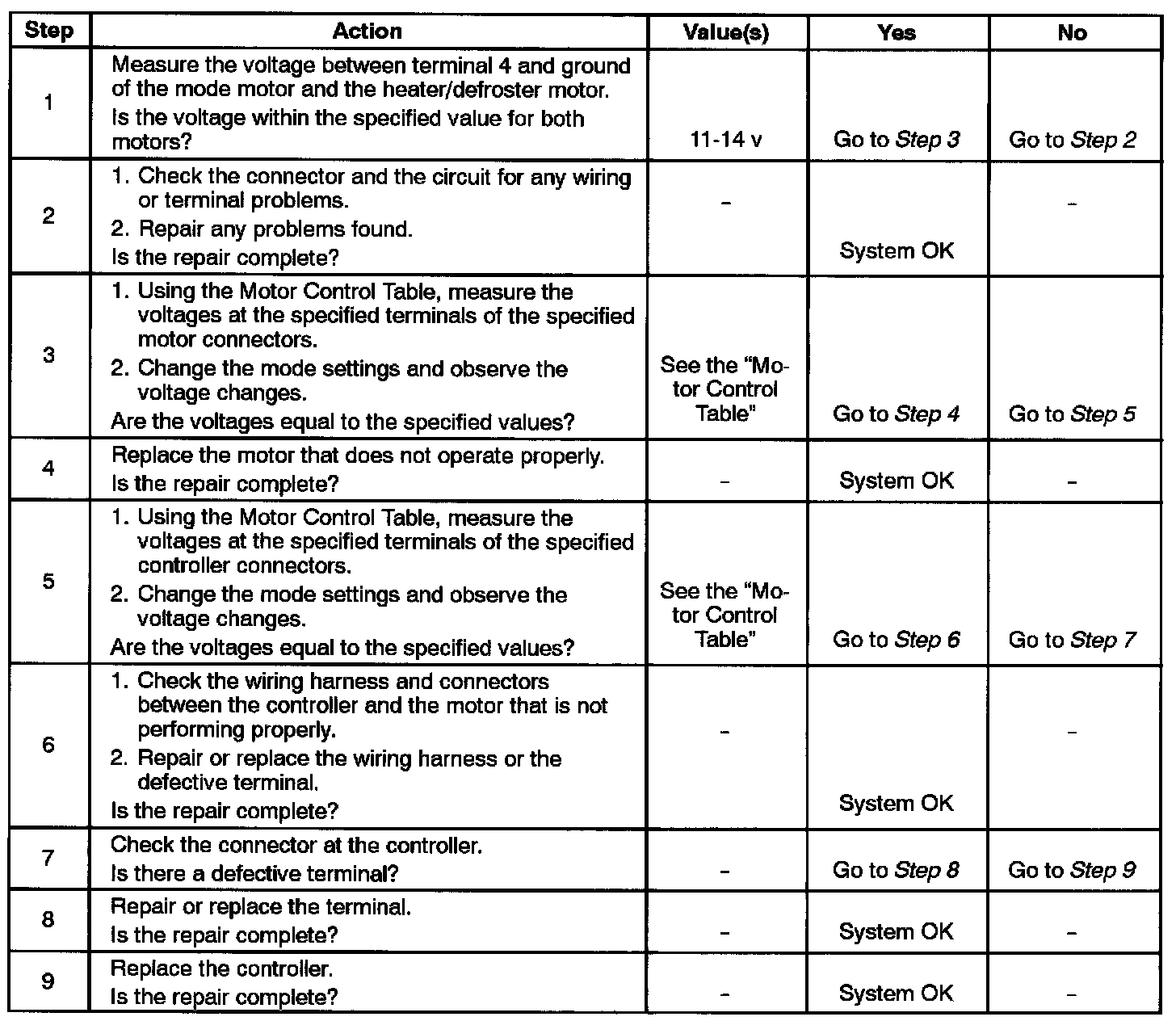

Step 1 - 9:

Mode Controls Do Not Work

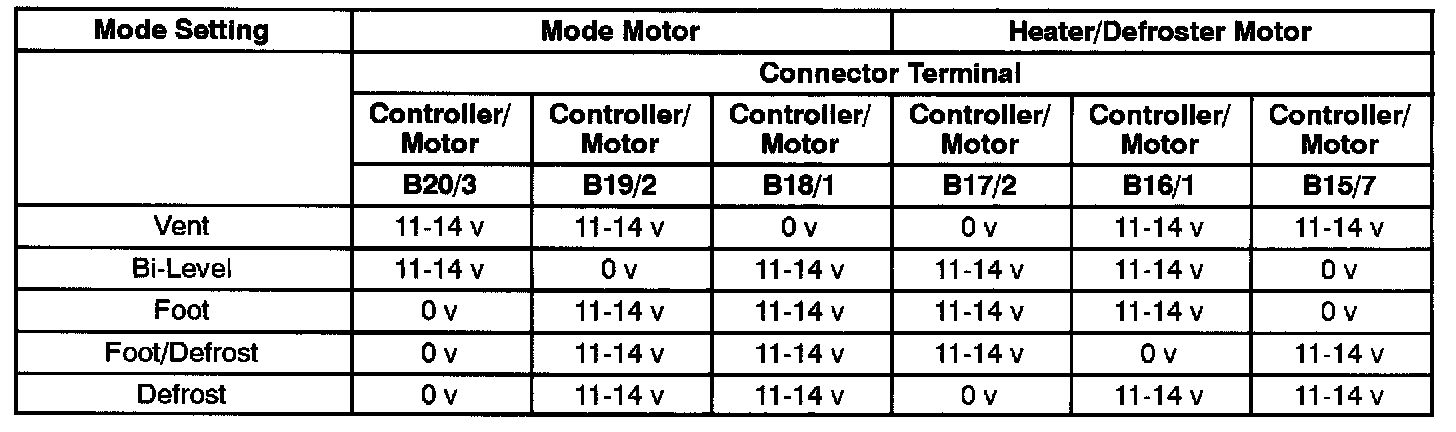

Motor Control Table:

Motor Control Table
