Improper Air Delivery or No Mode Shift

This procedure provides a test of all functions of the heater/defroster unit.

1. Warm up the vehicle.
2. keep the engine running.

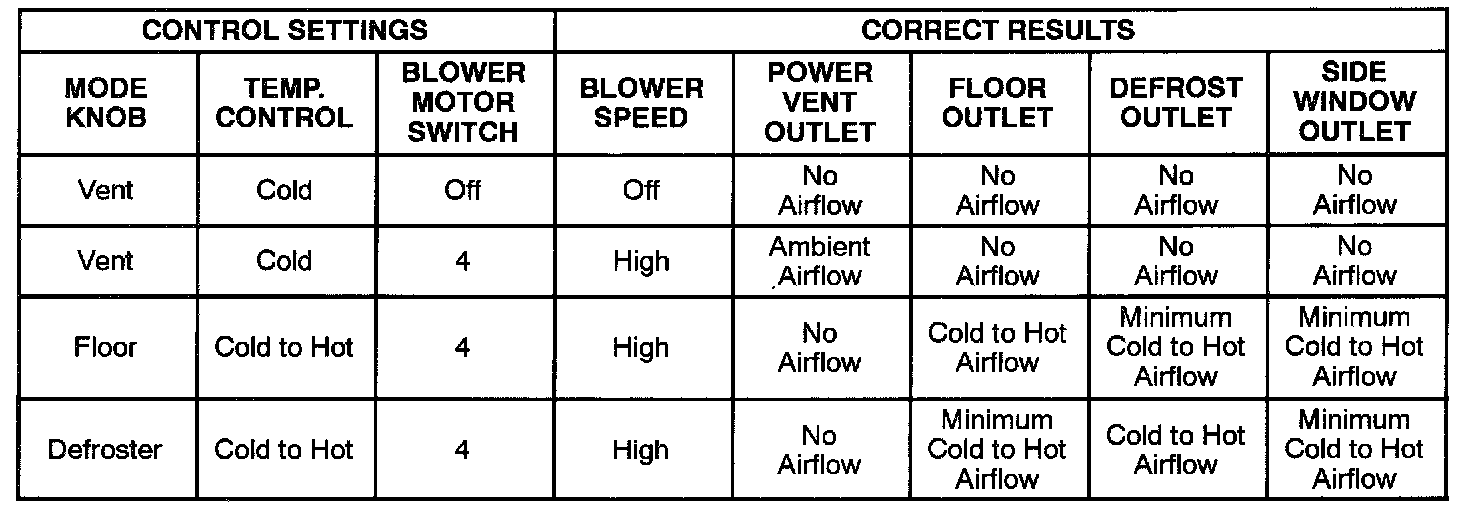

3. Perform the tests outlined in the table and look for the results indicated.

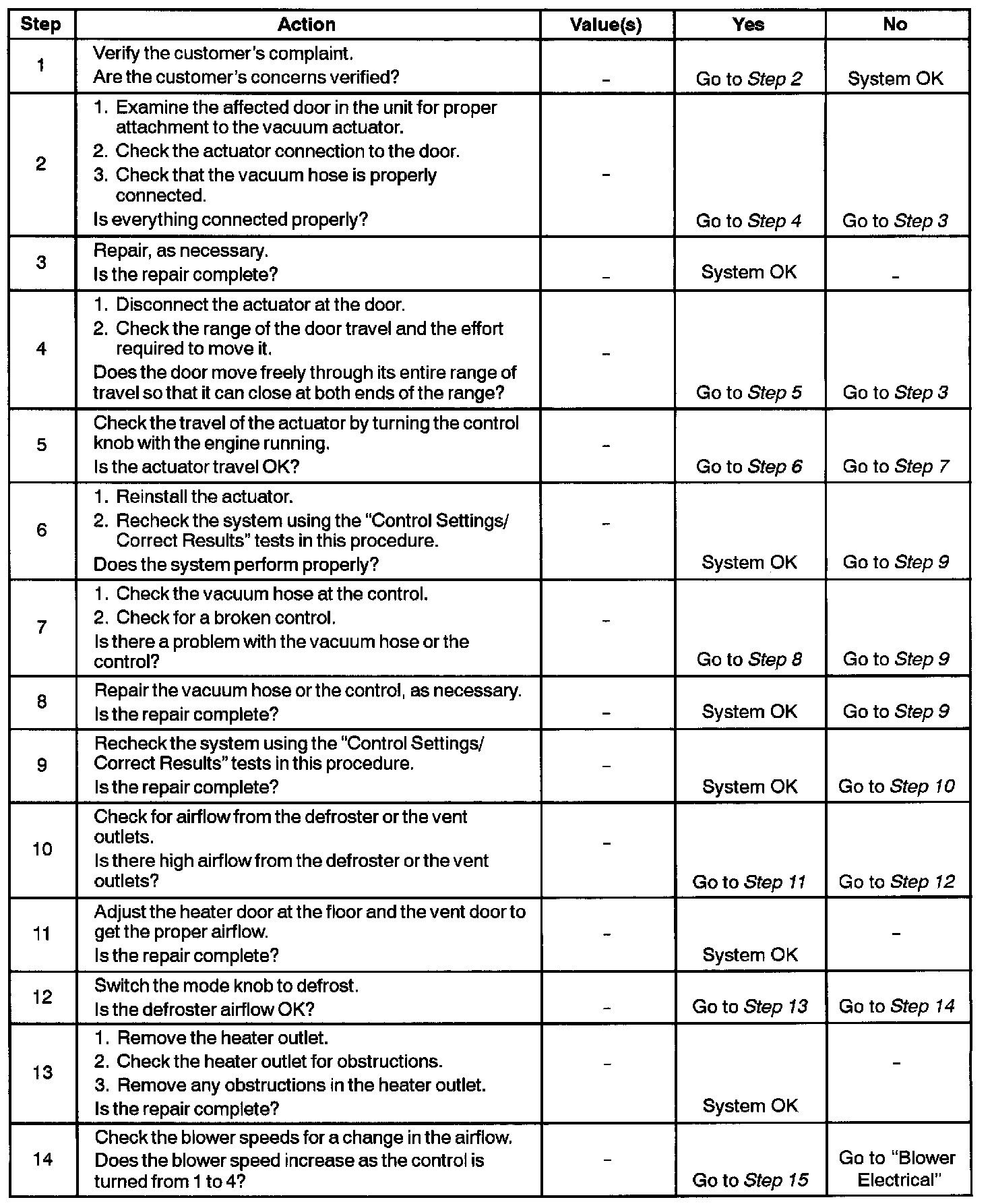

Step 1 - 14:

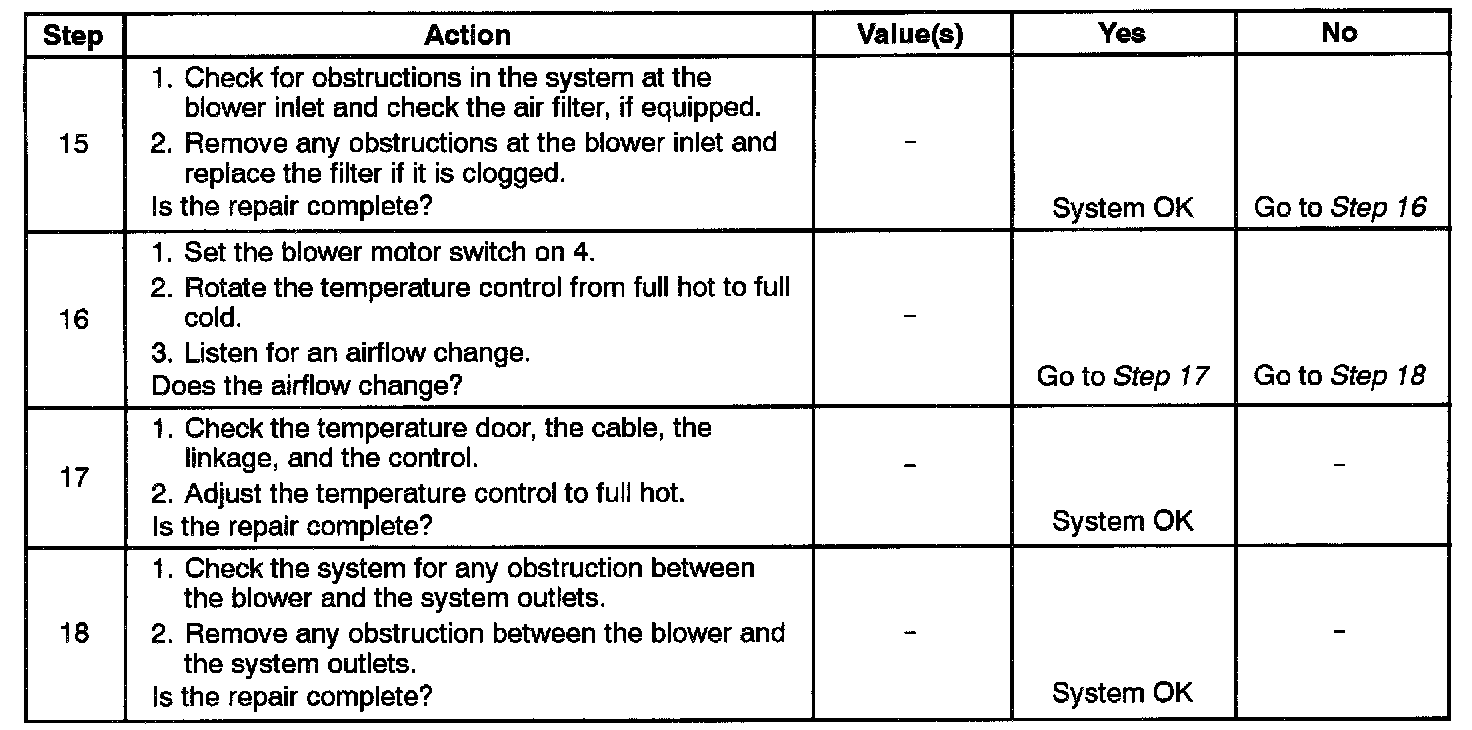

Step 15 - 18:

If any of these settings does not produce the correct results,perform the following diagnostic procedure:
