Refrigerant Pressure Sensor / Switch: Service and Repair

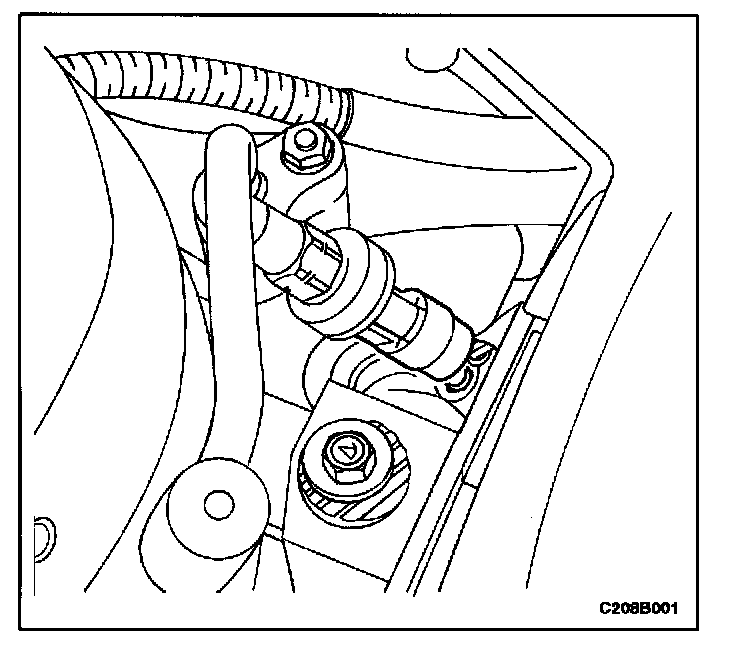

A/C Pressure Transducer

Removal Procedure




1. Disconnect the negative battery cable.
2. Release the connector lock and pull the transducer wire connector out.




3. Remove the transducer with a wrench.
4. Discard the O-rings seal.

Installation Procedure




1. Install the new O-rings seal on the transducer.
2. Install the pressure transducer.

Tighten
Tighten the pressure transducer to 7 N.m (62 lb-in).

3. Connect the wire connector.
4. Connect the negative battery cable.
