Auto A/C

Air Filter

Removal Procedure

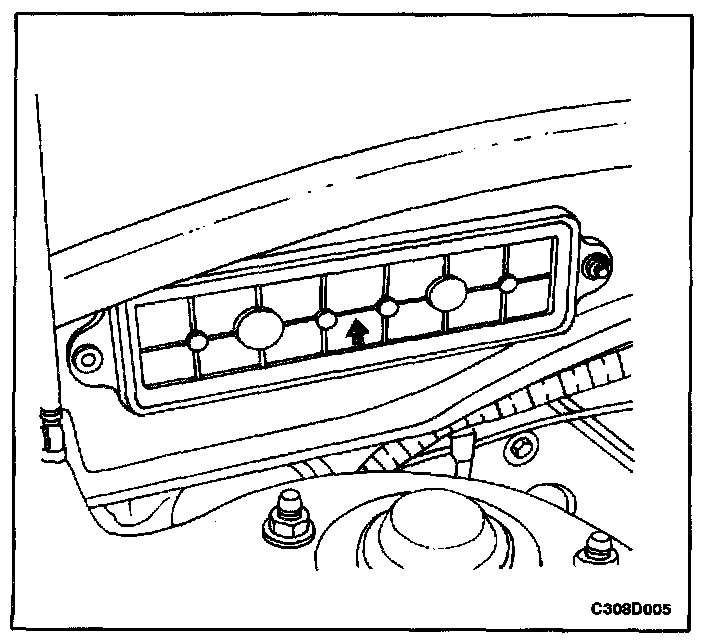

1. Remove the nut that secures the air filter cover to the bulkhead.

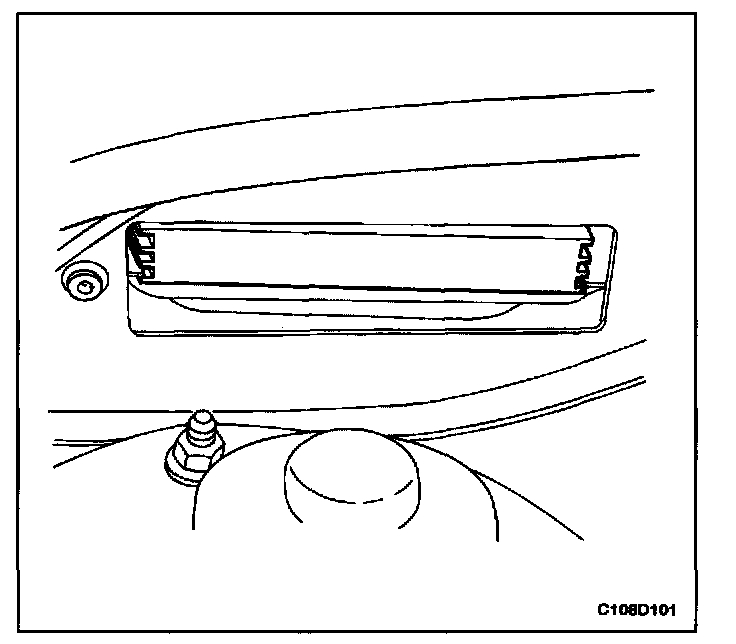

2. Remove the cover.

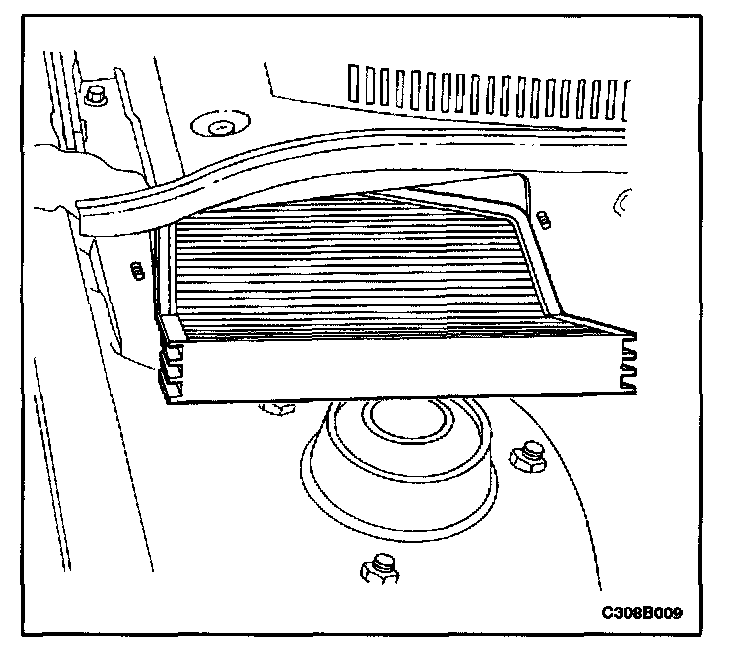

3. Pull the air filter out of the cavity in the bulkhead.

Installation Procedure




1. Install the air filter into its cavity in the bulkhead.
- Align the fins on the plastic frame of the filter with the grove in the holder before attempting to insert the filter into place.

2. Install the air filter cover with the arrow pointing up.
3. Install the nut to secure the air fitter cover to the bulkhead.

Tighten
Tighten the air filter cover nut to 4 N.m (35 lb-in).
