Home
>>
Daewoo
>>
2001
>>
Leganza CDX L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Schematics
Schematics

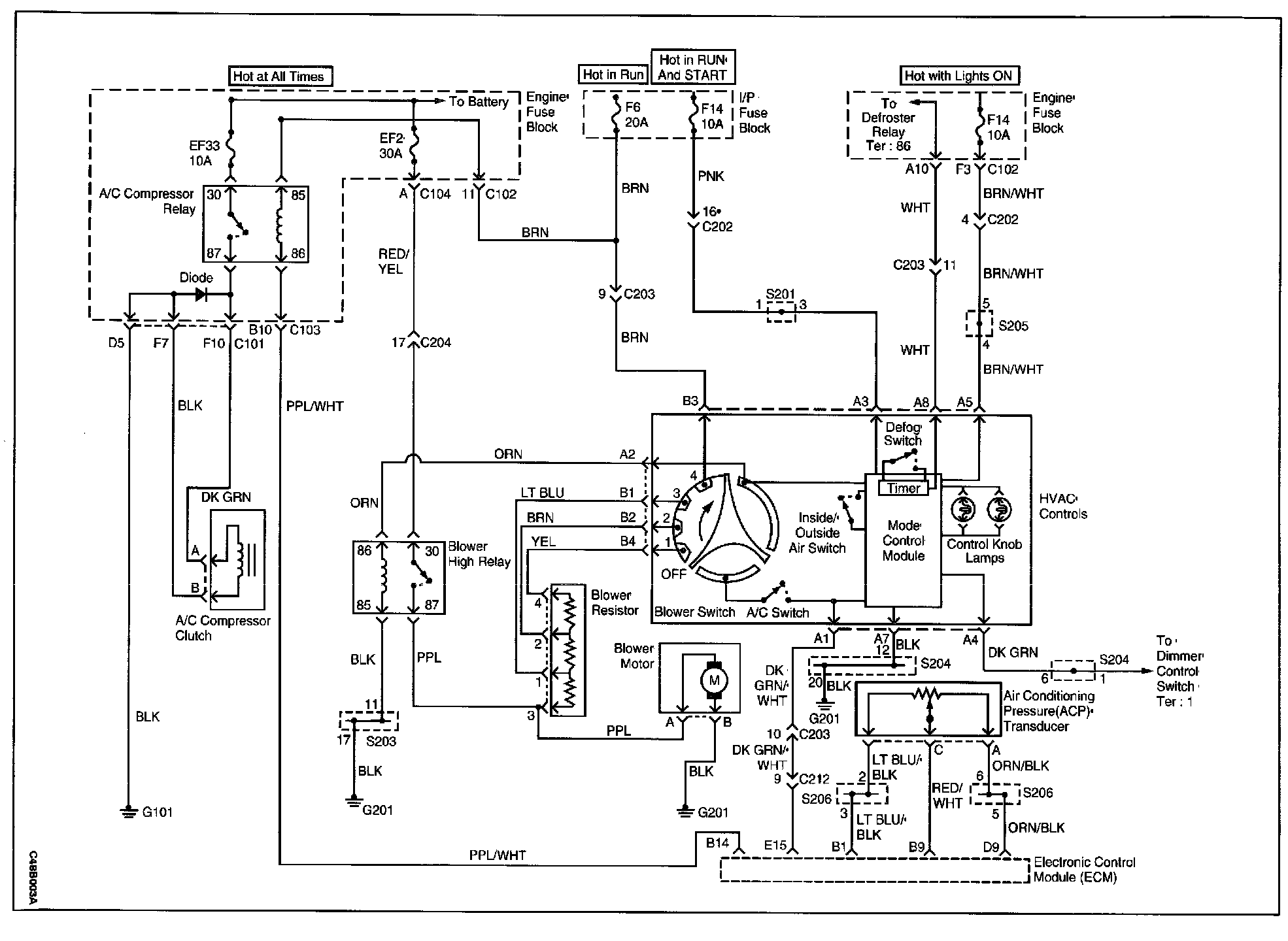

Manual Control A/C Diagram:
