Brake Proportioning/Combination Valve: Testing and Inspection

CHECKING BRAKE PROPORTIONING VALVE

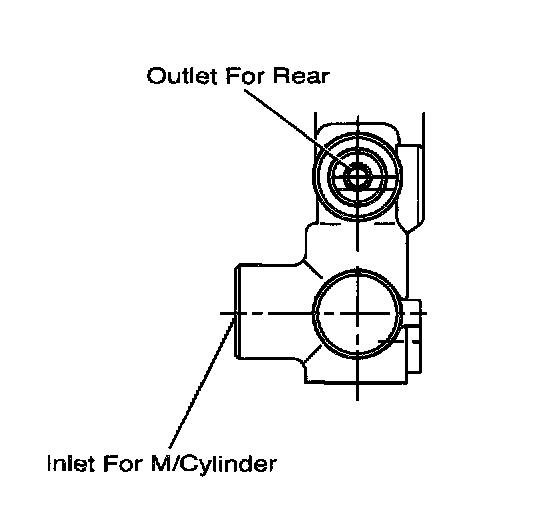

This proportioning valve, designed to work in conjunction with the ABS unit, is located on the bulkhead, and regulates the distribution of the fluid pressure to the rear brakes.





Using two brake pressure gauges, one on the input side and the other on the output side of the proportioning valve, measure the pressure with the appropriate brake lines disconnected, using the following steps:3

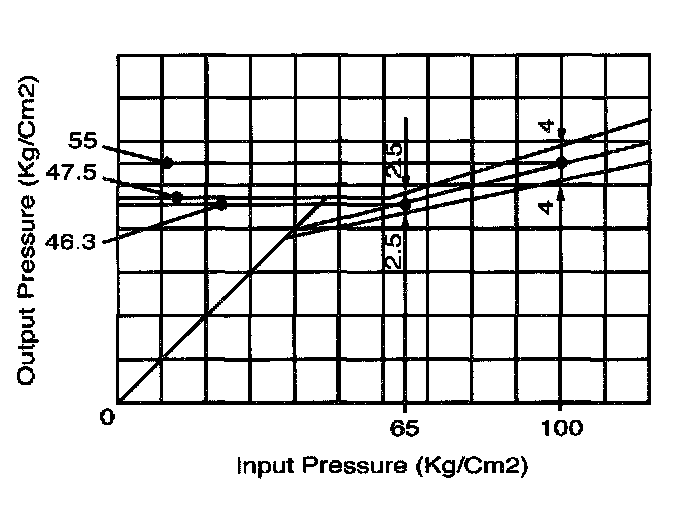

1. With the brakes applied, measure the input and output pressure. If the measured pressures are within the ranges as illustrated, the proportioning valve is good.
2. Connect the brake lines in their original positions and bleed the system.
3. If the proportioning valve requires replacement, refer to Service and Repair.
