Rear

Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the rear wheels.

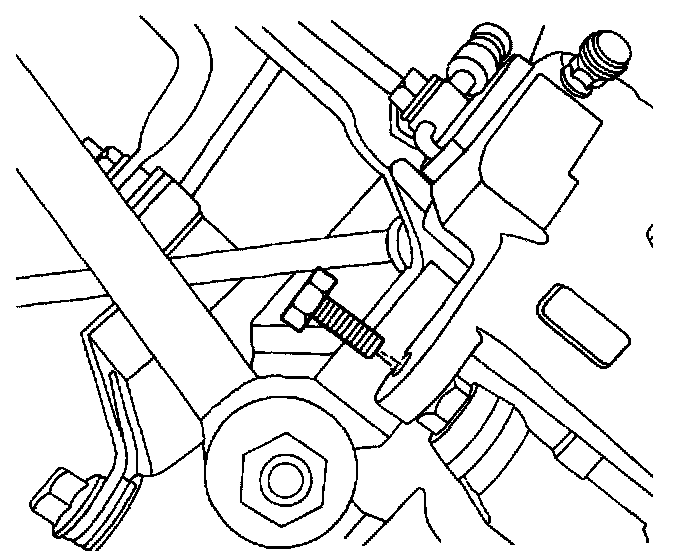

3. Remove the lower caliper guide pin bolt.

Important: Caliper removal is not necessary to service the brake pads.

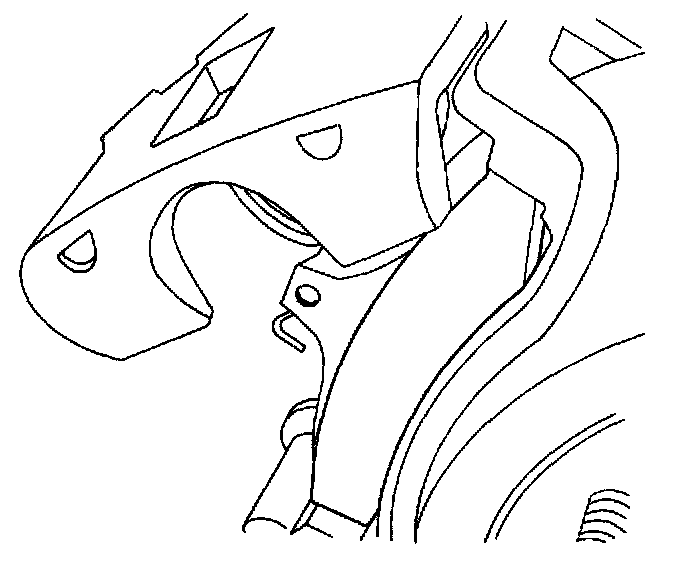

4. Pivot the caliper upward.

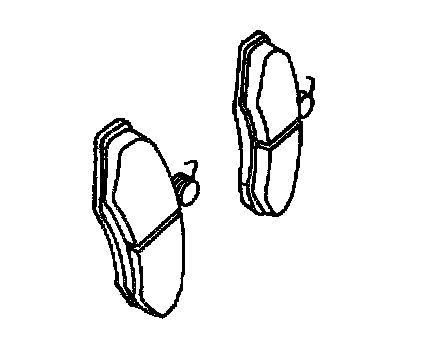

5. Remove the brake shoes.

Installation Procedure





1. Measure the minimum brake shoe lining thickness.

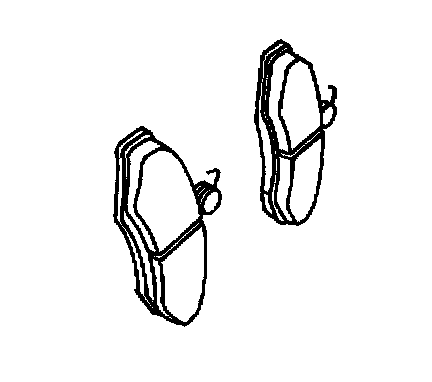

2. Install the brake shoes into the caliper.
3. Push the piston inward, if needed.





Notice: Avoid damaging the piston seal when the piston housing is pulled down.

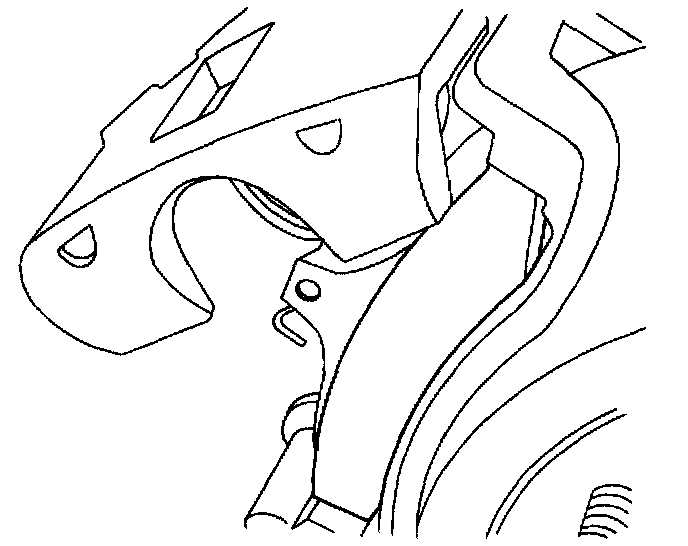

4. Pivot the caliper downward and install the bolt.
Tighten the lower caliper mounting bolt to 31 Nm (23 ft. lbs.).
5. Install the rear wheels.
6. Lower the vehicle.
