Split Rear Seatback

Removal Procedure

1. Lower the rear seatbacks.
2. Remove the retaining clips and reposition the rear seatback backside cover.

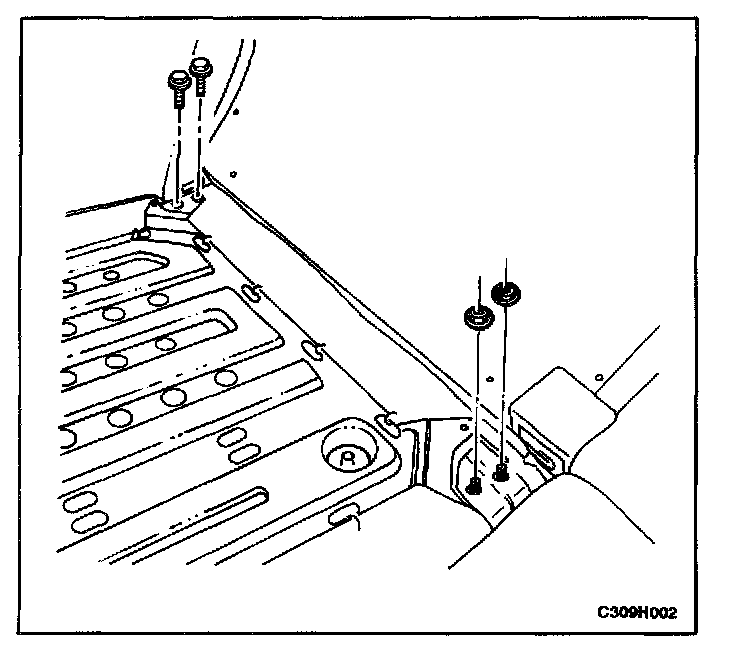

3. Remove the nuts, the bolts, and the seatback from the hinges.




Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

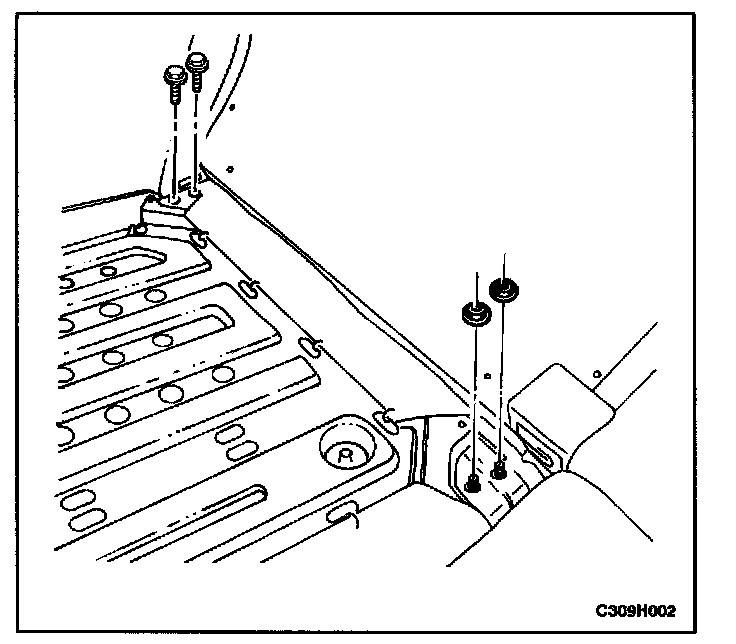

1. Install the seatback to the hinges with the bolts and the nuts.

Tighten
Tighten the rear seatback bolts to 25 N.m (18 lb-ft)
Tighten the rear seatback nuts to 25 N.m (18 lb-ft)

2. Install the rear seatback backside cover with the retaining clips.
3. Raise and secure the rear seatbacks in the upright position.
