Front Seatback

Removal Procedure




1. Remove the front bucket seat from the vehicle.

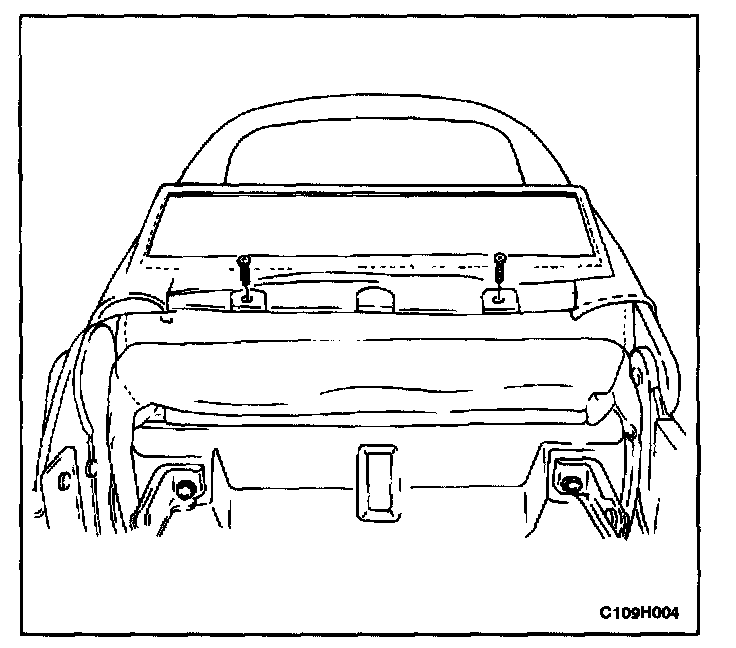

2. Remove the screws and slide the back panel down to remove it.

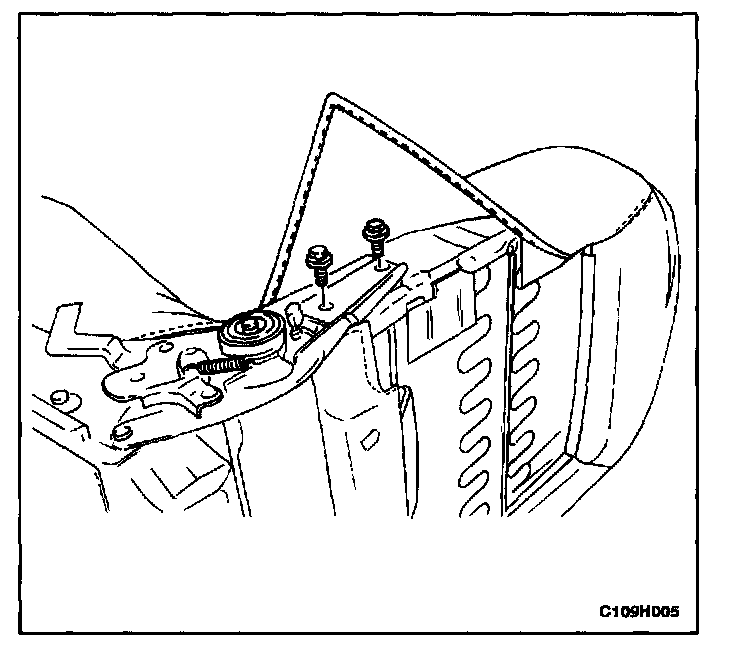

3. Reposition the left side seatback cover.
4. Remove the bolts and the seatback.

Installation Procedure




1. Install the seatback onto the seat cushion.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

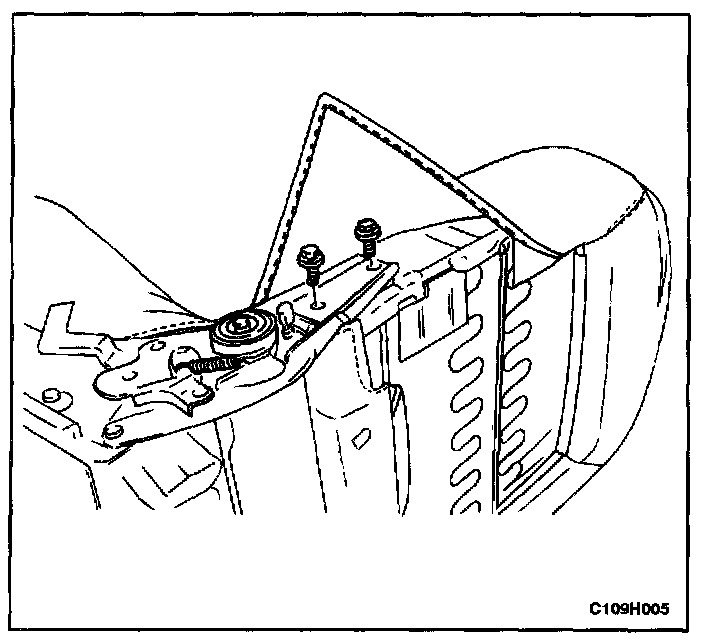

2. Install the front seatback bolts.

Tighten
Tighten the front seatback bolts to 45 N.m (33 lb-ft).




3. Install the seat cover to its original position.
4. Install the back panel onto the seat with the screws.

Tighten
Tighten the front seat cover screws to 12 N.m (106 lb-in).

5. Install the front bucket seat in the vehicle.
