Power Seat Motor: Testing and Inspection

Power Driver Seat Inoperative

CAUTION: If the driver seat motor is powered directly from a battery, personal injury could be caused by sparking and sudden heating of the terminals it the wires from the battery are touched together. Use a fused jumper wire, and use terminal test adapters if available. If terminal test adapters are not available, use insulating tape to reduce the possibility of touching the jumpers together.

Diagnostic Aids
If resistance is measured between the terminals of the motor connectors, the frontward/backward motor resistance is approximately equal to 1 ohm, the front height motor resistance is approximately equal to 5 ohm, and the rear height motor resistance is approximately equal to 9 ohm.

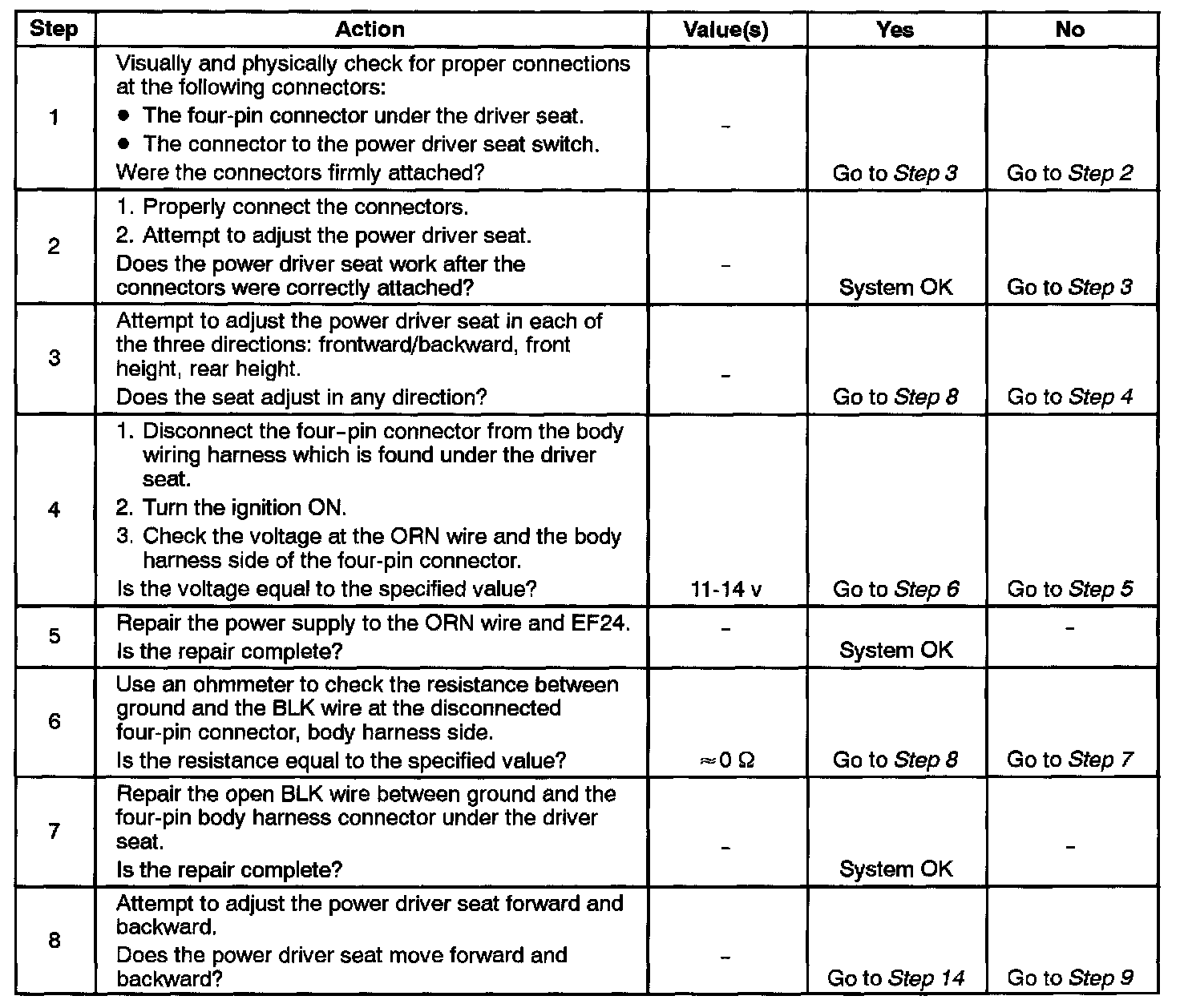

Step 1 - 8:

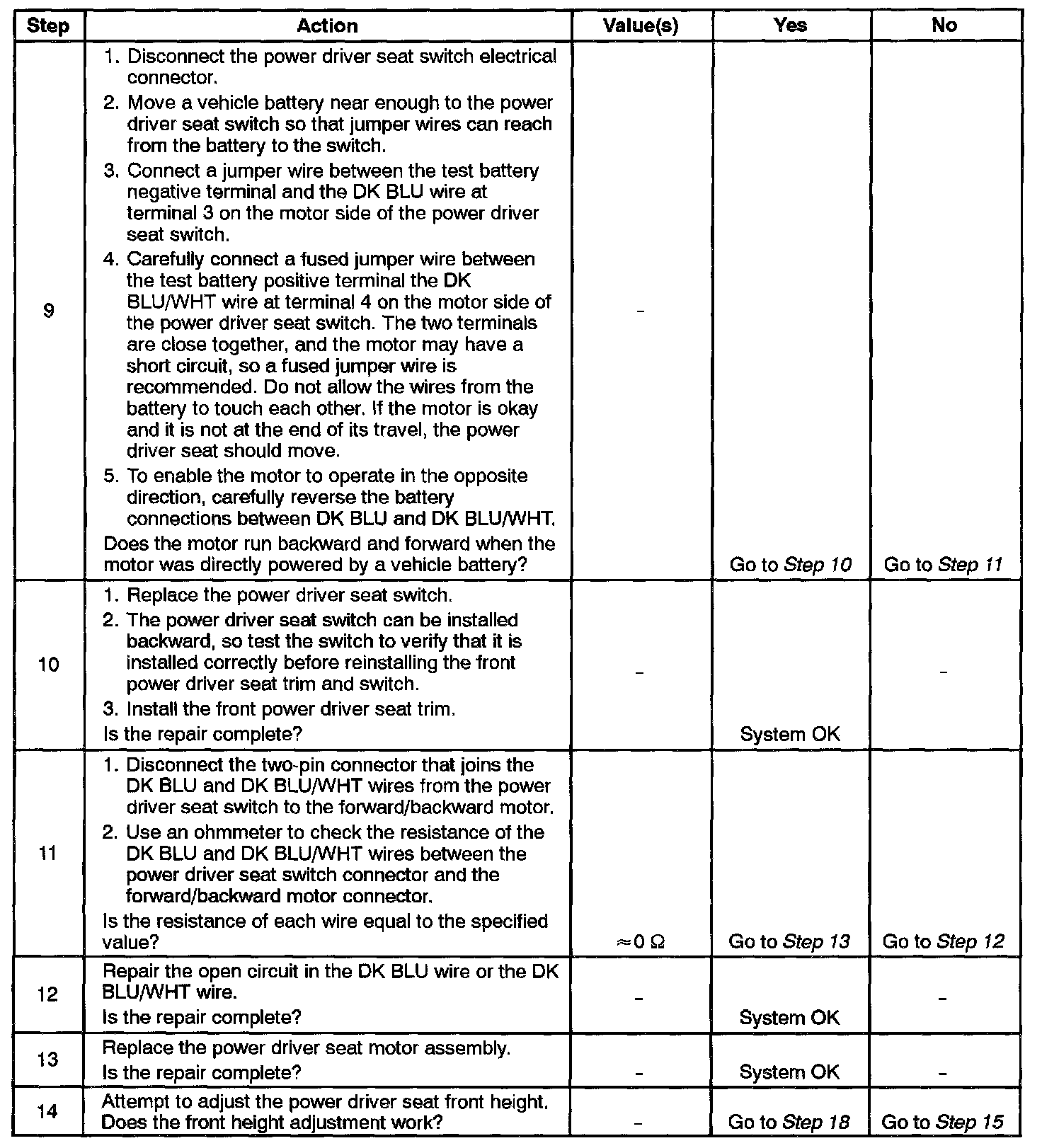

Step 9 - 14:

Step 15 - 18:

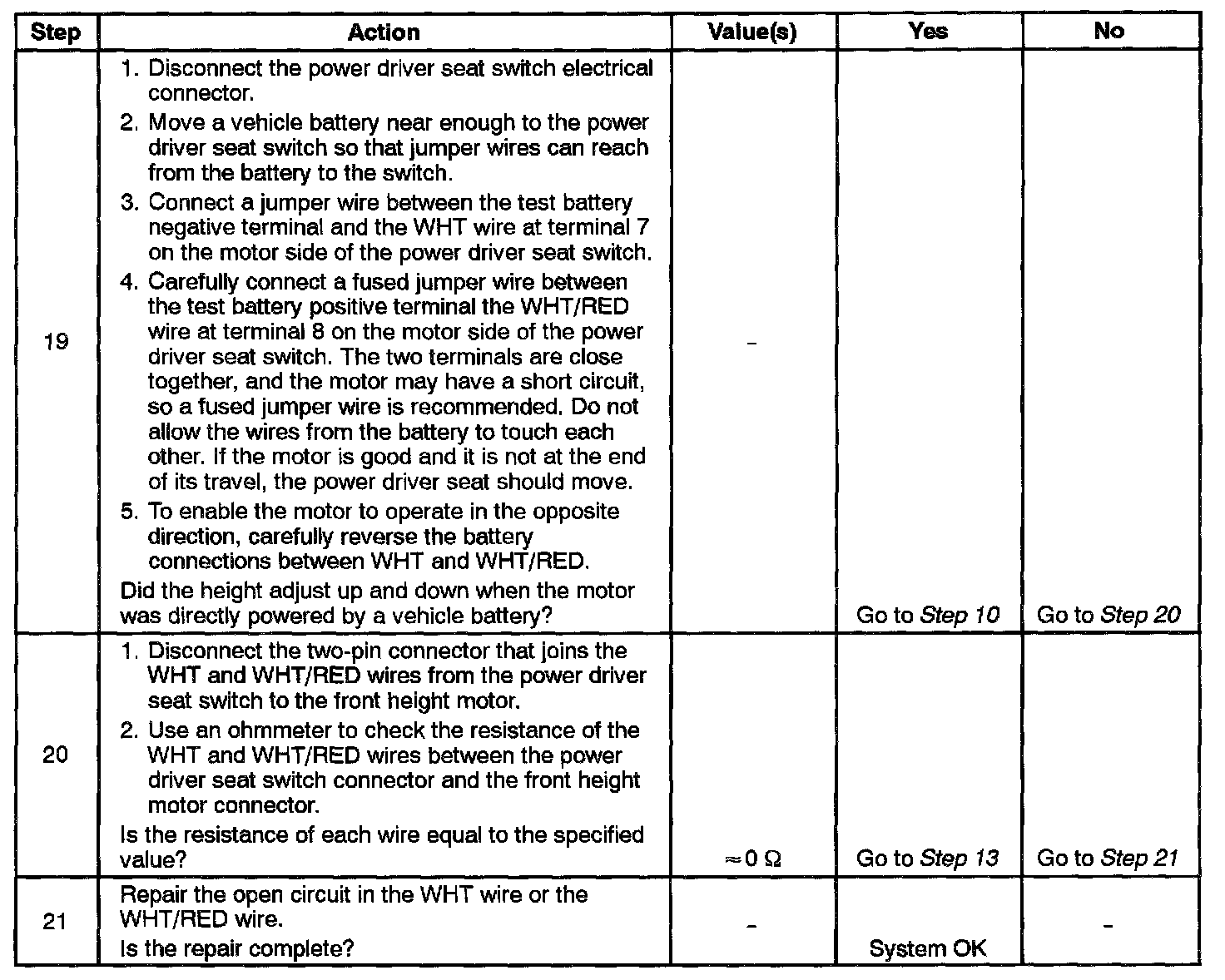

Step 19 - 21:
