Power Seat Motor: Service and Repair

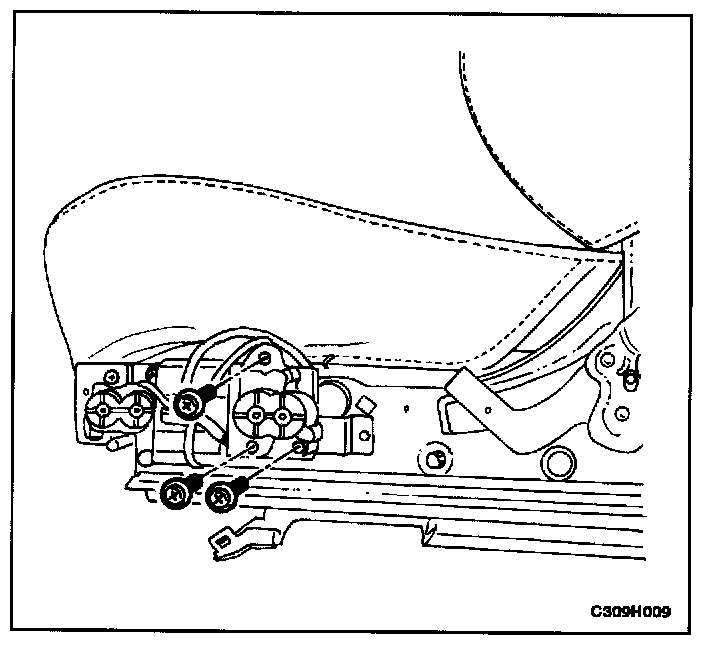

Power Driver Seat Tilt Motors

(Front Motor Shown)




Removal Procedure

1. Remove the driver seat.
2. Remove the front seat trim.
3. Remove the bolts and the motor.




Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the motor with the bolts.

Tighten
Tighten the tilt motor bolts to 13 N.m (115 lb-in).

2. Install the front seat trim.
3. Install the driver seat.
