Leganza CDX L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Connector Views
Connector Views

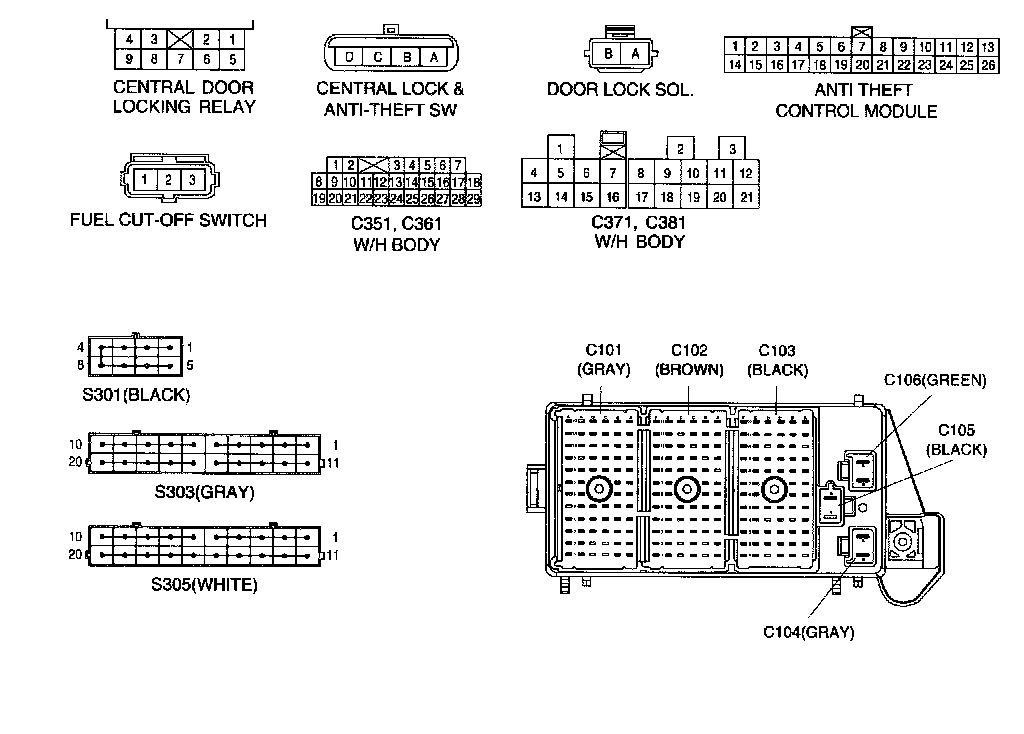

Connector Identification Symbol & Pin Number Position:

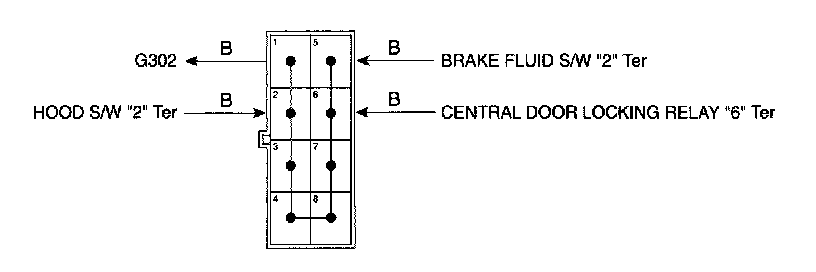

Splice Pack S301 (Black):

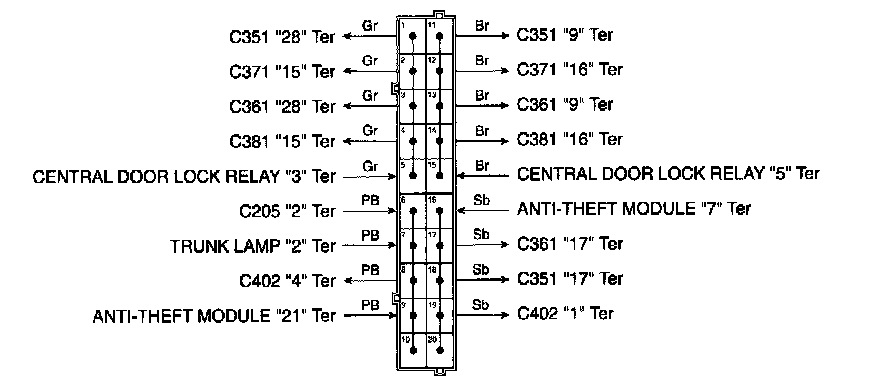

Splice Pack S303 (Gray):

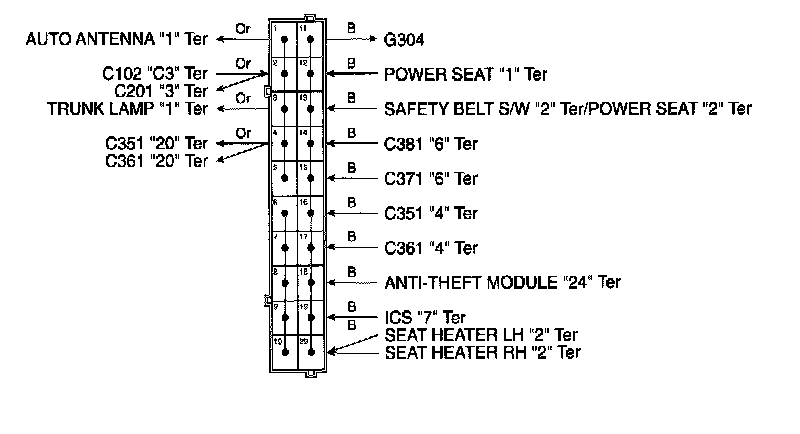

Splice Pack S305 (White):
