Headliner: Service and Repair

Formed Headliner

Tools Required

KM-475-B Trim Remover

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the sunroof molding, it equipped.
3. Remove the passenger assist handles.

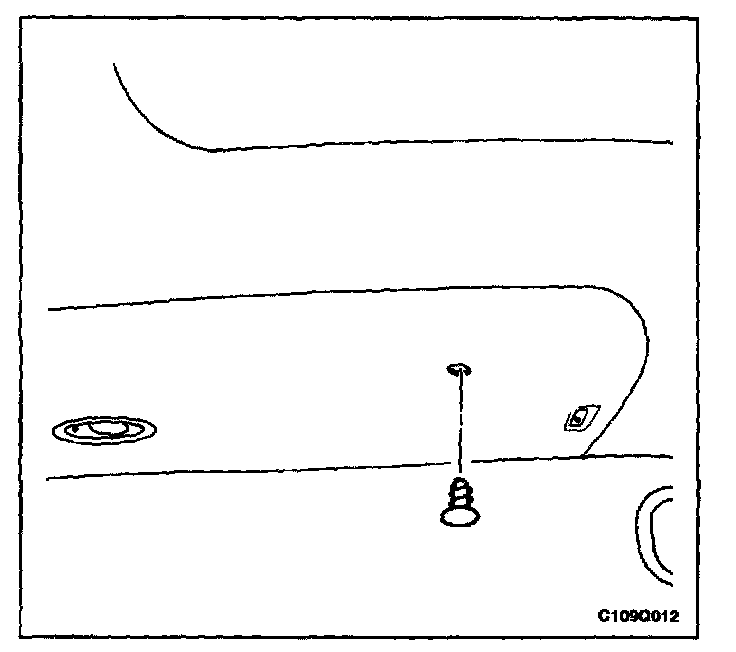

4. Remove the plastic retaining clips in the headliner on the driver's side.
5. Remove the sun visors.
6. Remove the power sunroof control switch, if equipped.
7. Remove the ultrasonic sensor.
8. Remove the A-, B-, and C-pillar trim panels.

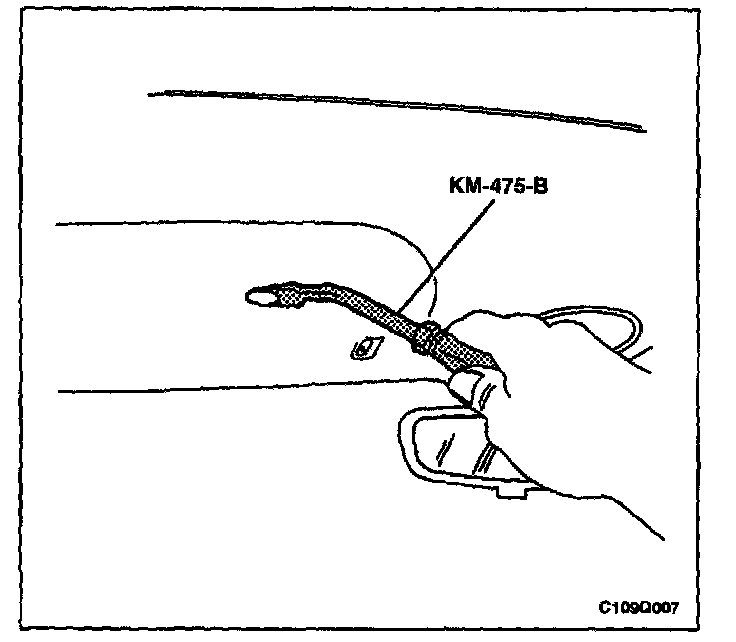

9. Remove the plastic retainers in the headliner using the trim remover KM-475-B.
10. Recline both front seats.

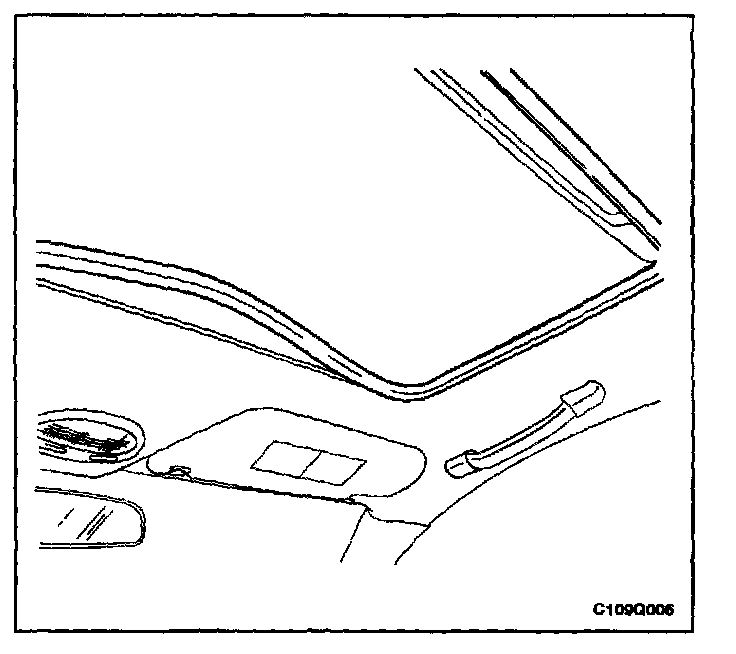

11. Remove the headliner through a rear door.

Installation Procedure




1. Recline both front seats

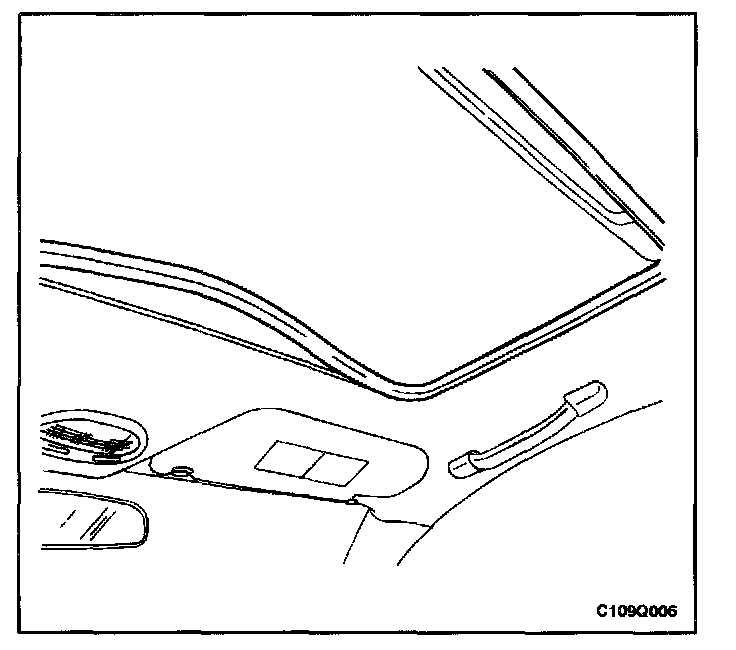

2. Insert the headliner through a rear door.
3. Install the headliner behind the seals around the doors.
4. Install the plastic retainers.




5. install the A-, B-, and C-pillar trim panels.
6. Install the power sunroof switch, it equipped.
7. Install the sun visors.
8. Install the plastic retainers in the headliner on the driver's side.
9. Install the passenger assist handles.
10. Install the ultrasonic sensor.
11. Install the sunroof molding, if equipped.
12. Connect the negative battery cable.
