Code 3 - Coolant Temperature Sensor Error

Step 1 - 5:

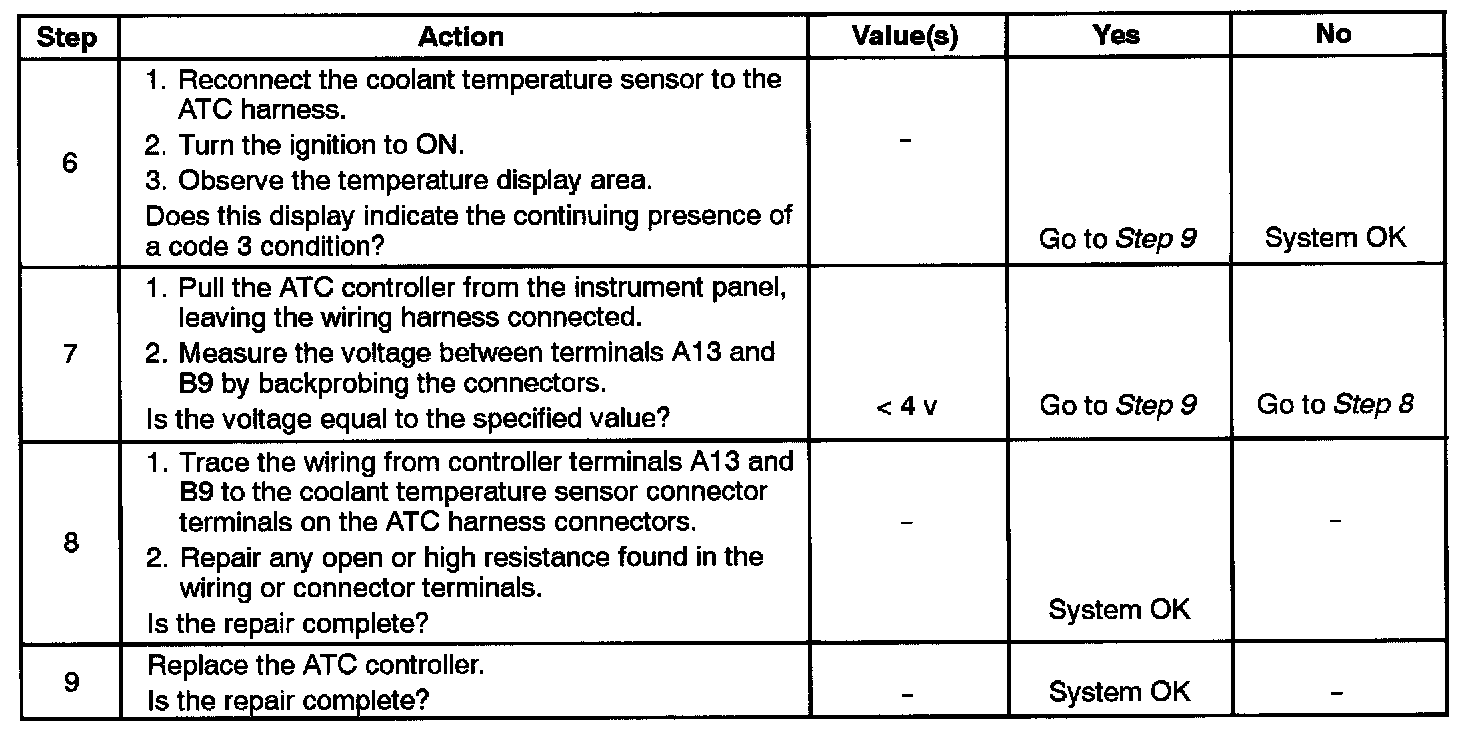

Step 6 - 9:

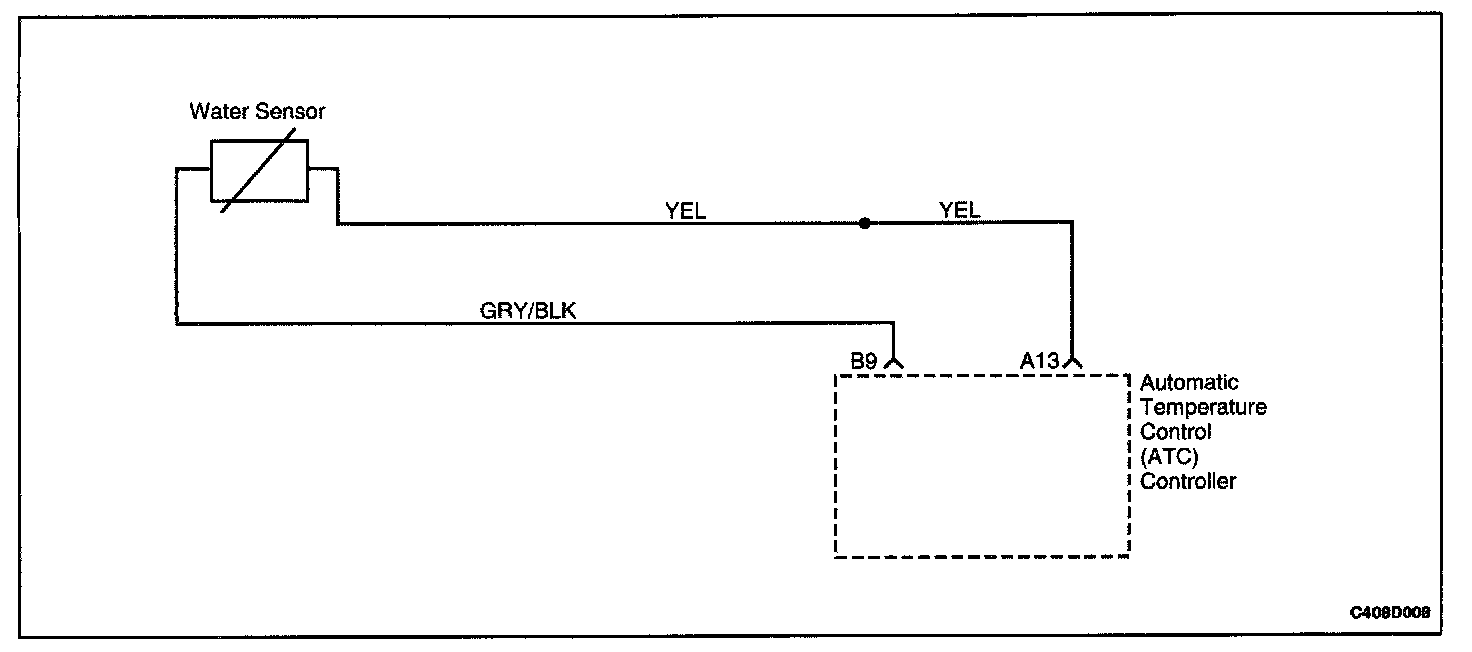

This code will set if the output of the coolant sensor indicates a probable short circuit, an open in the sensor or the associated wiring harness, or a malfunction of the ATC controller.
