Heater Control Valve Cable: Service and Repair

HVAC CABLES

REMOVAL PROCEDURE

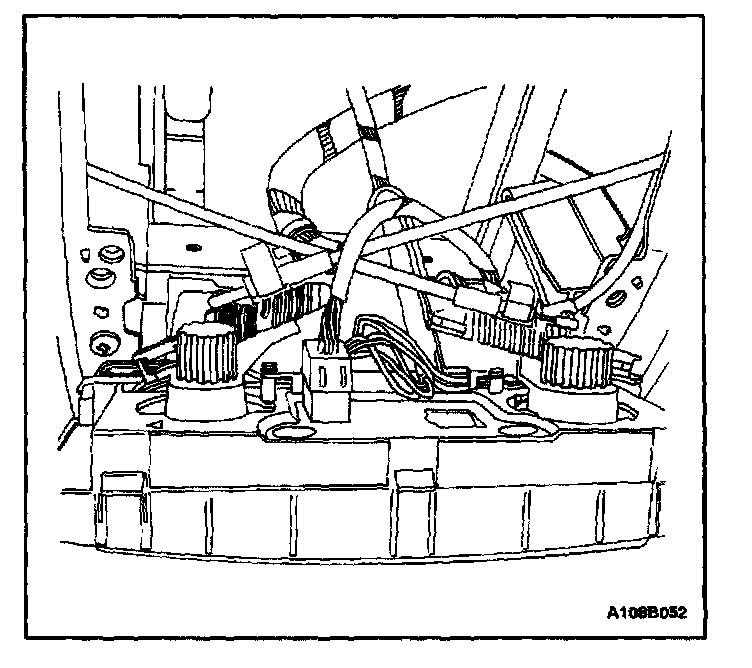

1. Disconnect the negative battery cable.

2. Remove the audio system. Refer to Audio Systems.
3. Remove the HVAC controller. Refer to "Control Assembly".
4. Disconnect the heater/defrost cable eyelet from the post.




5. Snap the cable housing clip out of the slide position.




6. Remove the dash end trim panel.

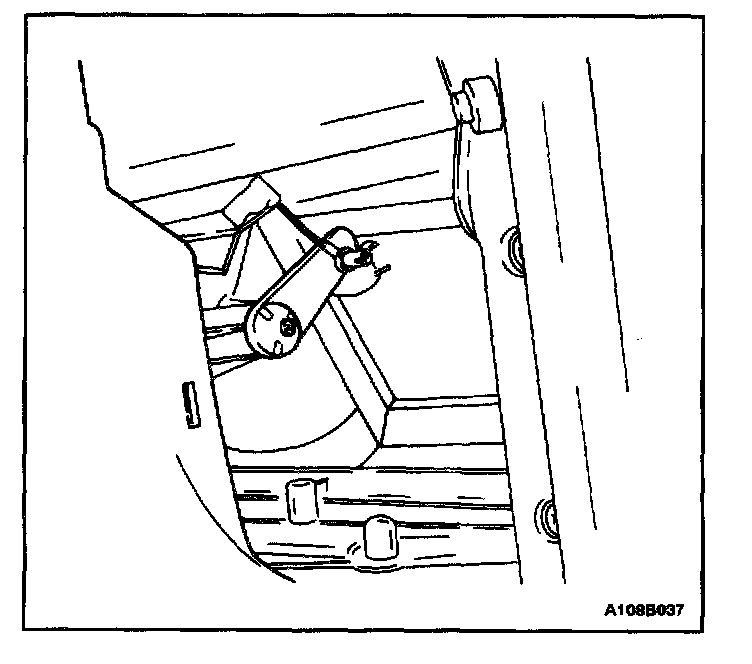

7. Disconnect the vehicle recirculating/fresh air door cable through the dash end panel opening by gently removing the cable eyelet from the post and snapping the housing clip from the retainer.

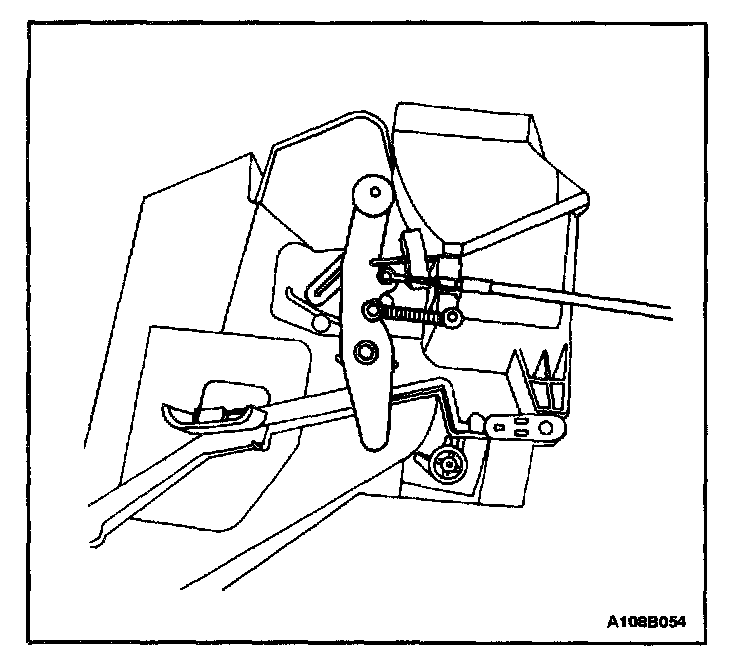

8. Repeat the procedure for the temperature control cable which is accessed from the lower passenger compartment.

INSTALLATION PROCEDURE

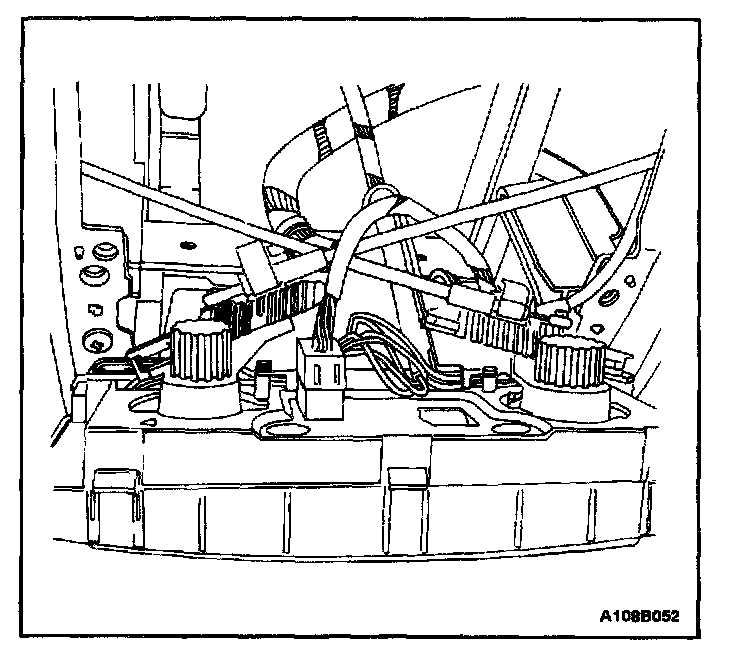

1. Connect the vehicle recirculating/fresh air door cable to the appropriate door by attaching the eyelet to the post and the cable housing to the slide.




2. Move the cable to verify the smooth operation and function of the door and the cable.

3. Install the remaining cables.
4. Install the HVAC controller. Refer to "Control Assembly".
5. Install the audio system. Refer to Audio Systems.
6. Install the dash end panel.
7. Connect the negative battery cable.
8. Operate the heating/cooling systems to verify proper function.
