Windshield Washer Hose: Service and Repair

WINDSHIELD WASHER HOSES

REMOVAL PROCEDURE




1. Open the hood.

2. Disconnect the windshield washer hose from the washer nozzles on the hood.

3. Remove the front left wheel. Refer to Tires and Wheels.

4. Remove the screws and the front wheel well splash shield.

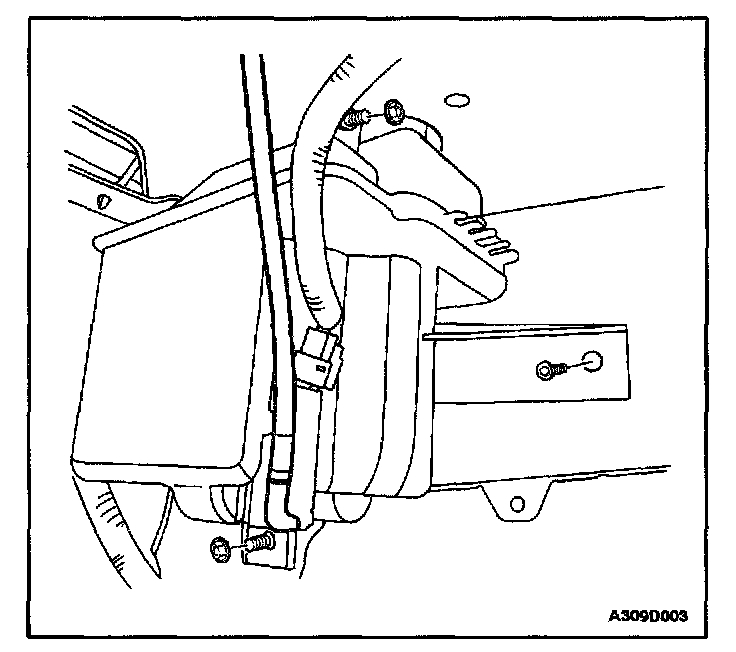

5. Disconnect the washer hose from the washer reservoir.

INSTALLATION PROCEDURE

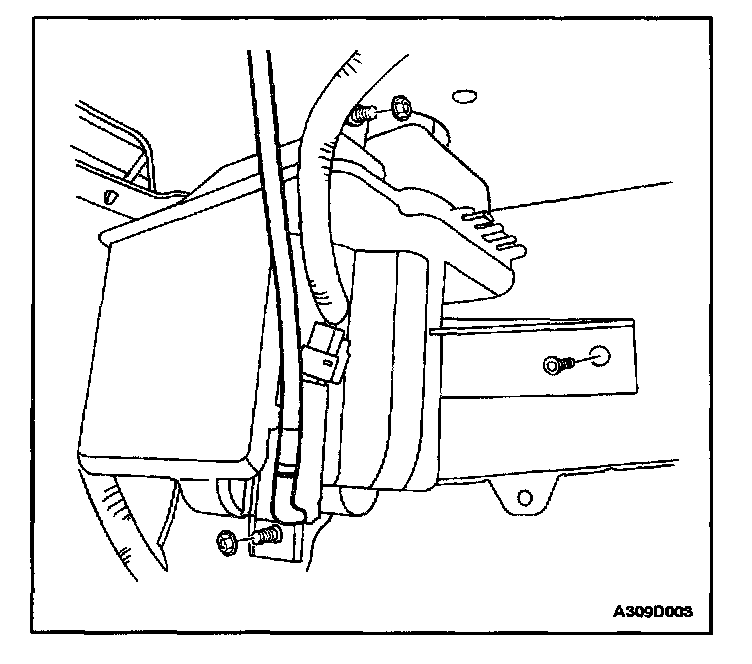

1. Connect the washer hose to the washer reservoir.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

2. Install the front wheel well splash shield with the screws.

Tighten
Tighten the front wheel well splash shield screws to 1.5 N.m (13 lb-in).

3. Install the front left wheel. Refer to Tires and Wheels.

4. Connect the windshield washer hose to the washer nozzles on the hood.

5. Close the hood.
