Transmission Mount: Service and Repair

TRANSAXLE MOUNT
- Tools Required

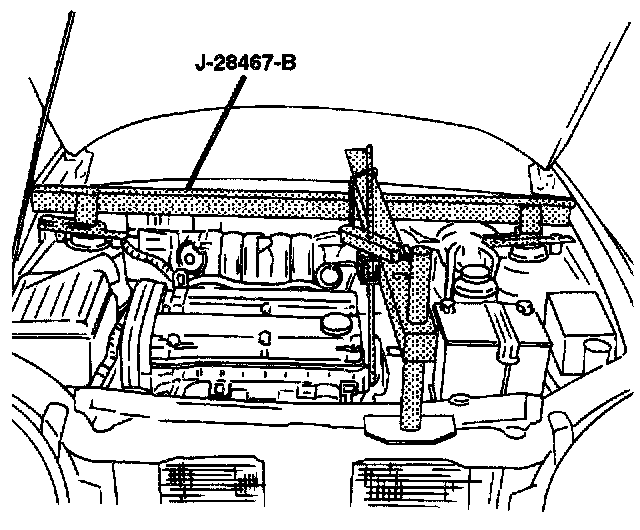

- J-2&467-B Engine Support Fixture

Removal Procedure
1. Disconnect the negative battery cable.





2. Install the engine support fixture J-28467-B.
3. Raise and suitably support the vehicle.
4. Remove the left front wheel.
5. Remove the left side under cover.

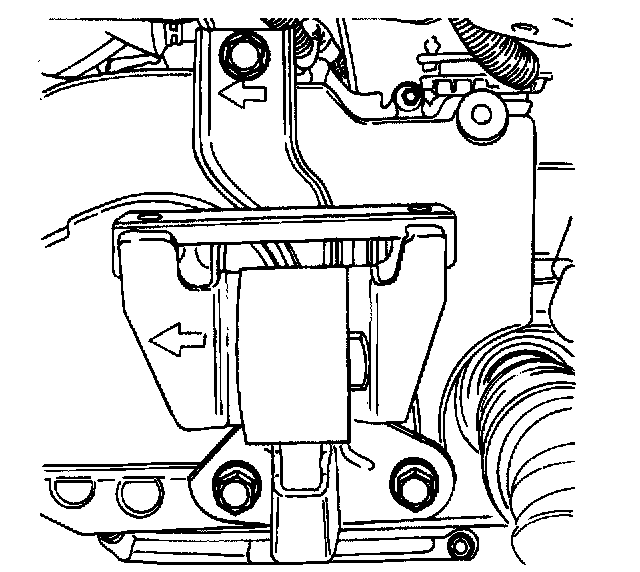

6. Remove the bolts from the transaxle mount.





7. Remove the bolts from the frame and remove the transaxle mount.

Installation Procedure

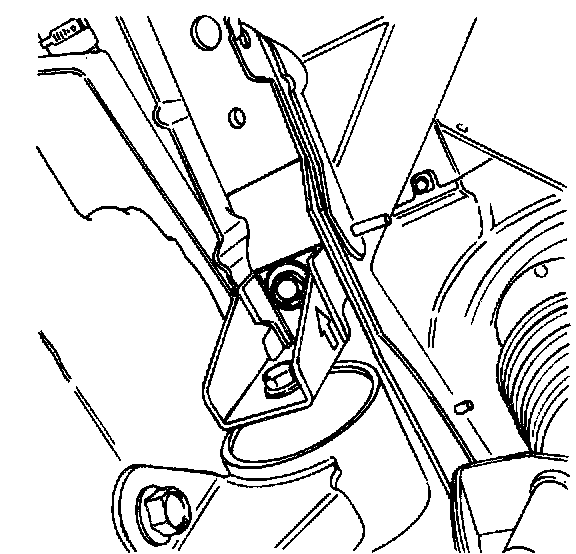

1. Install the transaxle mount and the transaxle mount bolts.
- Tighten the transaxle mount bolts to 75 Nm (55 ft. lbs.).
2. Raise the engine.

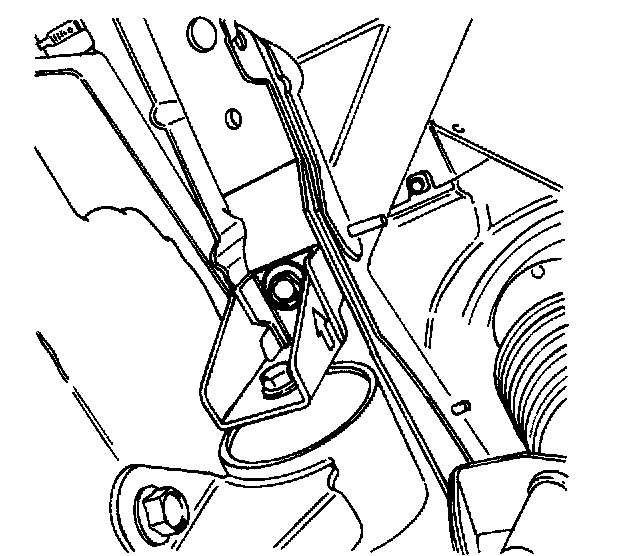

3. Install the bolts to the frame.
- Tighten the frame bolts to 75 Nm (55 ft. lbs.).
4. Install the left side splash shield.
5. Install the left front wheel.
6. Lower the vehicle.

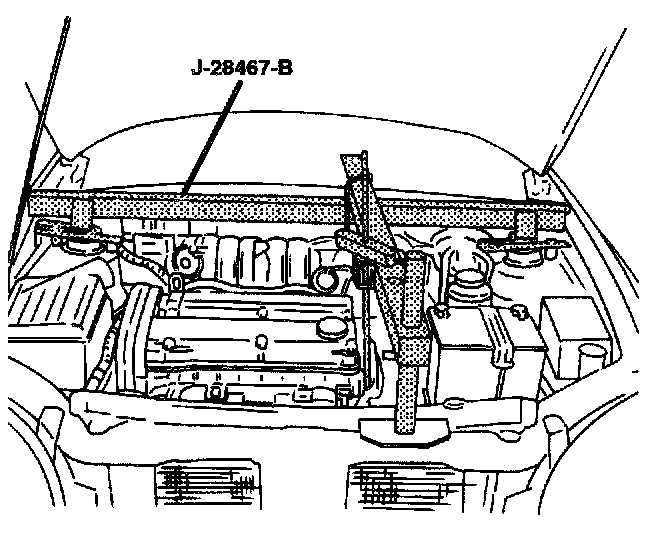

7. Remove the engine support fixture J-28467-B.
8. Refill the transaxle fluid.
9. Connect the negative battery cable.
