Shift Cable: Service and Repair

Removal Procedure
1. Disconnect the negative battery cable.

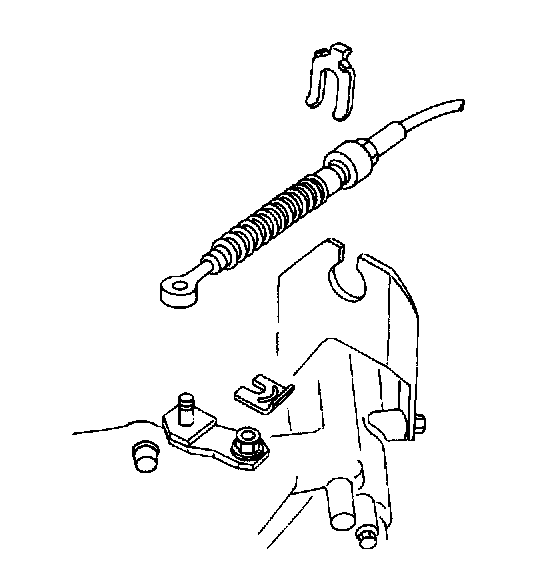

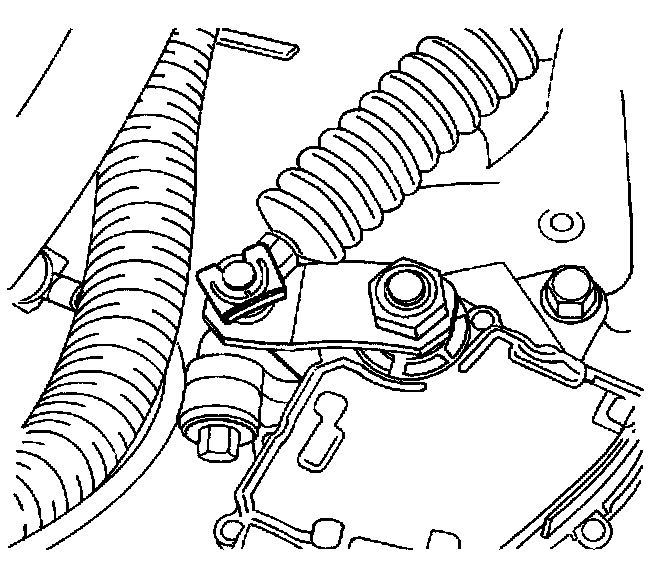

2. Disconnect the shift control cable from the shift lever.





3. Disconnect the shift control cable from the bracket.





4. Remove the front part of the floor console.

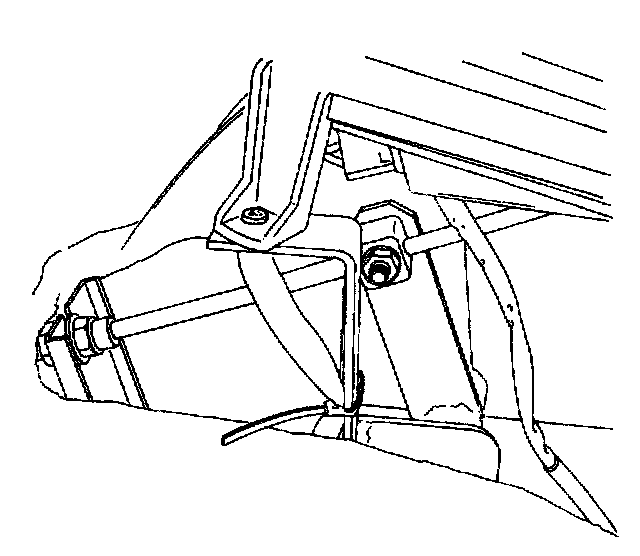

5. Loosen the floor bracket bolt.





6. Loosen the shifter cable nut.
7. Remove the shift control cable from the floor bracket and the shifter post.
8. Remove the shift control cable through the firewall.

Installation Procedure
1. Install the shift control cable through the firewall.

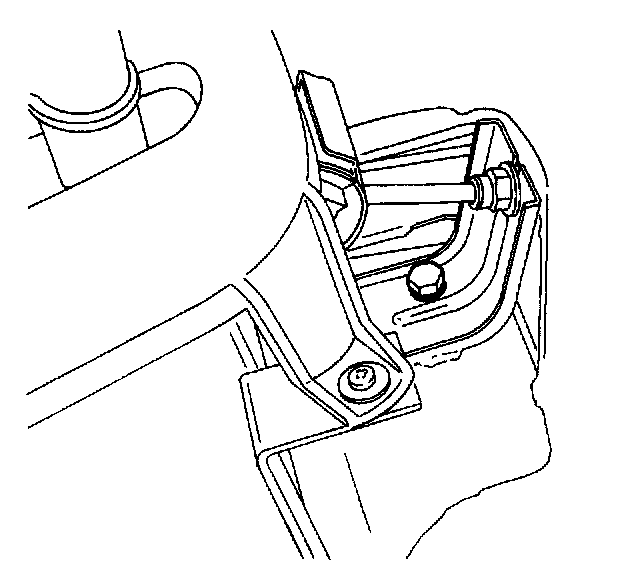

2. Install the shift control cable through the floor bracket and the shifter post.
3. Tighten the shifter cable nut.

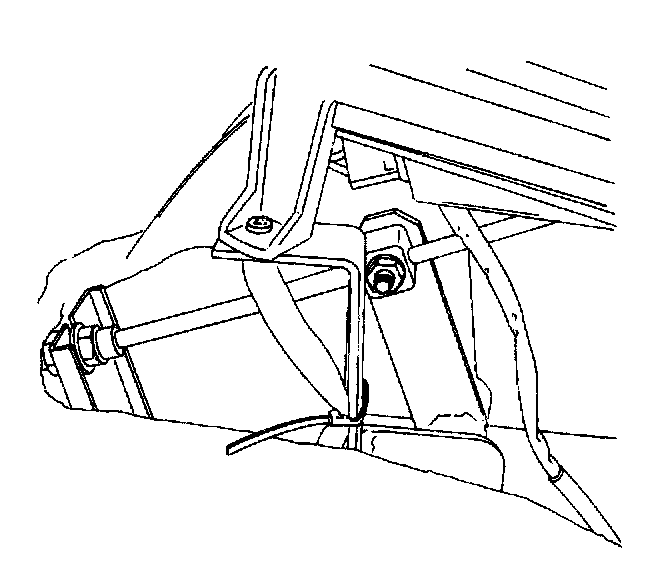

4. Tighten the floor bracket bolt.
- Tighten the floor bracket bolt to 8 Nm (71 inch lbs.).

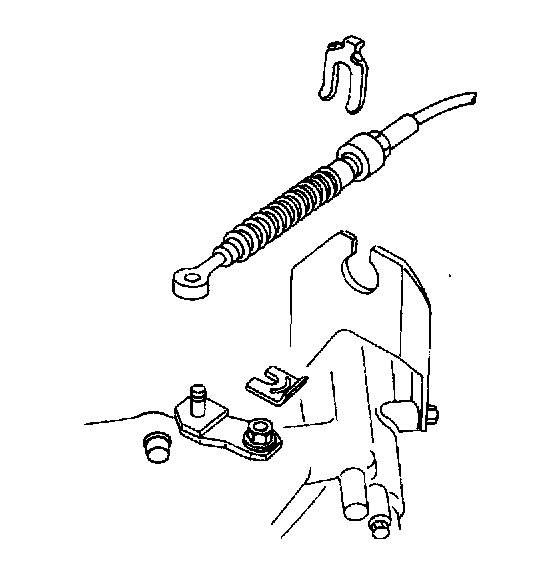

5. Install the shift control cable into the engine compartment bracket and secure with the clip.
6. Install the front part of the floor console.





7. Install the shift control cable onto the shift lever and secure with the clip.
8. Connect the negative battery cable.
