Brake Transaxle Shift Interlock

BRAKE TRANSAXLE SHIFT INTERLOCK

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the center console.

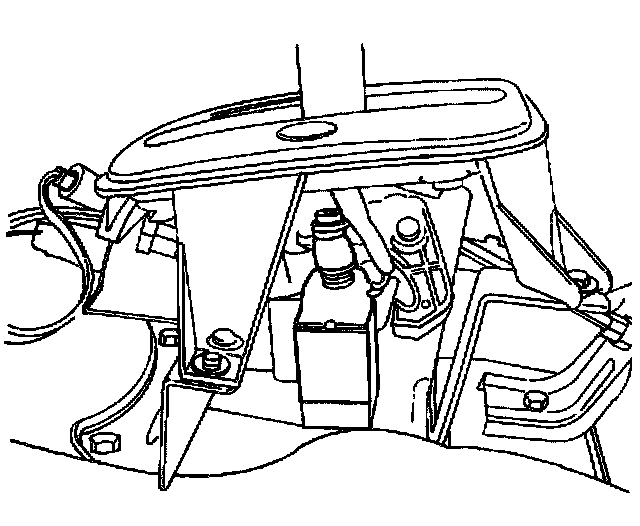

3. Disconnect the electrical connector from the shift interlock solenoid.

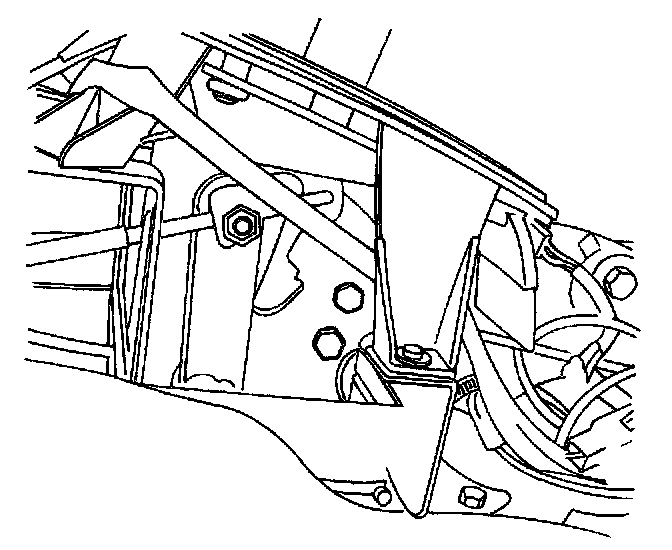

4. Remove the shift interlock solenoid bolts.





5. Remove the shift interlock solenoid.

Installation Procedure

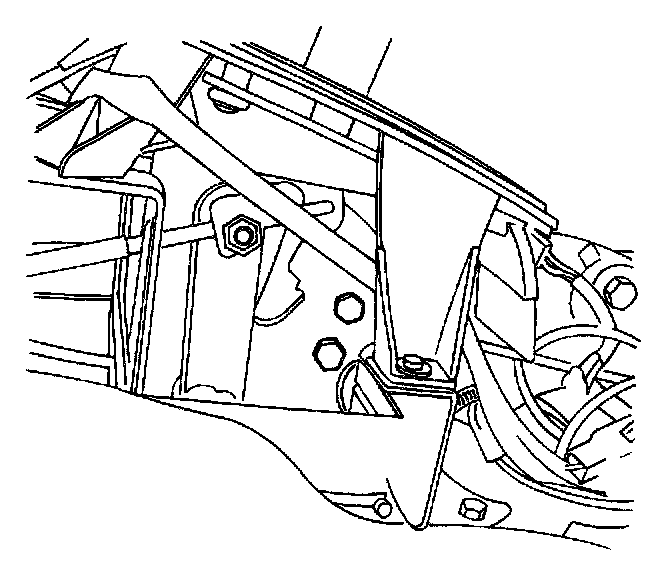

1. Install the shift interlock solenoid and the shift interlock solenoid bolts.
2. Connect the electrical connector to the shift interlock solenoid.
3. Install the center console.
4. Connect the negative battery cable.
