Harness Locations

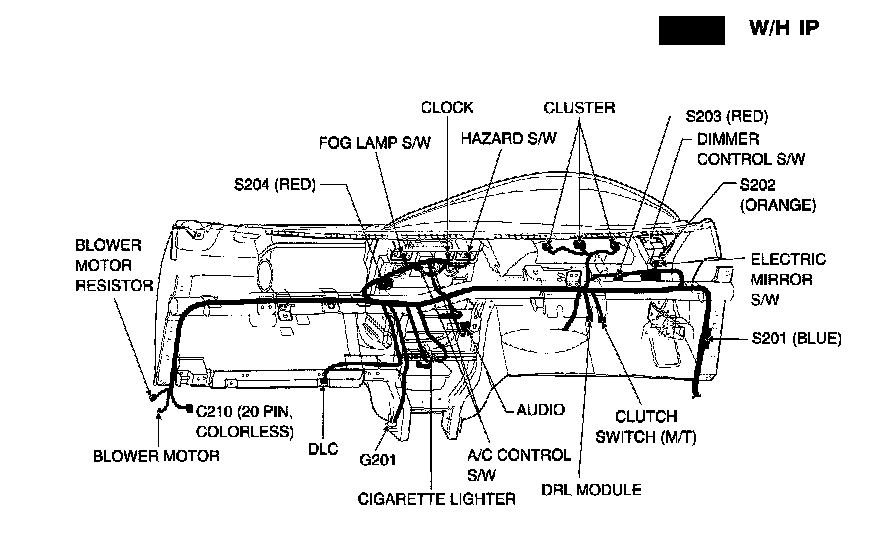

Position Of Connectors And Grounds - Instrument Panel Inside:

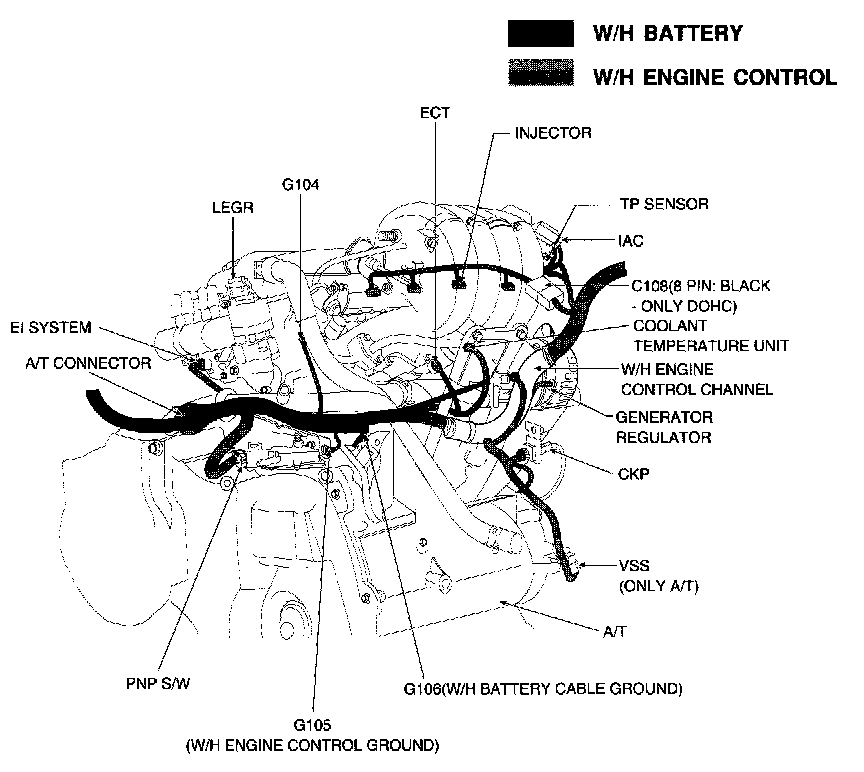

Position Of Connectors And Grounds - DOHC Engine:
