Direct/Coast Clutch and Reaction Gear Set Removal

DIRECT/COAST CLUTCH AND REACTION GEAR SET REMOVAL

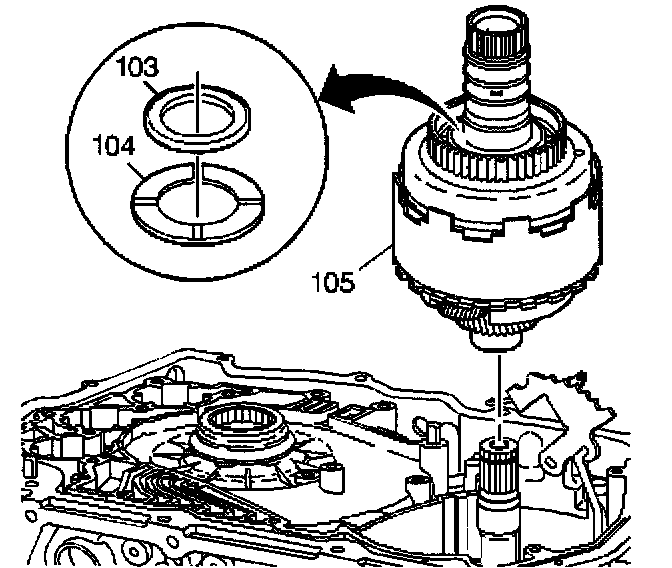

Important: Keep the bearing assembly (103) and the selective thrust washer (104) on top of the direct/coast clutch and reaction carrier assembly (105).





Remove the direct/coast clutch and reaction carrier assembly (105).
