Evaporative Emission Control Canister: Service and Repair

Evaporative Emission Canister

Removal Procedure






CAUTION: Canister and vacuum hoses contain fuel vapors. Do not smoke in the area or permit an open flame.

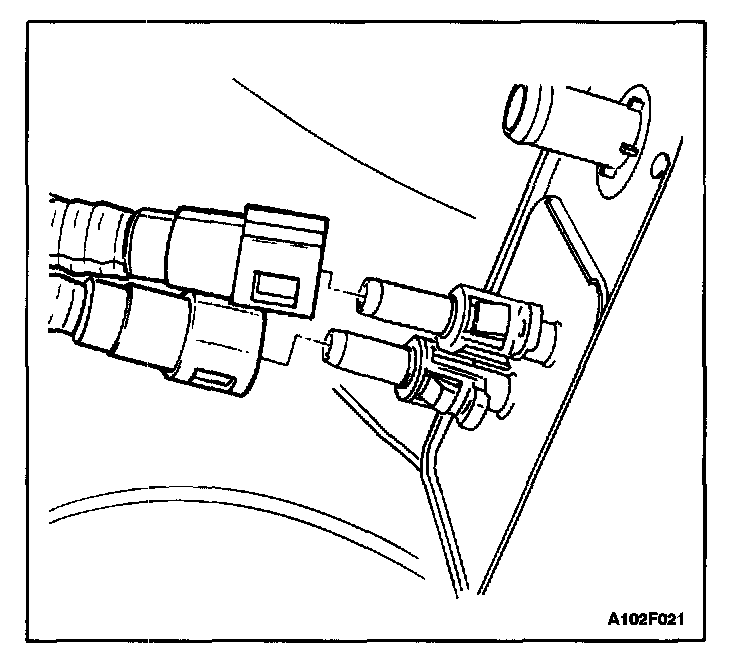

1. Disconnect the evaporative (EVAP) emission canister fuel vapor hoses.

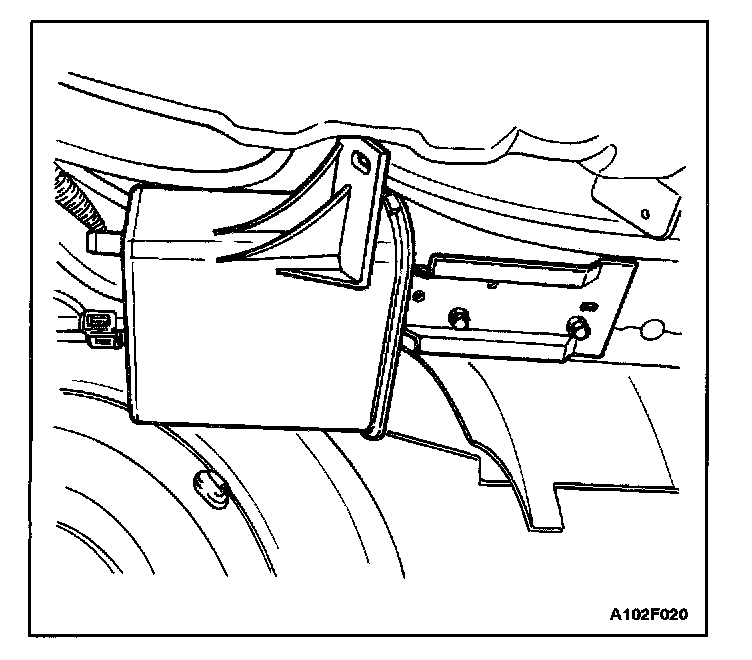

2. Remove the bolt securing the EVAP emission canister flange to the vehicle.
3. Slide the EVAP emission canister out of the track holder.
4. Remove the EVAP emission canister.

Installation Procedure




1. Insert the EVAP emission canister into the track and slide it into position.
2. Install the EVAP emission canister flange bolt.

Tighten
Tighten the evaporative emission canister flange bolt to 20 N.m (15 lb.ft).

3. Connect the canister fuel vapor hoses.
