Manual Control Heating, Ventilation and Air Conditioning System

REMOVAL PROCEDURE

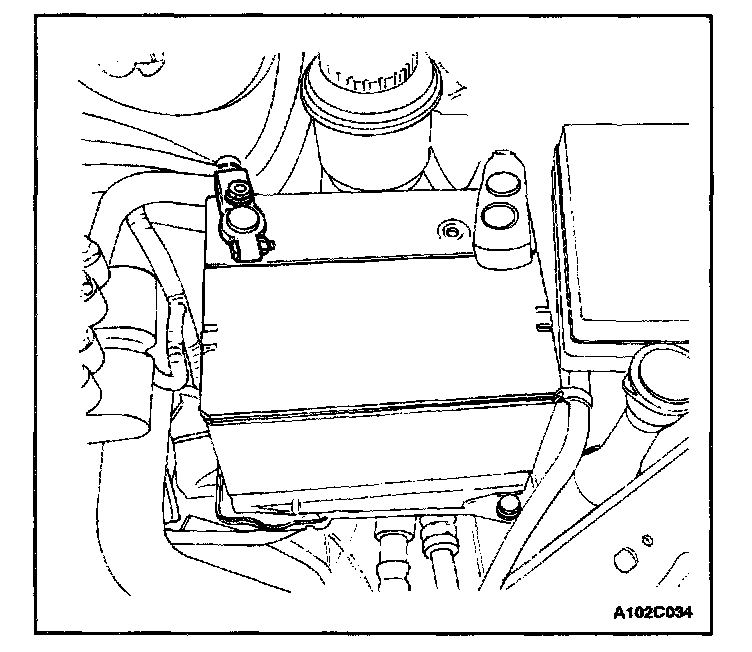

1. Disconnect the negative battery cable.

2. Remove the instrument panel carrier assembly. Refer to Instrumentation/Driver Information.

3. Remove the heater/air distribution case assembly. Refer to "Heater/Air Distribution Case Assembly".






NOTE: Handle the case carefully to avoid damage to the linkage levers.

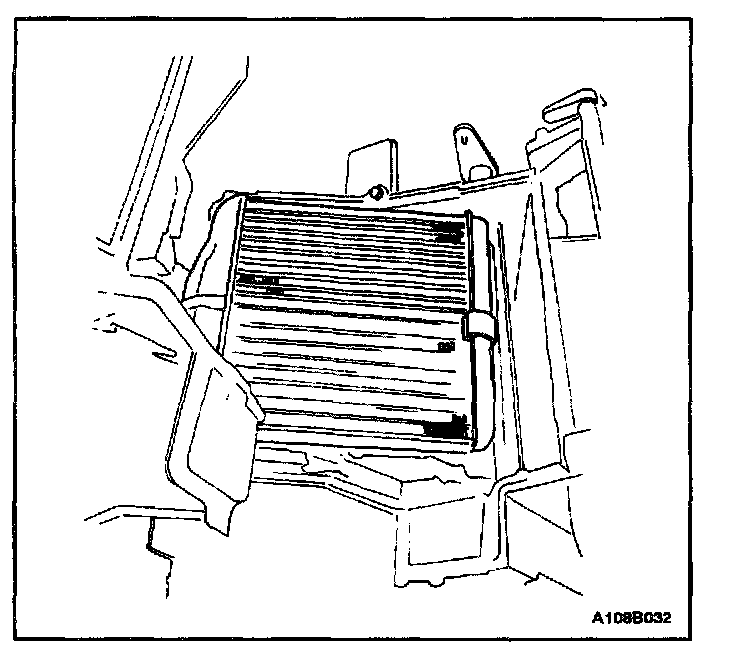

4. Remove the heater core from the heater/air distribution case assembly.

INSTALLATION PROCEDURE

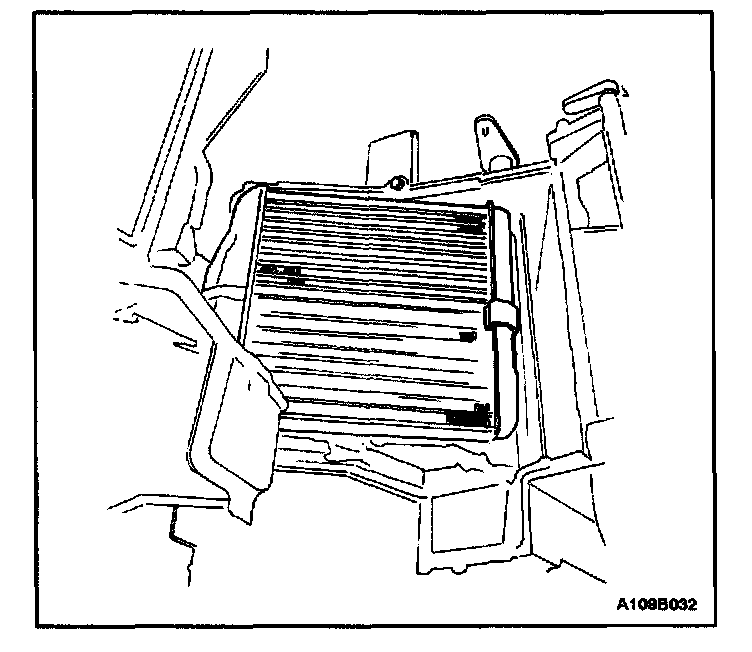

1. Install the heater core into the heater/air distribution case assembly.




2. Install the heater/air distribution case assembly. Refer to "Heater Air/Distribution Case Assembly".

3. Install the instrument panel carrier assembly. Refer to Instrumentation/Driver Information.

4. Fill the cooling system. Refer to Engine Cooling.

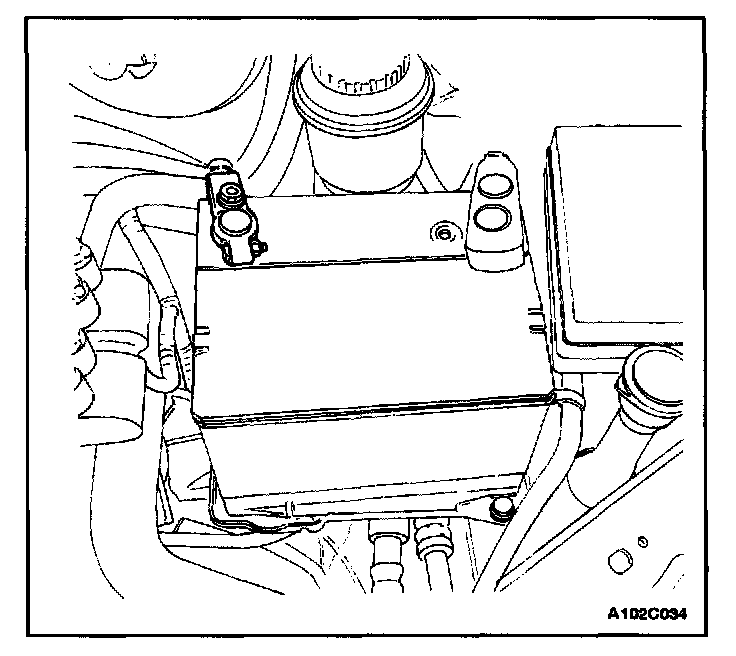

5. Connect the negative battery cable.

6. Evacuate and recharge the A/C system. Refer to "Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System".
