Evaporator Core: Service and Repair

EVAPORATOR CORE

REMOVAL PROCEDURE




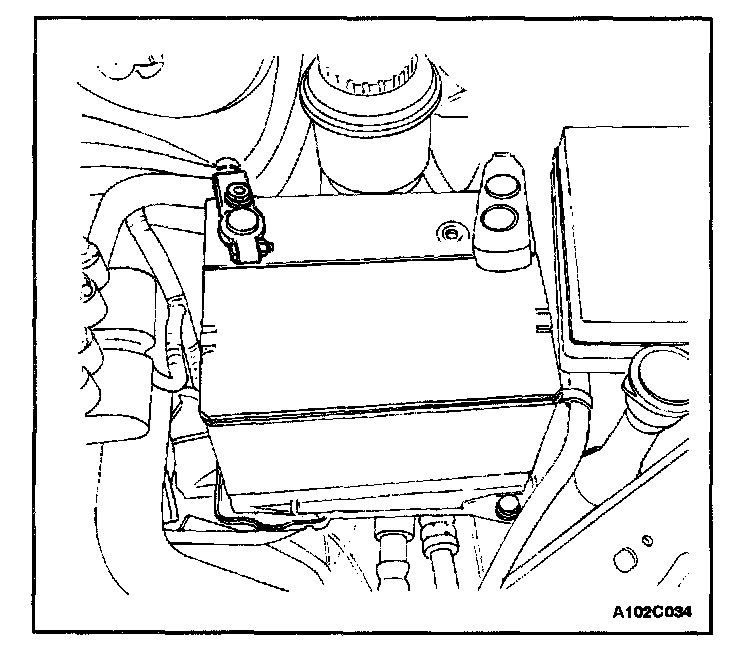

1. Disconnect the negative battery cable.

2. Remove the instrument panel carrier assembly. Refer to Instrumentation/Driver Information.

NOTE: Handle the case carefully to avoid damage to the door actuating linkage.

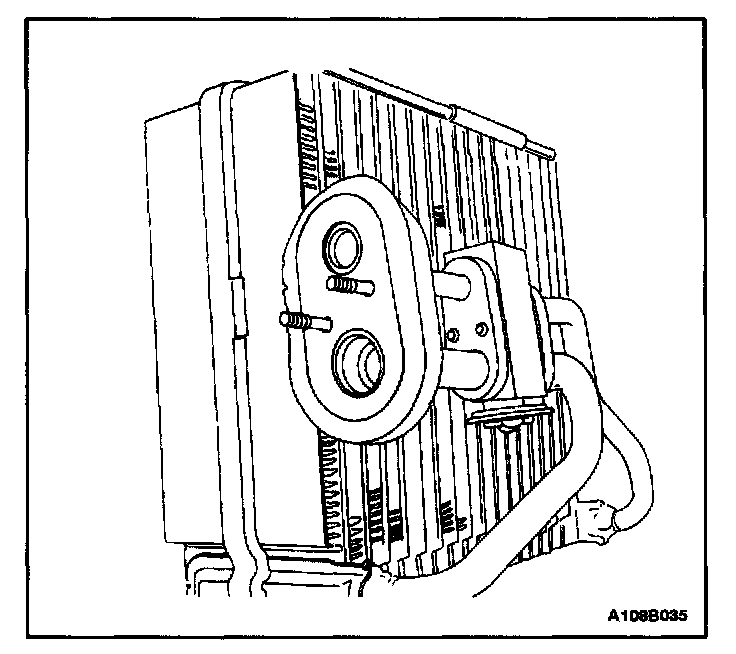

3. Remove the heater/air distribution case assembly. Refer to "Heater/Air Distribution Case".




4. Remove the screws that secure the evaporator case cover.

5. Remove the cover.

6. Slide the evaporator flange support plate upward to facilitate evaporator removal.

7. Remove the evaporator from the case.

INSTALLATION PROCEDURE




1. Install new O-rings onto the evaporator tubes.

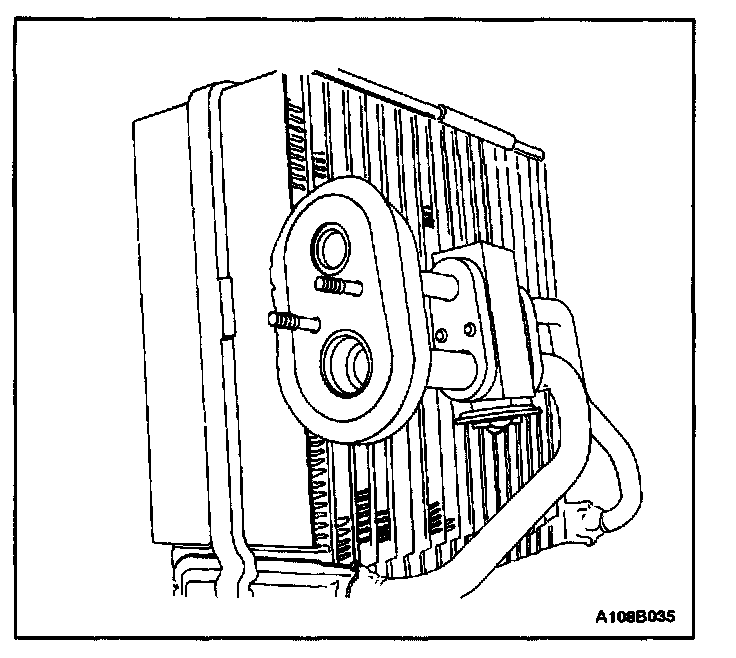

2. Install the evaporator core into the case. Center the evaporator flange in the case opening.




3. Install the evaporator core case cover with the screws.

4. Install the heater/air distribution case. Refer to "Heater/Air Distribution Case".

5. Install the instrument panel carrier assembly. Refer to Instrumentation/Driver In formation.

6. Connect the negative battery cable.

7. Evacuate and recharge the A/C system. Refer to "Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System".
