Air Conditioner Control Switch Circuit
Air Conditioner Control Switch Circuit

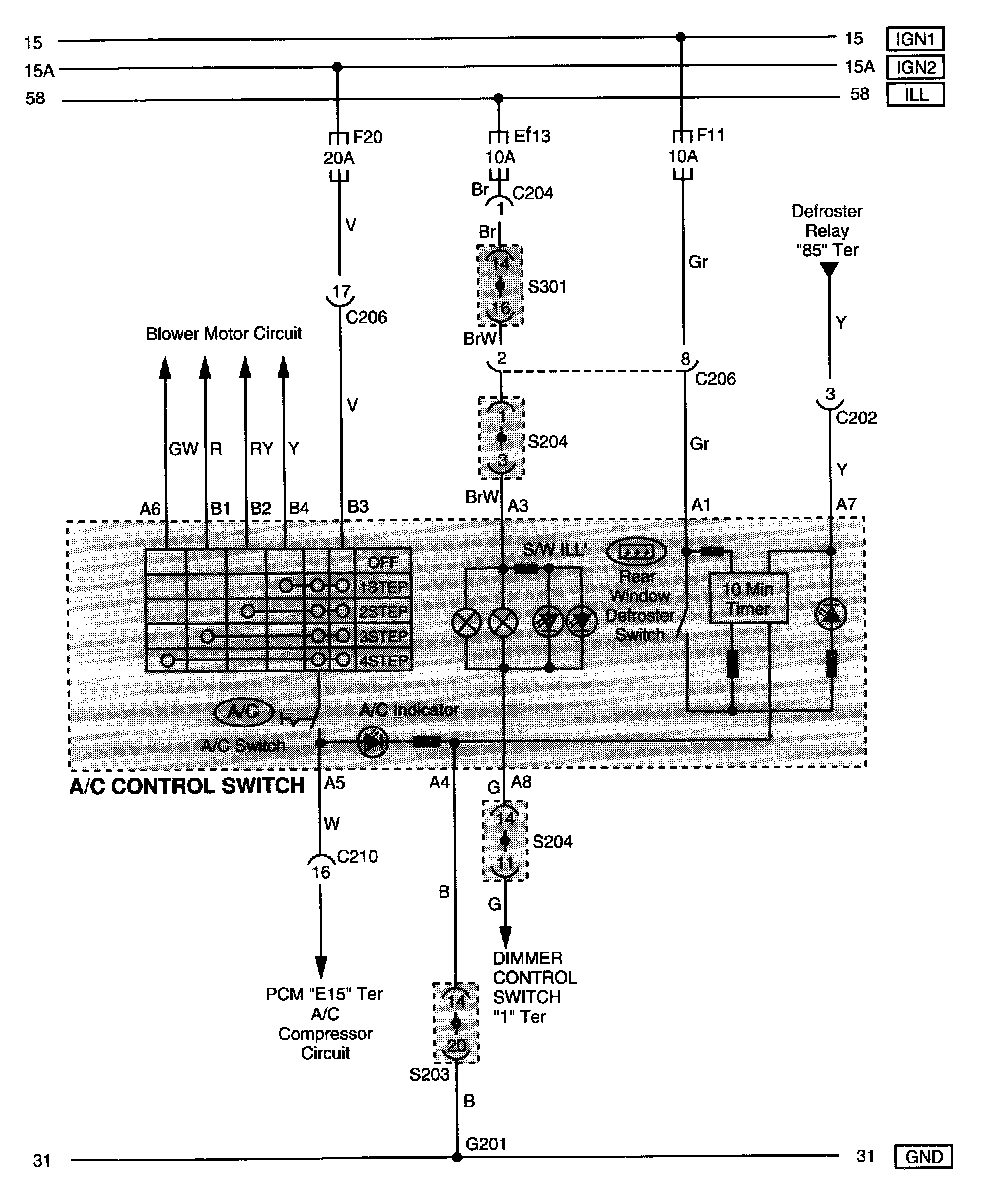

Electrical Wiring Diagram:
