Sun Visor: Service and Repair

SUN VISORS

REMOVAL PROCEDURE

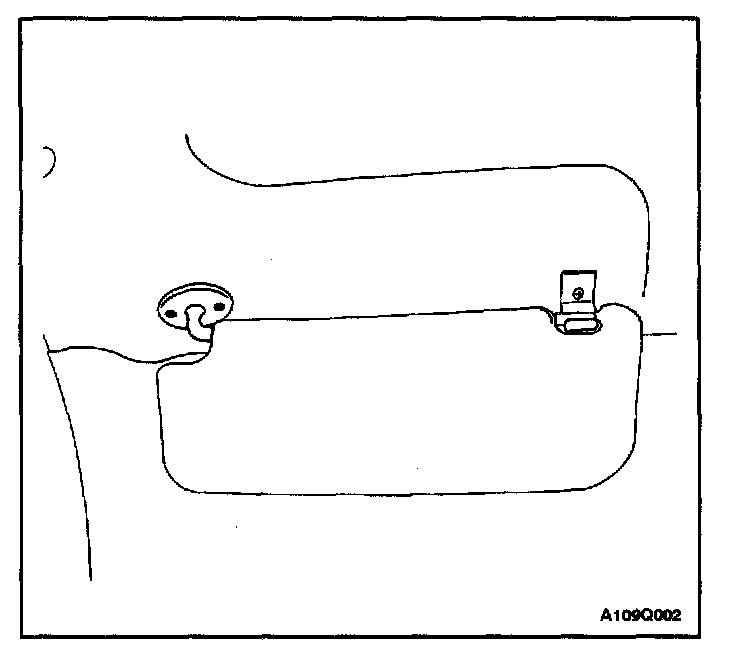

1. Remove the screws and the sun visor from the head liner.

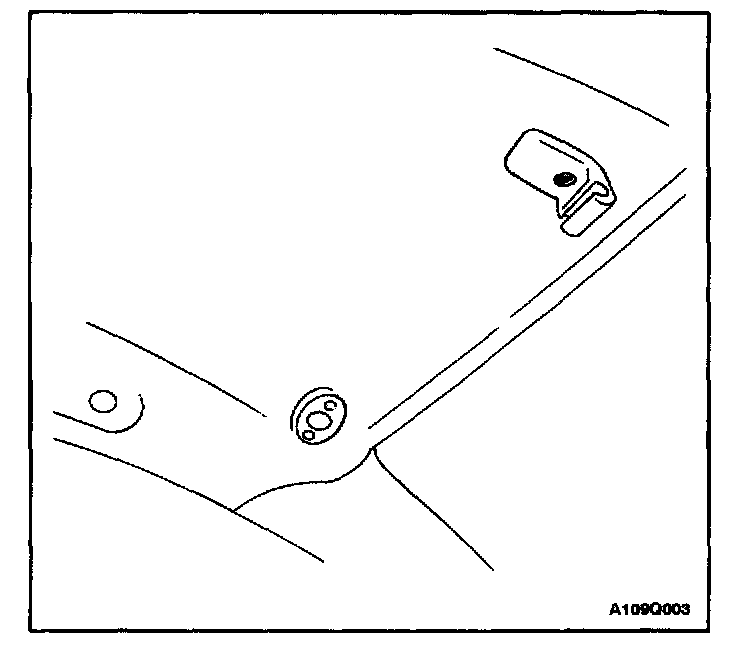

2. Remove the screw and the sun visor support from the headliner.

INSTALLATION PROCEDURE






NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

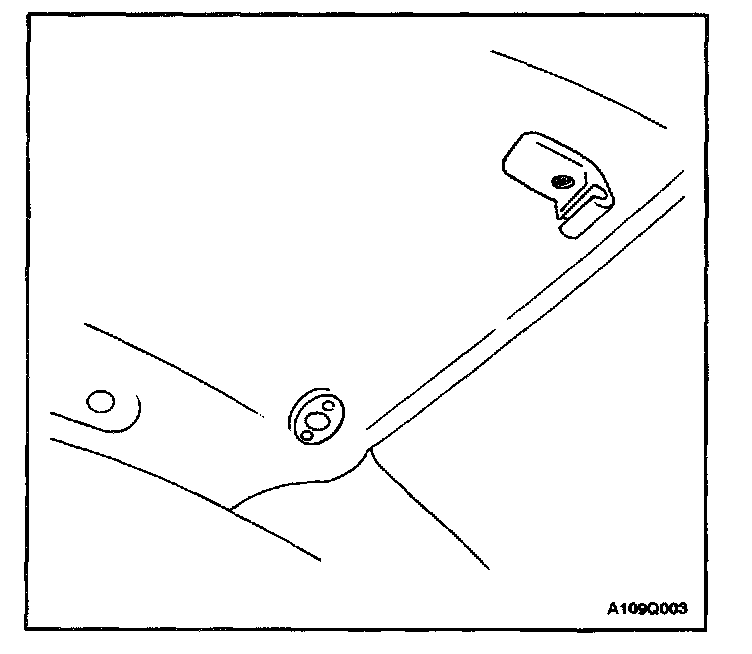

1. Install the sun visor support to the headliner with the screw.

Tighten
Tighten the sun visor support screw to 1.5 N.m (13 lb-in).

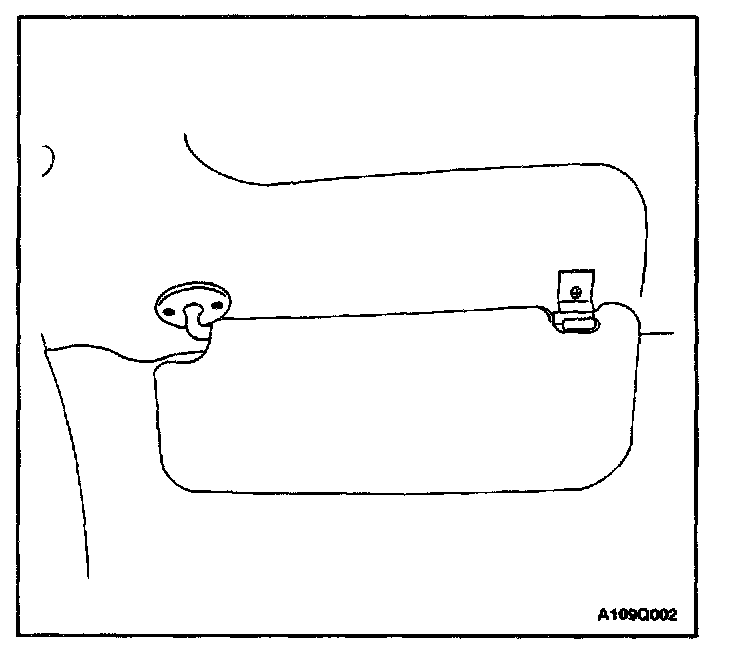

2. Install the sun visor to the headliner with the screws.

Tighten
Tighten the sun visor screws to 1.5 N.m (13 lb-in).
