Passenger Assist Handle: Service and Repair

PASSENGER ASSIST HANDLES

REMOVAL PROCEDURE

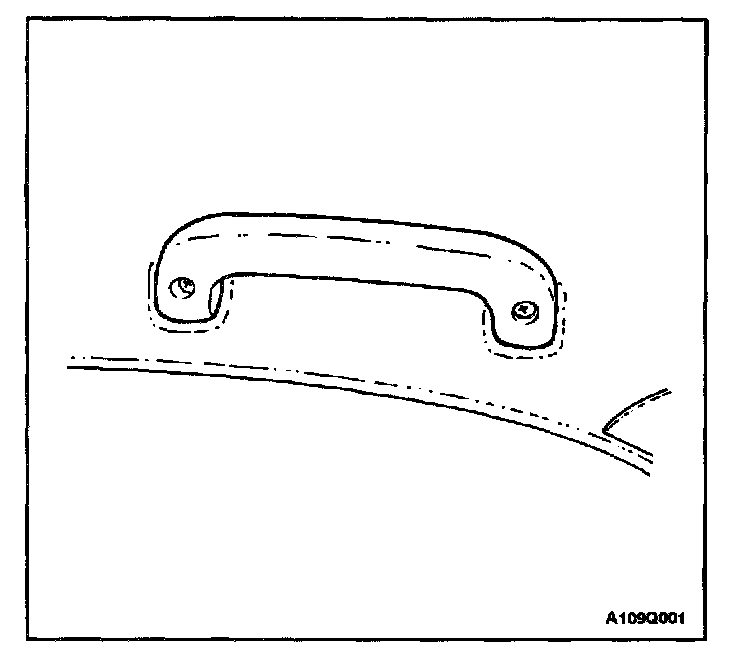

1. Remove the screws and the assist handle from the headliner.

INSTALLATION PROCEDURE






NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

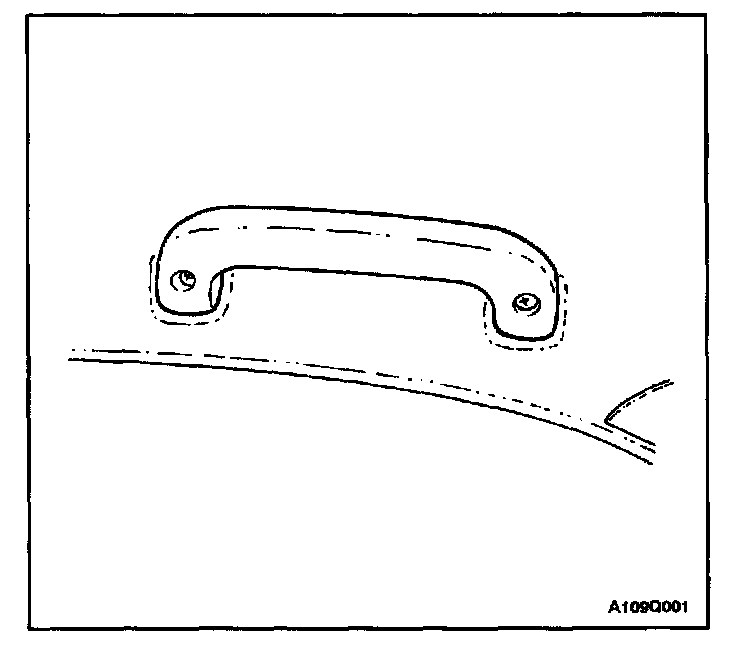

1. Install the assist handle to the headliner with the screws.

Tighten
Tighten the passenger assist handle screws to 3.5 N.m (31 lb-in).
