Installation

INSTALLATION





1. Install the shock absorber (1) onto the lower control arm then install the bolt and nut (2). Tighten to 55 Nm (41 ft. lbs.).




2. Install the lower control arm plastic cover and bolt (1).
3. Slowly lower the vehicle while guiding the top of the shock into the mounting hole in the frame.

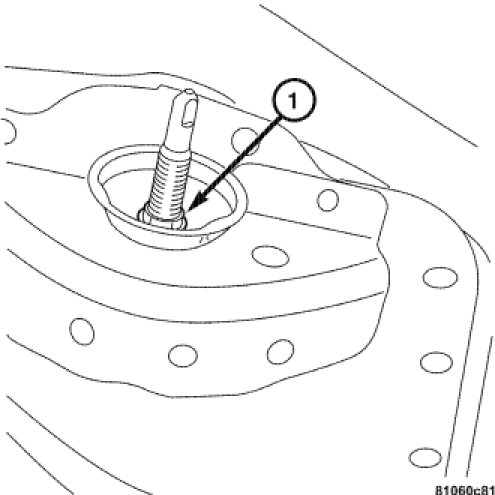

4. Install the top shock absorber mounting hardware (1). Tighten to 18 Nm (13 ft. lbs.).
