Steering Damper - Installation

DAMPER - LHD





1. Install the steering damper into the vehicle.
2. Install the nut and bolt to the drag link. Tighten to 40 Nm (29 ft. lbs.).

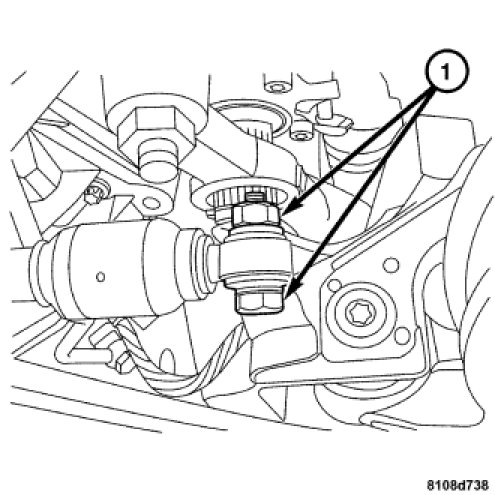

3. Install the bolt and nut (1) to the steering damper bracket. Tighten to 40 Nm (29 ft. lbs.).
