Driver Knee Blocker Airbag Squib

Component ID: 73

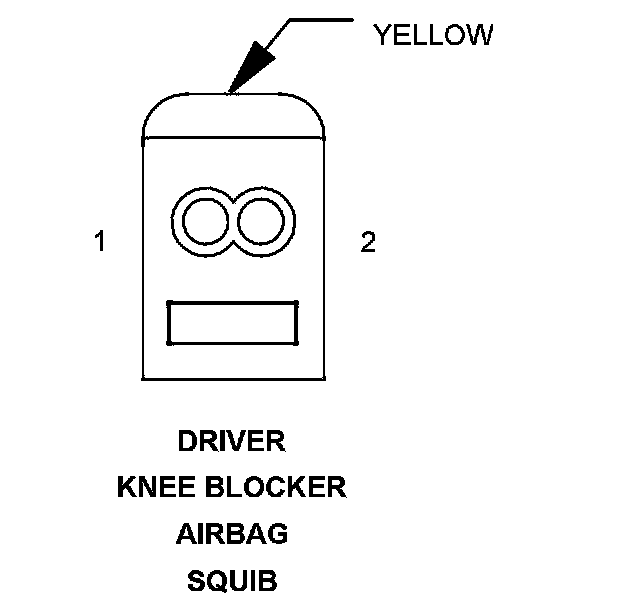

Component : DRIVER KNEE BLOCKER AIRBAG SQUIB

Connector:
Name : DRIVER KNEE BLOCKER AIRBAG SQUIB
Color : YELLOW
# of pins : 2




Pin Circuit Description
1 20YL/DG DRIVER KNEE BLOCKER SQUIB LINE 2
2 20VT/BR DRIVER KNEE BLOCKER SQUIB LINE 1
