Center Air Nozzle

CENTER AIR NOZZLE

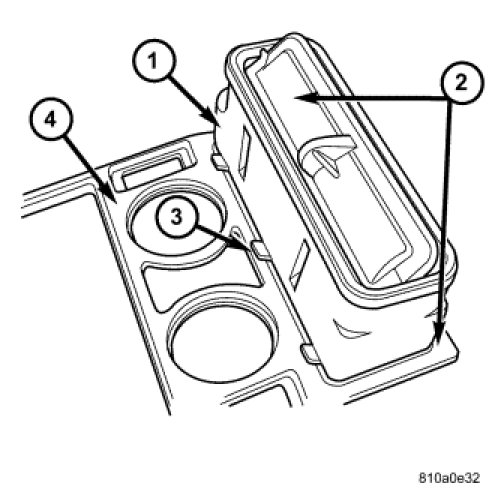

1. Remove the cover on the center console. Center Console - Removal.
2. Remove the screws attaching the center air nozzle to the center console cover (2).
3. Disconnect the air nozzle catch clips (3).
4. Remove the air nozzle from the center console cover (4).
