Rear Heat Shield







REAR HEAT SHIELD





1. Remove the muffler. Muffler - Removal.

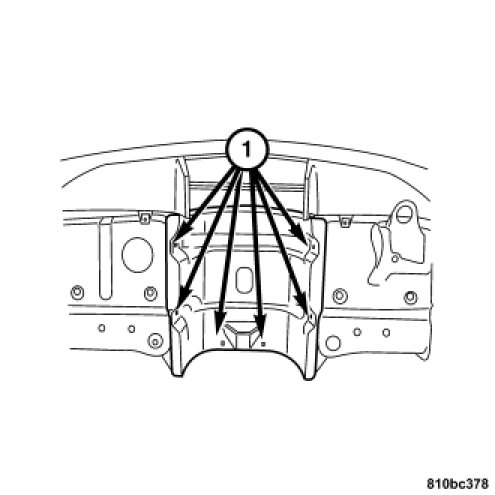

2. Remove the heat shield nuts (1) and the heat shield.
