Rear Engine Mount

INSTALLATION





1. Position the rear mount on the transmission.

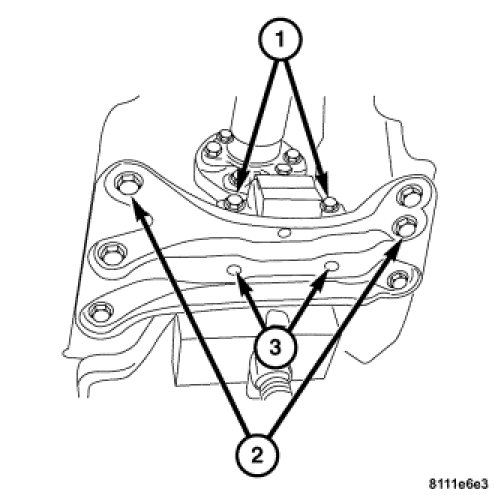

2. Install the rear mount upper bolts (1). Tighten the bolts to 40 Nm (30 ft. lbs.).
3. Lower the transmission on to the rear crossmember.
4. Install the rear mount lower bolts (3). Tighten the bolts to 40 Nm (30 ft. lbs.).
5. Remove the transmission jack.
6. Lower the vehicle.
