Front Engine Mount

INSTALLATION





NOTE: The arrows on the engine mounts must be located in the retaining slots on the engine bracket.

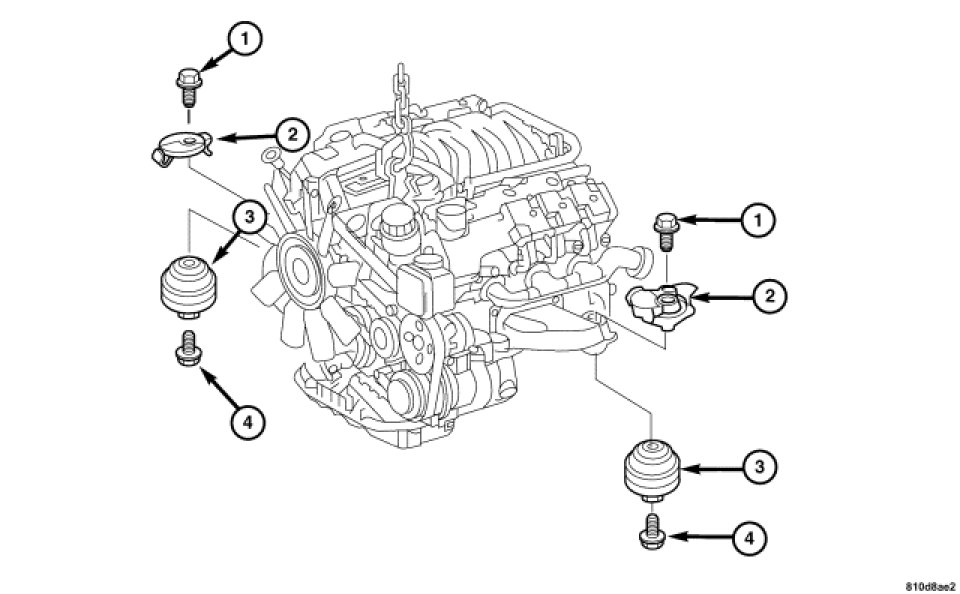

1. Position the engine mount (3) on the crossmember.
2. Install the engine mount lower bolt (4). Tighten the bolt to 35 Nm (26 ft. lbs.).

NOTE: The recesses of the heat shield must be located in the anti twist slots of the engine bracket.

3. Lower the engine onto the engine mount. Install the heat shield (2) and the engine mount upper bolt (1).
4. Tighten the engine mount upper bolt (1) to 55 Nm (41 ft. lbs.).




5. Install the lower splash shield and screws (1). Tighten to 7 Nm (5 ft. lbs.).
6. Lower the vehicle.
7. Remove the engine support frame from the engine.
8. Install the air cleaner housing. Air Cleaner Housing - Installation.
9. Connect the negative battery cable.
