Schematics and Diagrams







SCHEMATICS AND DIAGRAMS

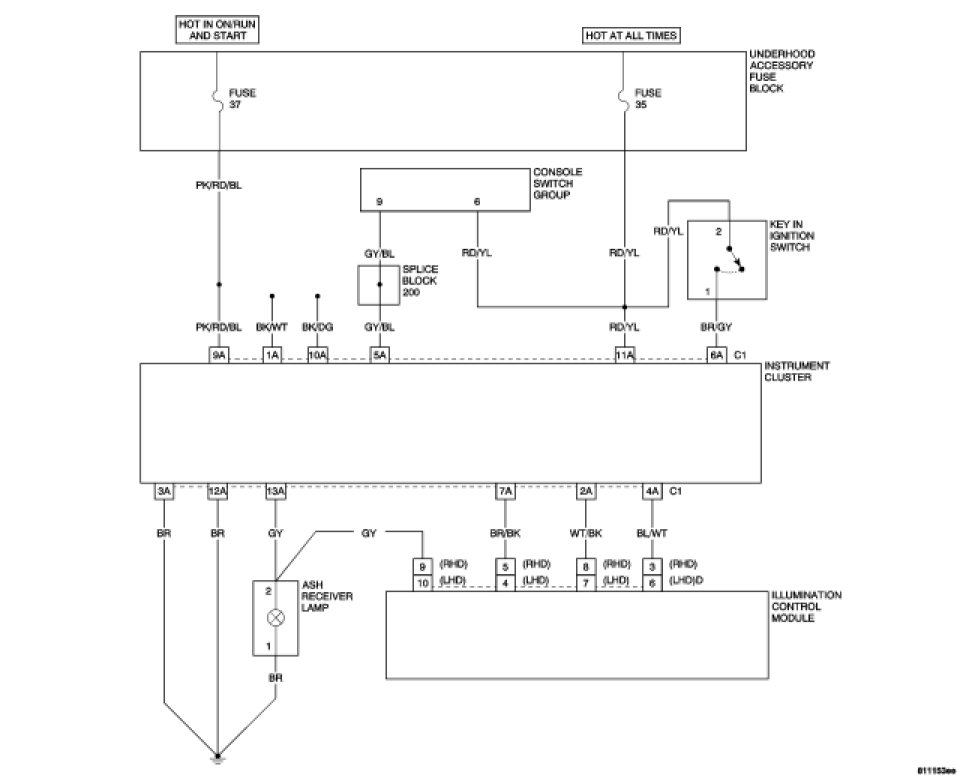

INSTRUMENT CLUSTER CIRCUIT DIAGRAM (1 OF 2)

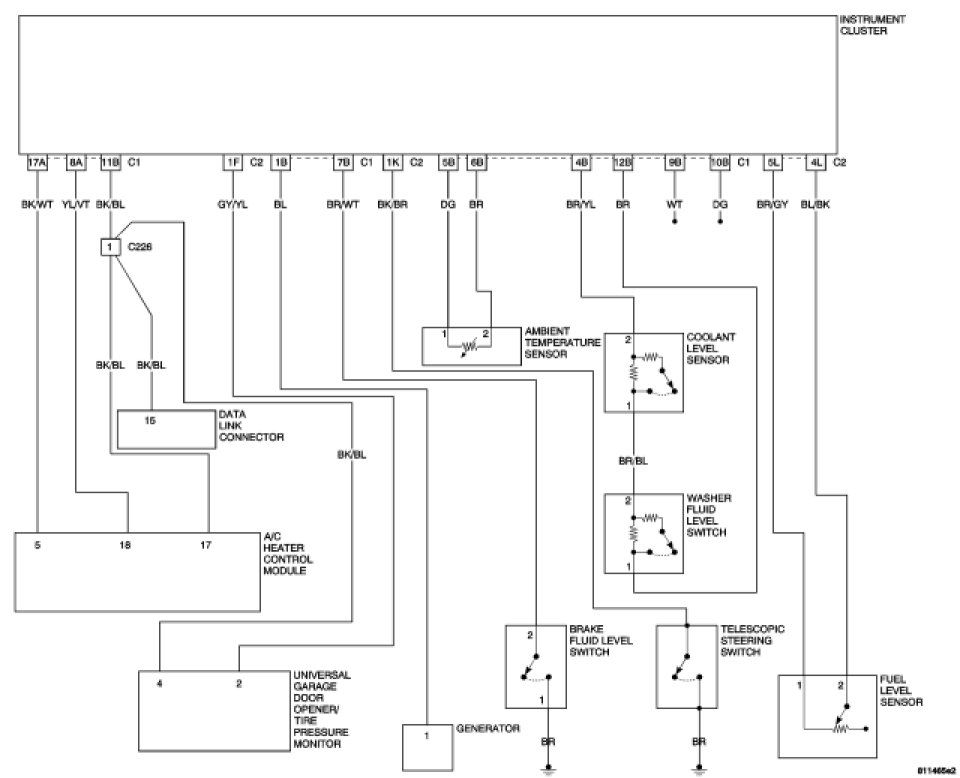

INSTRUMENT CLUSTER CIRCUIT DIAGRAM (2 OF 3)

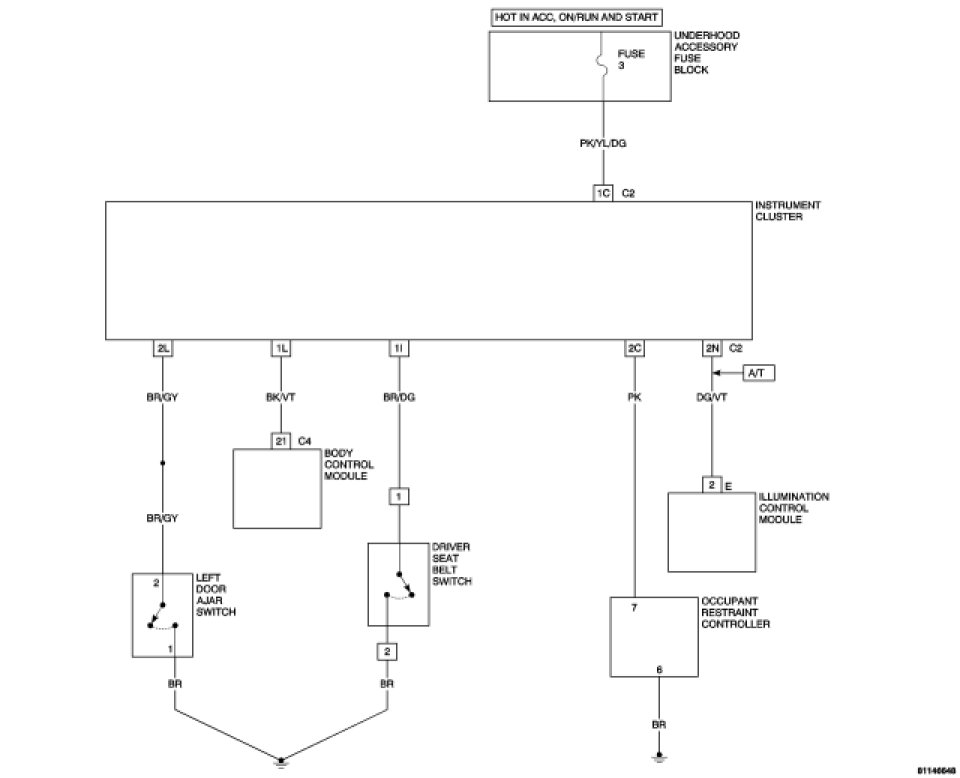

INSTRUMENT CLUSTER CIRCUIT DIAGRAM (3 OF 3)
