Body Control Systems
>>
Body - Electrical Diagnostics
Body - Electrical Diagnostics

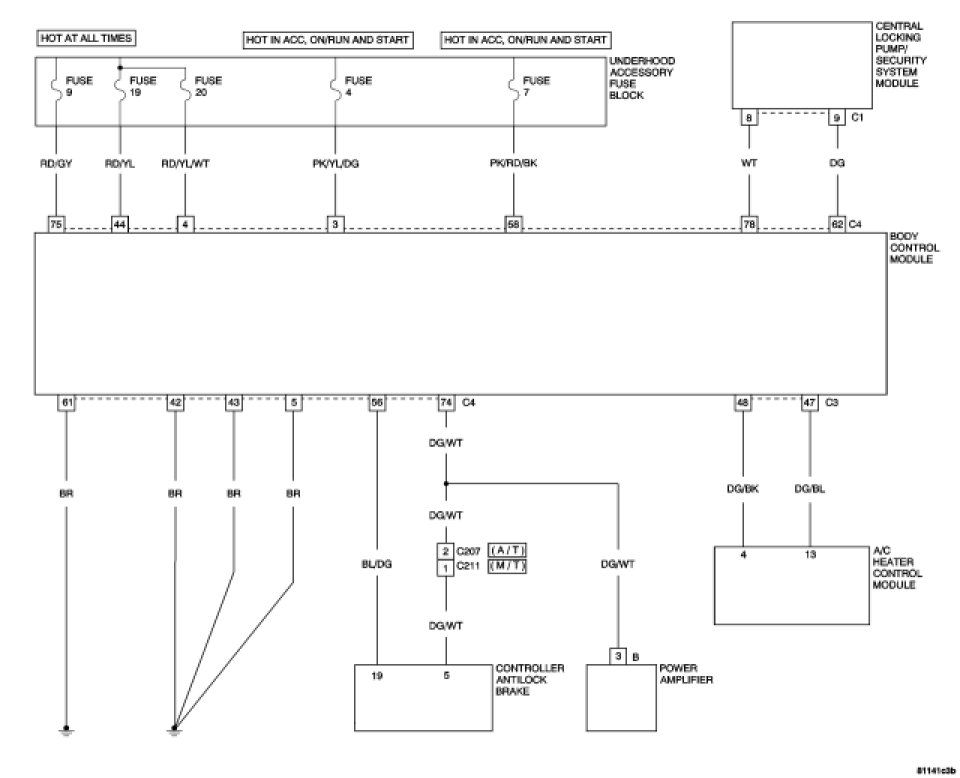

SCHEMATICS AND DIAGRAMS
