Schematics and Diagrams







SCHEMATICS AND DIAGRAMS

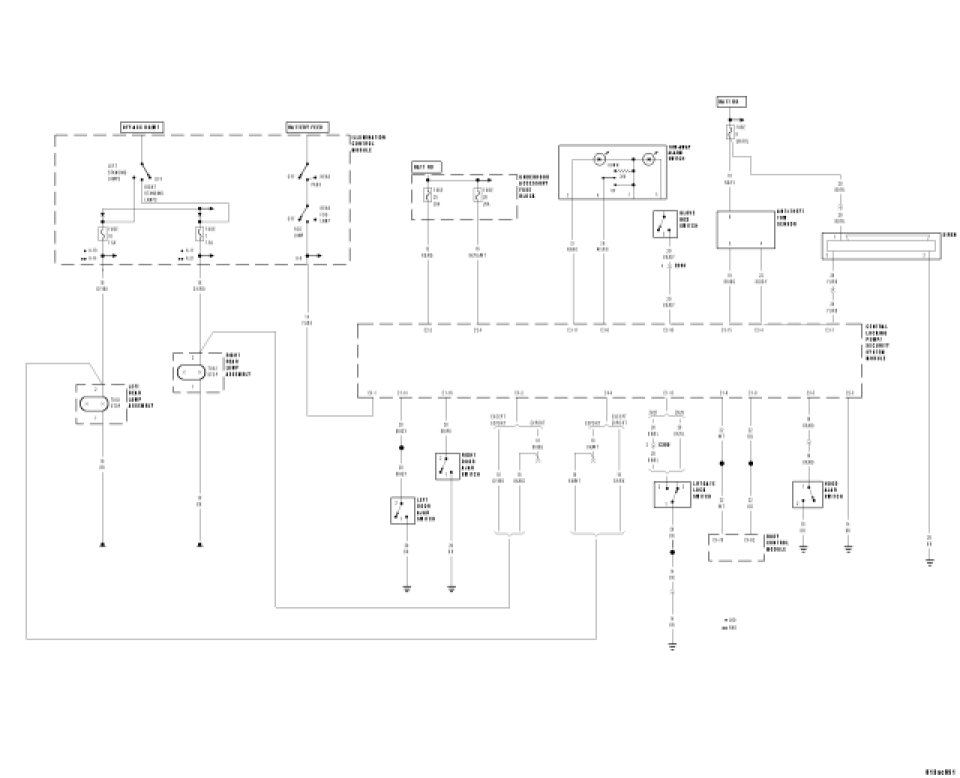

VEHICLE THEFT SECURITY SYSTEM CIRCUIT DIAGRAM

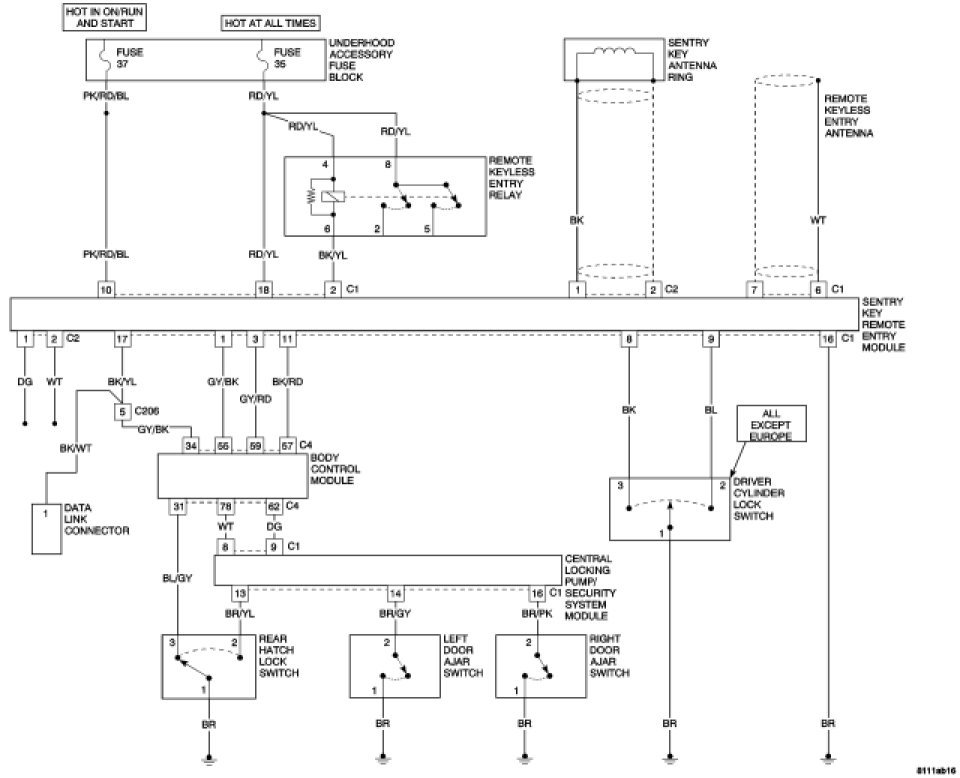

SENTRY KEY REMOTE ENTRY MODULE CIRCUIT DIAGRAM
