Brakes - ABS Electrical Diagnostics







SCHEMATICS AND DIAGRAMS

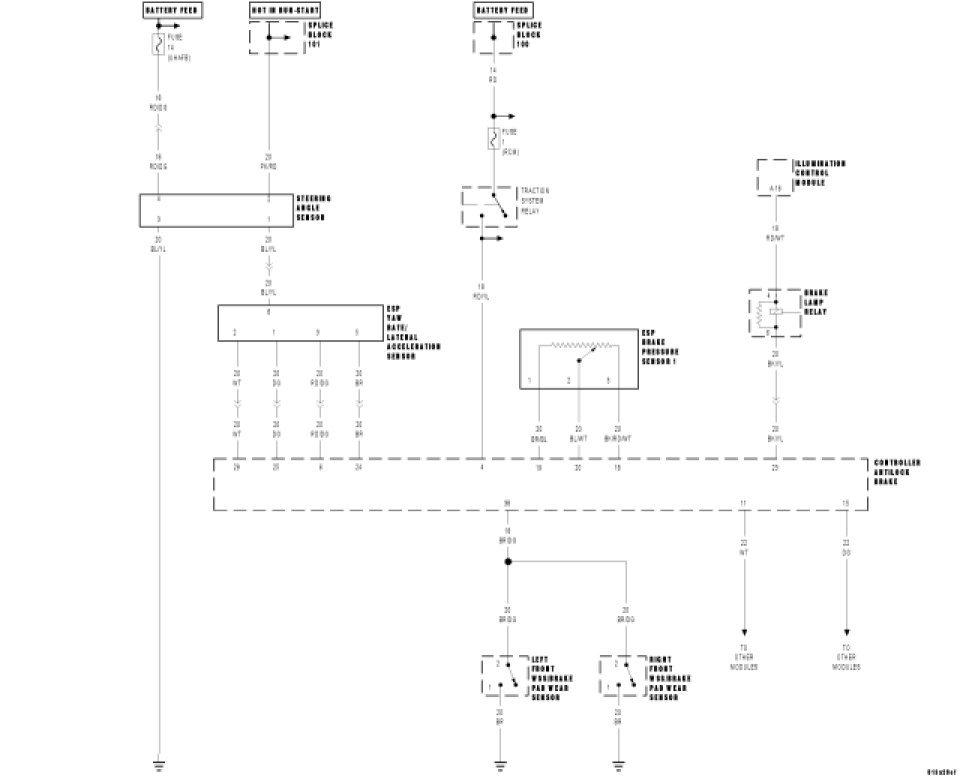

ANTILOCK BRAKE CIRCUIT DIAGRAM (1 OF 3)

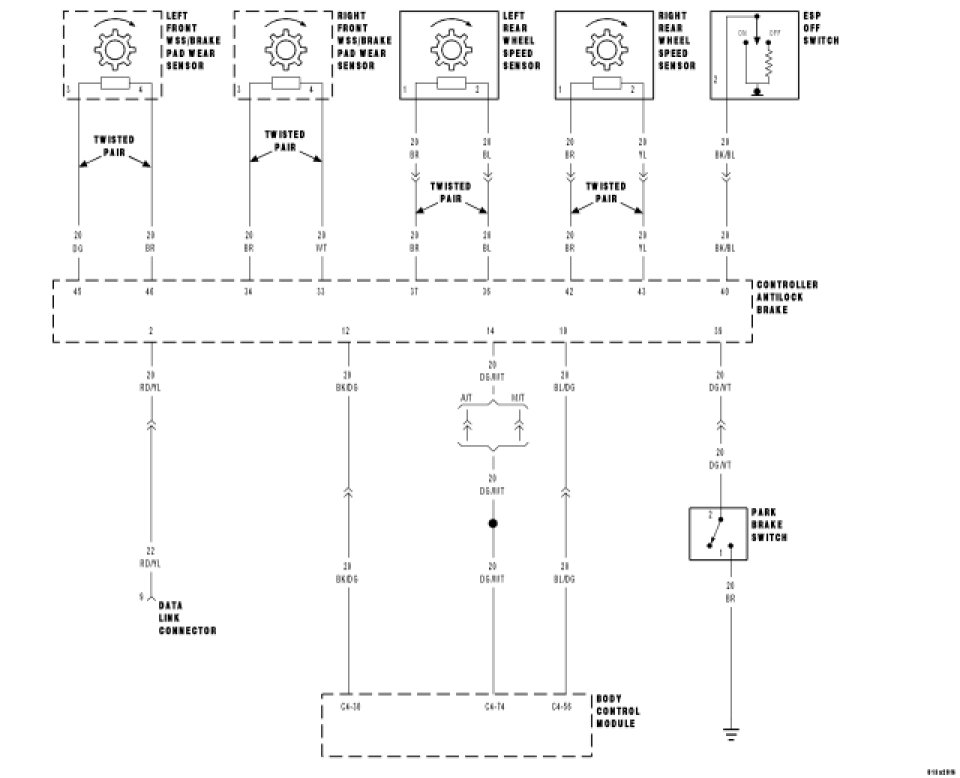

ANTILOCK BRAKE CIRCUIT DIAGRAM (2 OF 3)

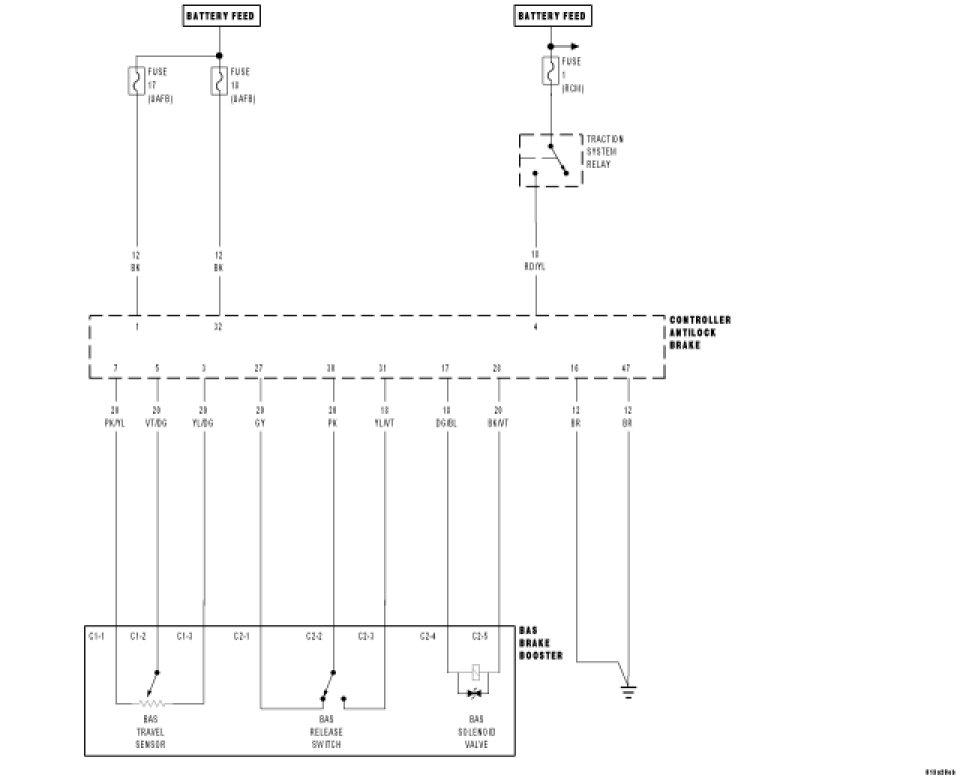

ANTILOCK BRAKE CIRCUIT DIAGRAM (3 OF 3)
