Right Door Speaker

Component ID: 248
Component : RIGHT DOOR SPEAKER

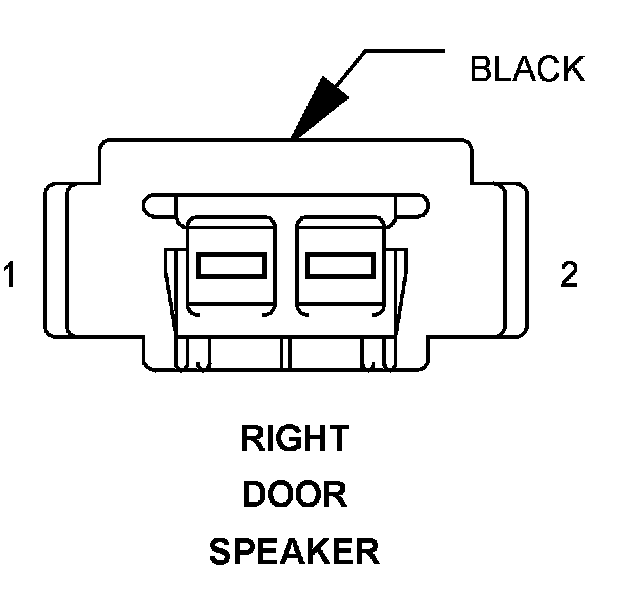

Connector:
Name : RIGHT DOOR SPEAKER
Color : BLACK
# of pins : 2




Pin Circuit Description
1 16BR/DG AMPLIFIED RIGHT DOOR SPEAKER (-)
2 16BK/BL AMPLIFIED RIGHT DOOR SPEAKER (+)

Component Location - 20
